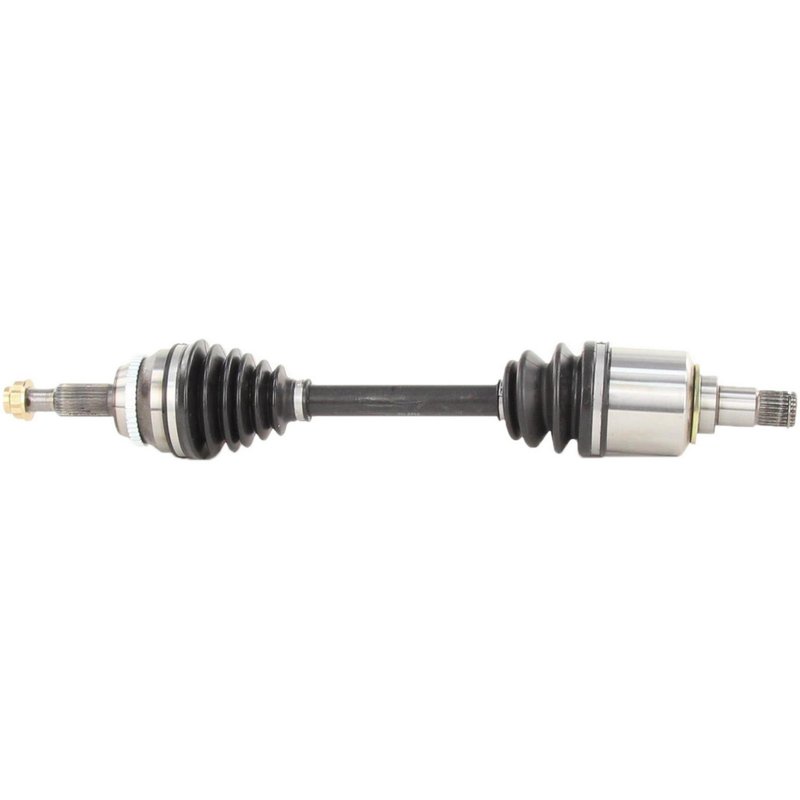

TrakMotive TO-8418 CV Axle Shaft - Front Left
| Brand | TrakMotive TO-8418 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.85 |
| Axle Nut Height (mm) | 21.5 |
| Axle Nut Hex Size (in) | 1.18 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.36 |
| Axle Nut Length (mm) | 34.64 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 24 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 25.98 |
| Overall Compressed Length (mm) | 660 |
| Product line | AAR CV Axle Shaft |
| Fits | Lexus and Toyota · 11 vehicles |
New CV axle shaft. Built with spline connections for straightforward replacement.
Neoprene boot material. Helps protect the joint from wear and contamination.
ABS tone ring included. Supports ABS-equipped applications when specified.
Cross-references TrakMotive TO-8418 for the same application. See all 1.
TrakMotive TO-8418 Front Left CV Axle Shaft
The TrakMotive AAR CV Axle Shaft TO-8418 is a new front left driveline replacement for select Lexus ES350 and Toyota Avalon applications. It is built with a neoprene boot, included axle nut, and ABS tone ring details that support direct replacement on the listed vehicles.
Key Features
- New CV axle shaft for front left installation
- Fits 2013-2018 Lexus ES350, front left
- Fits 2008-2012 Toyota Avalon, front left
- 24 inboard splines and 30 outboard splines
- Male inboard joint with spline connection
- Conventional outboard joint with spline connection
- Neoprene boot material for driveline protection
- 48-tooth toothed ABS ring with tone ring included
- Axle nut included with M22 x 1.5 thread, 30 mm hex, stake locking type
- Overall compressed length: 25.98 in. (660 mm)
Product Details
TrakMotive TO-8418 is part of the AAR CV Axle Shaft line, a product line focused on replacement axle shafts for import passenger vehicles. This axle is specified for the front left position on 2013-2018 Lexus ES350 and 2008-2012 Toyota Avalon models, making it a direct-fit option for common front driveline service needs. The design includes the ABS tone ring, axle nut, and the listed spline counts to match the original application requirements.
This part cross-references TrakMotive TO-8418 for the same application.
Common Repair Applications
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder during acceleration from axle wear
- Torn or deteriorated CV boot causing grease loss
- ABS-related concerns tied to a damaged tone ring or axle assembly
- Excessive driveline play from a fatigued front axle shaft
Installation Notes and Tips
Verify front left fitment, spline count, and axle length before installation. Confirm the axle nut thread size, hex size, and locking style match the vehicle specification. Because ABS axles fit non-ABS applications unless otherwise noted, confirm the vehicle’s brake and sensor setup before ordering. Inspect seals, hub condition, and surrounding suspension components during replacement to help prevent repeat labor.
Quality Assurance
TrakMotive states that this axle is manufactured by an ISO 9001:1007 and TS 16949:2009 certified company and is backed by a limited lifetime warranty.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2018 | Lexus | ES350 | — | Front Left | Updated Design; AAR CV Axle Shaft |
| 2017 | Lexus | ES350 | — | Front Left | Updated Design; AAR CV Axle Shaft |
| 2016 | Lexus | ES350 | — | Front Left | Updated Design; AAR CV Axle Shaft |
| 2015 | Lexus | ES350 | — | Front Left | Updated Design; AAR CV Axle Shaft |
| 2014 | Lexus | ES350 | — | Front Left | Updated Design; AAR CV Axle Shaft |
| 2013 | Lexus | ES350 | — | Front Left | Updated Design; AAR CV Axle Shaft |
| 2012 | Toyota | Avalon | FWD | Front Left | Updated Design; AAR CV Axle Shaft |
| 2011 | Toyota | Avalon | FWD | Front Left | Updated Design; AAR CV Axle Shaft |
| 2010 | Toyota | Avalon | FWD | Front Left | Updated Design; AAR CV Axle Shaft |
| 2009 | Toyota | Avalon | FWD | Front Left | Updated Design; AAR CV Axle Shaft |
| 2008 | Toyota | Avalon | FWD | Front Left | Updated Design; AAR CV Axle Shaft |
