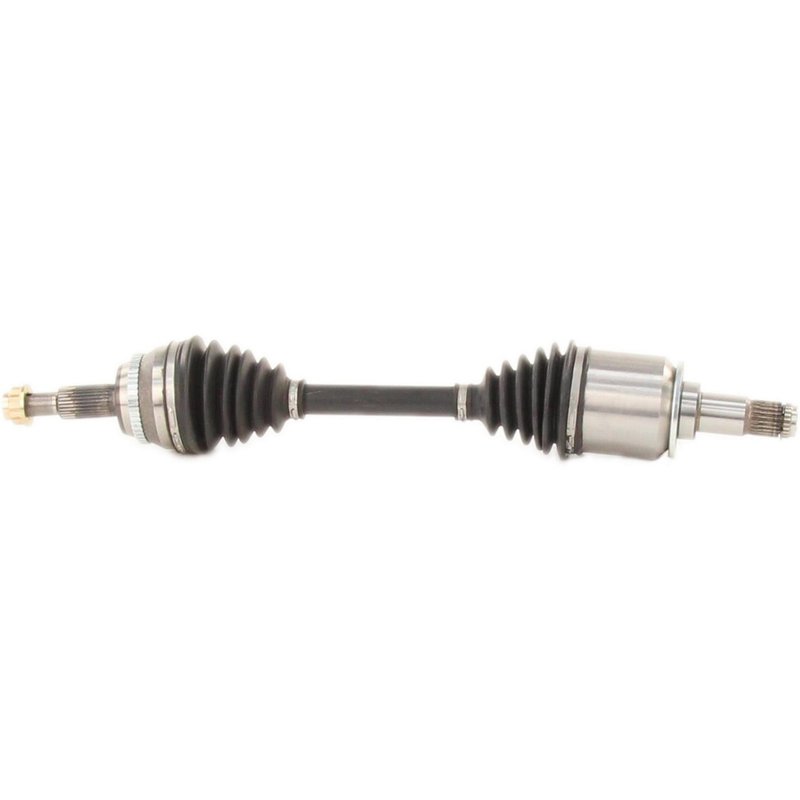

TrakMotive TO-8431 CV Axle Shaft - Front Left
| Brand | TrakMotive TO-8431 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.85 |
| Axle Nut Height (mm) | 21.5 |
| Axle Nut Hex Size (in) | 1.18 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.36 |
| Axle Nut Length (mm) | 34.64 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 24 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 26.65 |
| Overall Compressed Length (mm) | 677 |
| Product line | AAR CV Axle Shaft |
| Fits | Toyota · 3 vehicles |
New replacement shaft. Built as a new CV axle shaft for straightforward service replacement.
Neoprene boot. Durable boot material helps protect the joint from wear and contamination.
ABS tone ring included. Toothed ring is included for ABS-equipped applications.
Cross-references TrakMotive TO-8431 and NCV69195 for the same application. See all 2.
Front Left CV Axle Shaft for Toyota Highlander
TrakMotive TO-8431 is a new AAR CV axle shaft for the front left position on select 2017-2019 Toyota Highlander models. It is built with a 24-spline inboard connection, 30-spline outboard connection, and a neoprene boot for dependable driveline service.
Key Features
- Fits 2017-2019 Toyota Highlander, front left
- TrakMotive AAR CV Axle Shaft, part number TO-8431
- New axle assembly with male inboard joint and conventional outboard joint
- Includes axle nut with M22 x 1.5 thread, 30 mm hex size, and stake locking type
- ABS tone ring included with 48-tooth toothed ring
- Overall compressed length: 26.65 in. (677 mm)
- Neoprene boot material for CV joint protection
Product Details
TrakMotive TO-8431 is an AAR CV axle shaft engineered for the front left side of the Toyota Highlander. This application-specific axle uses a spline-style shaft connection at both ends, a 24-spline inboard interface, and a 30-spline outboard interface to match the listed vehicle fitment. The included ABS tone ring and 48-tooth toothed ring support vehicles equipped with ABS, while the manufacturer notes that ABS axles fit non-ABS applications unless otherwise noted. This part cross-references Monroe Shocks & Struts (e.g., NCV69195) for the same application.
Common Problems This Part Can Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder from a damaged axle shaft
- Grease leakage caused by a torn or deteriorated boot
- ABS-related driveline concerns when the tone ring is damaged or missing
- Excessive play in the front left driveline assembly
Installation Notes and Tips
Confirm the vehicle is a 2017-2019 Toyota Highlander with the updated design and VIN Z as noted in the fitment data before ordering TO-8431. Verify axle nut thread size, hex size, and locking style against the original hardware before installation. Inspect the hub, seals, and mating splines for wear, and torque fasteners to the vehicle manufacturer’s specifications during installation.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The company states that its manufacturing is certified to ISO 9001:1007 and TS 16949:2009 standards.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2019 | Toyota | Highlander | FWD | 3.5L | V6 | Front Left | Updated Design; VIN Z (5th Digit); AAR CV Axle Shaft |
| 2018 | Toyota | Highlander | FWD | 3.5L | V6 | Front Left | Updated Design; VIN Z (5th Digit); AAR CV Axle Shaft |
| 2017 | Toyota | Highlander | FWD | 3.5L | V6 | Front Left | Updated Design; VIN Z (5th Digit); AAR CV Axle Shaft |
