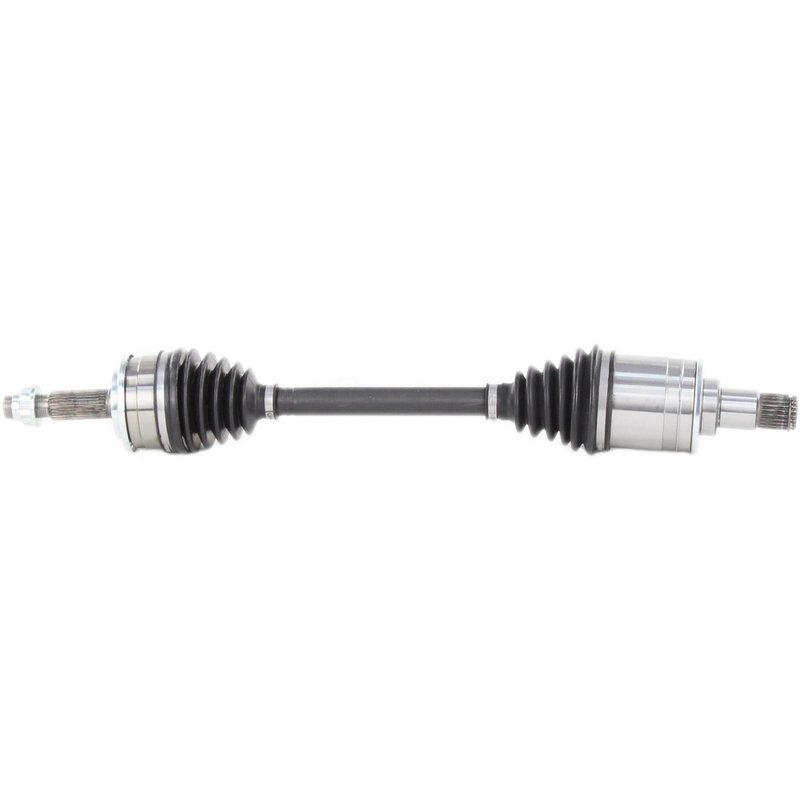

TrakMotive TO-8432 CV Axle Shaft - Front Left
| Brand | TrakMotive TO-8432 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.85 |
| Axle Nut Height (mm) | 21.5 |
| Axle Nut Hex Size (in) | 1.18 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.36 |
| Axle Nut Length (mm) | 34.64 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 24 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 26.18 |
| Overall Compressed Length (mm) | 665 |
| Product line | AAR CV Axle Shaft |
| Fits | Toyota · 19 vehicles |
New replacement shaft. Built as a new CV axle shaft for straightforward service replacement.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Spline connections. 24 inboard and 26 outboard splines for secure engagement.
Cross-references TrakMotive TO-8432 and 4342006B30 for the same application. See all 2.
Front Left CV Axle Shaft for Toyota Applications
TrakMotive TO-8432 is a new front left CV axle shaft for select North America built Toyota Camry, RAV4, and Avalon applications. It is built as an AAR CV axle shaft with a neoprene boot, spline-style shaft connections, and an included axle nut for a direct replacement service.
This TrakMotive AAR CV axle shaft line is focused on OE-style driveline replacement for Toyota front-wheel-drive applications where precise spline count, joint style, and compressed length matter. Part number TO-8432 is engineered for the listed Camry, RAV4, and Avalon fitments and is backed by ISO 9001:1007 and TS 16949:2009 certified manufacturing.
Key Features
- New CV axle shaft for the front left position
- Fits select 2018-2024 Toyota Camry, 2019-2024 Toyota RAV4, and 2021 Toyota Avalon applications
- Overall compressed length: 26.18 in. (665 mm)
- Inboard joint type: male; outboard joint type: conventional
- 24 inboard splines and 26 outboard splines
- Neoprene boot material for driveline protection
- Axle nut included; M22 x 1.5 thread, 30 mm hex size, stake locking type
- No ABS tone ring included
Detailed Description
TrakMotive TO-8432 is a front left CV axle shaft for Toyota Camry, Toyota RAV4, and Toyota Avalon models listed in the fitment data. It uses a spline connection on both ends, a male inboard joint, and a conventional outboard joint to match the specified driveline configuration. The axle nut is included, and the unit is built with a neoprene boot to help protect the CV joints from road debris and contamination.
Use TO-8432 when replacing a worn or damaged front left axle on North America built Toyota Camry and RAV4 models, including 2020-2024 Toyota Camry, 2019-2024 Toyota RAV4, and 2021 Toyota Avalon applications. This part cross-references 4342006B30 for the same application.
What This CV Axle Can Address
- Clicking or popping during turns caused by worn CV joints
- Vibration under acceleration from a damaged axle shaft
- Grease leakage from a torn or deteriorated boot
- Noise from excessive play in the front left driveline assembly
- Replacement needs after axle shaft wear or joint failure
Installation Notes and Tips
- Verify the vehicle is North America built before ordering.
- Confirm front left position, spline count, and axle nut thread size before installation.
- Inspect the hub, seals, and surrounding suspension components during replacement.
- Use the included axle nut and follow the vehicle service procedure for staking and torque.
- Check whether the vehicle is equipped with torque vectoring differential on 2020 RAV4 applications.
Quality Assurance
TrakMotive manufactures this AAR CV axle shaft in an ISO 9001:1007 and TS 16949:2009 certified facility. TO-8432 is a new replacement part and is covered by a limited lifetime warranty.
| Year | Make | Model | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2024 | Toyota | Camry | — | — | 2.5L | L4 | Front Left | North America Built; AAR CV Axle Shaft |
| 2024 | Toyota | RAV4 | — | — | — | — | Front Left | North America Built; AAR CV Axle Shaft |
| 2023 | Toyota | Camry | — | — | 2.5L | L4 | Front Left | North America Built; AAR CV Axle Shaft |
| 2023 | Toyota | RAV4 | — | — | — | — | Front Left | North America Built; AAR CV Axle Shaft |
| 2022 | Toyota | Camry | — | — | 2.5L | L4 | Front Left | North America Built; AAR CV Axle Shaft |
| 2022 | Toyota | RAV4 | — | — | — | — | Front Left | North America Built; AAR CV Axle Shaft |
| 2021 | Toyota | Avalon | — | — | 2.5L | L4 | Front Left | North America Built; AAR CV Axle Shaft |
| 2021 | Toyota | Camry | — | — | 2.5L | L4 | Front Left | North America Built; AAR CV Axle Shaft |
| 2021 | Toyota | RAV4 | — | — | — | — | Front Left | North America Built; AAR CV Axle Shaft |
| 2020 | Toyota | Camry | FWD | Automatic | 2.5L | L4 | Front Left | N. AMERICAN BUILT; AAR CV Axle Shaft |
| 2020 | Toyota | Camry | AWD | Automatic | 2.5L | L4 | Front Left | N. AMERICAN BUILT; AAR CV Axle Shaft |
| 2020 | Toyota | RAV4 | FWD | — | — | — | Front Left | N. AMERICAN BUILT; AAR CV Axle Shaft |
| 2020 | Toyota | RAV4 | AWD | — | — | — | Front Left | w/ Torque Vectoring Differential; N. AMERICAN BUILT; AAR CV Axle Shaft |
| 2020 | Toyota | RAV4 | AWD | — | — | — | Front Left | w/o Torque Vectoring Differential; N. AMERICAN BUILT; AAR CV Axle Shaft |
| 2019 | Toyota | Camry | — | — | 2.5L | L4 | Front Left | Updated Design; N. AMERICAN BUILT; AAR CV Axle Shaft |
| 2019 | Toyota | RAV4 | FWD | — | — | — | Front Left | VIN 1 (5th digit); N. AMERICAN BUILT; AAR CV Axle Shaft |
| 2019 | Toyota | RAV4 | AWD | — | — | — | Front Left | VIN 1 (5th digit); w/ Torque Vectoring Differential; N. AMERICAN BUILT; AAR CV Axle Shaft |
| 2019 | Toyota | RAV4 | AWD | — | — | — | Front Left | VIN 1 (5th digit); w/o Torque Vectoring Differential; N. AMERICAN BUILT; AAR CV Axle Shaft |
| 2018 | Toyota | Camry | — | — | 2.5L | L4 | Front Left | Updated Design; N. AMERICAN BUILT; AAR CV Axle Shaft |
