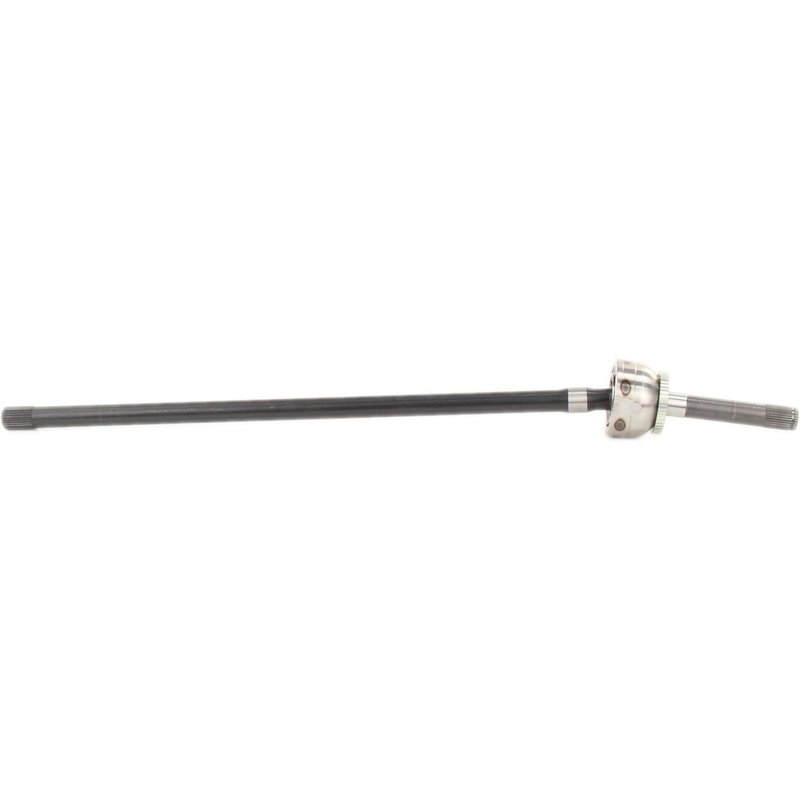

TrakMotive TO-8446 CV Axle Shaft - Front Left
| Brand | TrakMotive TO-8446 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Included | No |
| Boot Material | Neoprene |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 30 |
| Number Of Outboard Splines | 30 |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 42.17 |
| Overall Compressed Length (mm) | 1071 |
| Product line | CV Axle Shaft |
| Fits | Lexus and Toyota · 8 vehicles |
New replacement part. Built as a new CV axle shaft for straightforward service replacement.
Neoprene boot material. Helps resist wear while keeping the joint protected.
ABS tone ring included. Ready for applications that use a toothed ABS ring.
Cross-references TrakMotive TO-8446, 4340560070 and 4341260070 for the same application. See all 4.
Front Left CV Axle Shaft for Land Cruiser and LX450
TrakMotive TO-8446 is a new front left CV axle shaft for select Toyota Land Cruiser and Lexus LX450 applications. It is built with 30 inboard splines, 30 outboard splines, a neoprene boot, and a 48-tooth toothed ABS tone ring included for the listed fitments.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: TO-8446
- Front left position
- New axle shaft construction
- 30-spline inboard and 30-spline outboard connection
- Neoprene boot material
- ABS tone ring included, 48-tooth toothed ring
- Overall compressed length: 42.17 in. (1071 mm)
- Axle nut not included
Product Details
This TrakMotive CV axle shaft is a direct driveline replacement for 1993-1997 Toyota Land Cruiser front left applications and 1996-1997 Lexus LX450 front left applications. The TO-8446 uses spline-style inner and outer connections and is supplied as a new unit, making it a practical choice when restoring front-wheel drive performance, correcting axle noise, or replacing a worn CV assembly on these vehicles. TrakMotive’s CV Axle Shaft line focuses on application-specific driveline components, and this part cross-references OE numbers 4340560070 and 4341260070 for the same application.
What It Helps Fix
- Clicking or popping from a worn front CV joint
- Vibration during acceleration
- Grease leakage from a damaged axle boot
- ABS warning concerns related to a failed tone ring assembly
- Excessive play or noise from a fatigued front left axle shaft
Installation Notes and Tips
Verify spline count, compressed length, and ABS tone ring configuration before installation. This axle is listed for front left use on the specified Toyota Land Cruiser and Lexus LX450 applications, including 1995 Land Cruiser builds noted as from 1/95 and thru 12/94. The axle nut is not included, so confirm the correct retaining hardware is on hand before service. Always inspect related seals, hub components, and suspension parts during axle replacement.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The company is ISO 9001:1007 and TS 16949:2009 certified, supporting consistent manufacturing and quality control processes.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1997 | Lexus | LX450 | Front Left | CV Axle Shaft |
| 1997 | Toyota | Land Cruiser | Front Left | CV Axle Shaft |
| 1996 | Lexus | LX450 | Front Left | CV Axle Shaft |
| 1996 | Toyota | Land Cruiser | Front Left | CV Axle Shaft |
| 1995 | Toyota | Land Cruiser | Front Left | From 1/95; CV Axle Shaft |
| 1995 | Toyota | Land Cruiser | Front Left | Thru 12/94; CV Axle Shaft |
| 1994 | Toyota | Land Cruiser | Front Left | CV Axle Shaft |
| 1993 | Toyota | Land Cruiser | Front Left | CV Axle Shaft |
