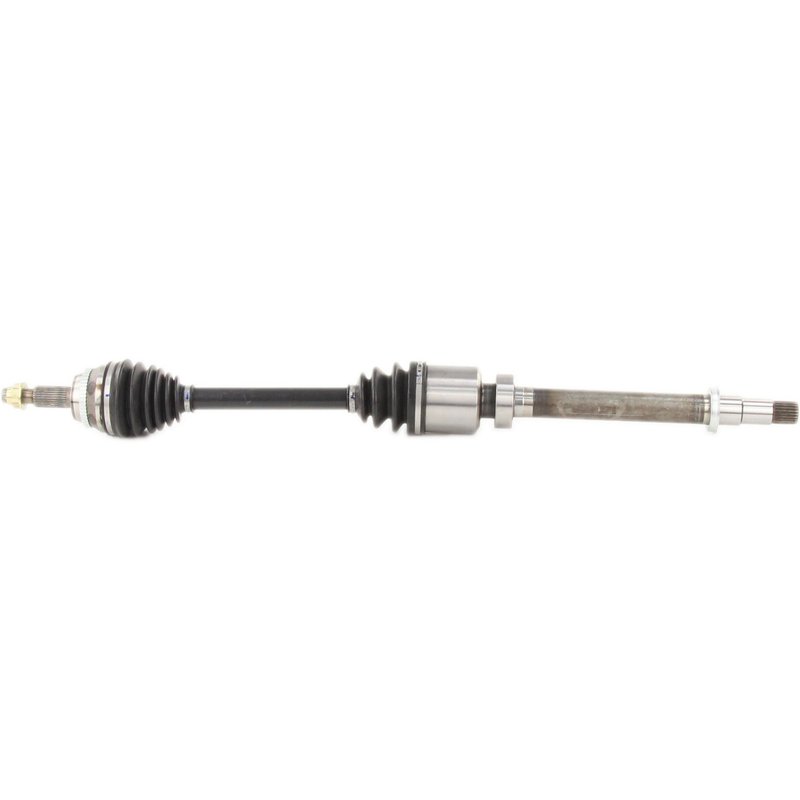

TrakMotive TO-8447 CV Axle Shaft - Front Right

Overview of TrakMotive AAR CV Axle Shaft TO-8447

The TrakMotive AAR CV Axle Shaft TO-8447 is engineered for Toyota Highlander models requiring reliable driveline components. This new CV axle shaft is designed to meet precise specifications, ensuring proper fit and function for your vehicle's front-wheel or all-wheel drive system.

• Compatible with Toyota Highlander vehicles
• Includes ABS tone ring with 48 toothed abs ring teeth
• Neoprene boot material for enhanced durability
• Comes with a hex head axle nut (M22*1.5 thread size) included
• Overall compressed length of 39.8 inches (1011 mm)
• Inboard joint type: male with 24 splines
• Outboard joint type: conventional with 30 splines
• Axle nut locking type: stake for secure installation

About the AAR CV Axle Shaft Product Line

The AAR CV Axle Shaft line by TrakMotive focuses on delivering new, high-quality CV axle shafts designed to meet OEM standards. This product line emphasizes precise fitment and durability, featuring components such as ABS tone rings and neoprene boots to maintain optimal driveline performance. The TO-8447 model exemplifies these qualities, tailored specifically for Toyota Highlander applications.

Detailed Product Description

The TrakMotive AAR CV Axle Shaft TO-8447 is a new replacement part designed to restore driveline integrity in compatible Toyota Highlander vehicles. It features a neoprene boot that resists wear and environmental damage, protecting the CV joint from contaminants. The axle shaft includes a toothed ABS tone ring with 48 teeth, which is essential for accurate wheel speed sensor readings. The inboard joint is a male spline type with 24 splines, while the outboard joint is a conventional spline with 30 splines, ensuring proper connection to the vehicle’s drivetrain. The included hex head axle nut (M22*1.5 thread size) measures 0.85 inches in height and 1.18 inches across the flats, with a stake locking mechanism to prevent loosening during operation. The overall compressed length of 39.8 inches (1011 mm) matches OEM specifications for a direct fit.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Toyota Highlander
• Resolves issues with clicking or popping noises during turns
• Addresses vibration or shuddering caused by axle shaft wear
• Restores proper ABS sensor function with included tone ring
• Fixes grease leaks from torn or damaged CV boots

Installation Notes and Tips

• Ensure compatibility with your Toyota Highlander model year before installation
• Use proper torque specifications for the M22*1.5 axle nut with stake locking
• Inspect surrounding suspension and drivetrain components during replacement
• Verify ABS sensor operation after installation due to included tone ring
• Professional installation is recommended for safety and performance

Quality Assurance and Warranty

The TrakMotive AAR CV Axle Shaft TO-8447 is a new, remanufactured-free component designed to meet or exceed OEM standards. It includes a neoprene boot and ABS tone ring to ensure long-lasting performance. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to support reliable operation in Toyota Highlander vehicles.
