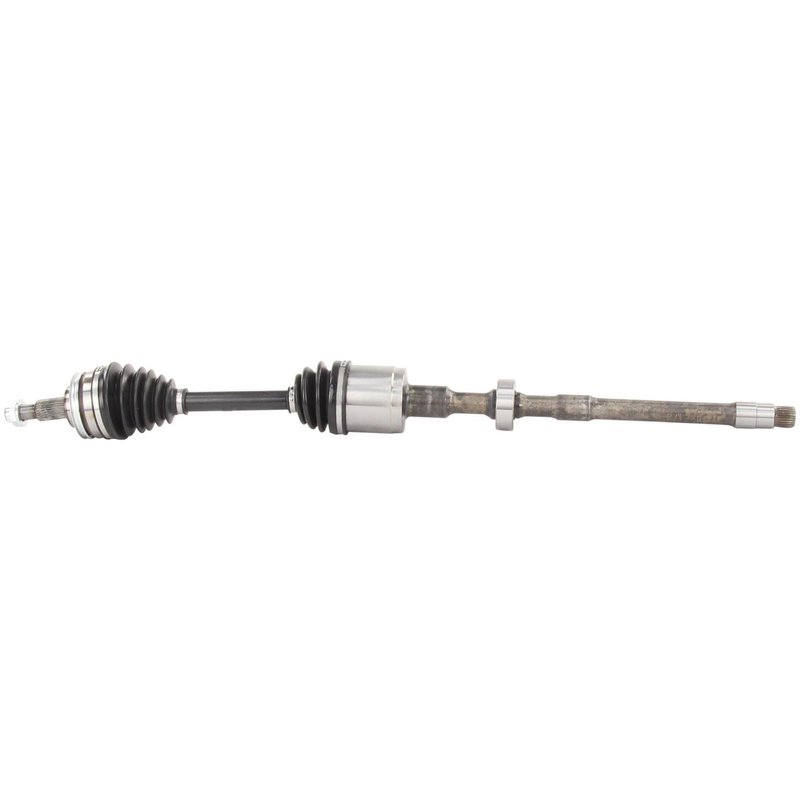

TrakMotive TO-8455 CV Axle Shaft - Front Right
| Brand | TrakMotive TO-8455 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.85 |
| Axle Nut Height (mm) | 21.5 |
| Axle Nut Hex Size (in) | 1.19 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.36 |
| Axle Nut Length (mm) | 34.64 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | long+Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 40.06 |
| Overall Compressed Length (mm) | 1017 |
| Product line | AAR CV Axle Shaft |
| Fits | Lexus · 23 vehicles |
New replacement shaft. Built as a direct-fit CV axle shaft for straightforward service.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Includes axle nut. Conveniently supplied with the hardware needed for installation.
Cross-references TrakMotive TO-8455, 4341050011 and 4341050012 for the same application. See all 5.
TrakMotive TO-8455 Front Right CV Axle Shaft
TrakMotive TO-8455 is a new front right CV axle shaft for select Lexus LS460 and Lexus LS600h applications. It is built with a neoprene boot, spline-style shaft connections, and includes the axle nut for the listed application.
Key Features
- Front right CV axle shaft for Lexus LS460 and Lexus LS600h
- New replacement part, not remanufactured
- Neoprene boot material for driveline protection
- 27 inboard splines and 30 outboard splines
- Conventional outboard joint design
- Includes axle nut with M22 x 1.5 thread, 30 mm hex size, and stake locking type
- Overall compressed length: 40.06 in (1017 mm)
- No ABS tone ring included
Product Details
This TrakMotive AAR CV Axle Shaft line is built for direct replacement use in front right driveline service. Part number TO-8455 is listed for 2009-2017 Lexus LS460, front right, and 2008-2016 Lexus LS600h, front right, with updated design notes for the AAR CV axle shaft application. The axle uses spline connections at both ends, a long male inboard joint type, and a conventional outboard joint type to match the specified vehicle fitment.
This part cross-references OE-style numbers 4341050011 and 4341050012 for the same application.
What It Helps Address
- Clicking or popping during turns from a worn CV joint
- Vibration under acceleration from a damaged axle shaft
- Grease leakage from a torn or deteriorated boot
- Noise from excessive driveline play
- Front right axle failure on Lexus LS460 and Lexus LS600h models
Installation Notes and Tips
- Verify front right fitment against the vehicle year and model before installation.
- Confirm axle nut thread size, hex size, and locking style match the original hardware specification.
- Inspect hub, bearing, and transmission-side seals for wear before installing the new axle.
- Torque fasteners to the vehicle manufacturer’s specifications.
Quality Assurance
TrakMotive lists this AAR CV axle shaft as a new part and notes ISO 9001:1007 and TS 16949:2009 certification. The manufacturer also states a limited lifetime warranty.
| Year | Make | Model | Submodel | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2017 | Lexus | LS460 | L | AWD | Front Right | Updated Design; AAR CV Axle Shaft |
| 2017 | Lexus | LS460 | Base | AWD | Front Right | Updated Design; AAR CV Axle Shaft |
| 2016 | Lexus | LS460 | L | AWD | Front Right | Updated Design; AAR CV Axle Shaft |
| 2016 | Lexus | LS460 | Base | AWD | Front Right | Updated Design; AAR CV Axle Shaft |
| 2016 | Lexus | LS600h | — | AWD | Front Right | Updated Design; AAR CV Axle Shaft |
| 2015 | Lexus | LS460 | L | AWD | Front Right | Updated Design; AAR CV Axle Shaft |
| 2015 | Lexus | LS460 | Base | AWD | Front Right | Updated Design; AAR CV Axle Shaft |
| 2015 | Lexus | LS600h | — | AWD | Front Right | Updated Design; AAR CV Axle Shaft |
| 2014 | Lexus | LS460 | L | AWD | Front Right | Updated Design; AAR CV Axle Shaft |
| 2014 | Lexus | LS460 | Base | AWD | Front Right | Updated Design; AAR CV Axle Shaft |
| 2014 | Lexus | LS600h | — | AWD | Front Right | Updated Design; AAR CV Axle Shaft |
| 2013 | Lexus | LS460 | L | AWD | Front Right | Updated Design; AAR CV Axle Shaft |
| 2013 | Lexus | LS460 | Base | AWD | Front Right | Updated Design; AAR CV Axle Shaft |
| 2013 | Lexus | LS600h | — | AWD | Front Right | Updated Design; AAR CV Axle Shaft |
| 2012 | Lexus | LS460 | — | AWD | Front Right | Updated Design; AAR CV Axle Shaft |
| 2012 | Lexus | LS600h | — | AWD | Front Right | Updated Design; AAR CV Axle Shaft |
| 2011 | Lexus | LS460 | — | AWD | Front Right | Updated Design; AAR CV Axle Shaft |
| 2011 | Lexus | LS600h | — | AWD | Front Right | Updated Design; AAR CV Axle Shaft |
| 2010 | Lexus | LS460 | — | AWD | Front Right | Updated Design; AAR CV Axle Shaft |
| 2010 | Lexus | LS600h | — | AWD | Front Right | Updated Design; AAR CV Axle Shaft |
| 2009 | Lexus | LS460 | — | AWD | Front Right | Updated Design; AAR CV Axle Shaft |
| 2009 | Lexus | LS600h | — | AWD | Front Right | Updated Design; AAR CV Axle Shaft |
| 2008 | Lexus | LS600h | — | AWD | Front Right | Updated Design; AAR CV Axle Shaft |
