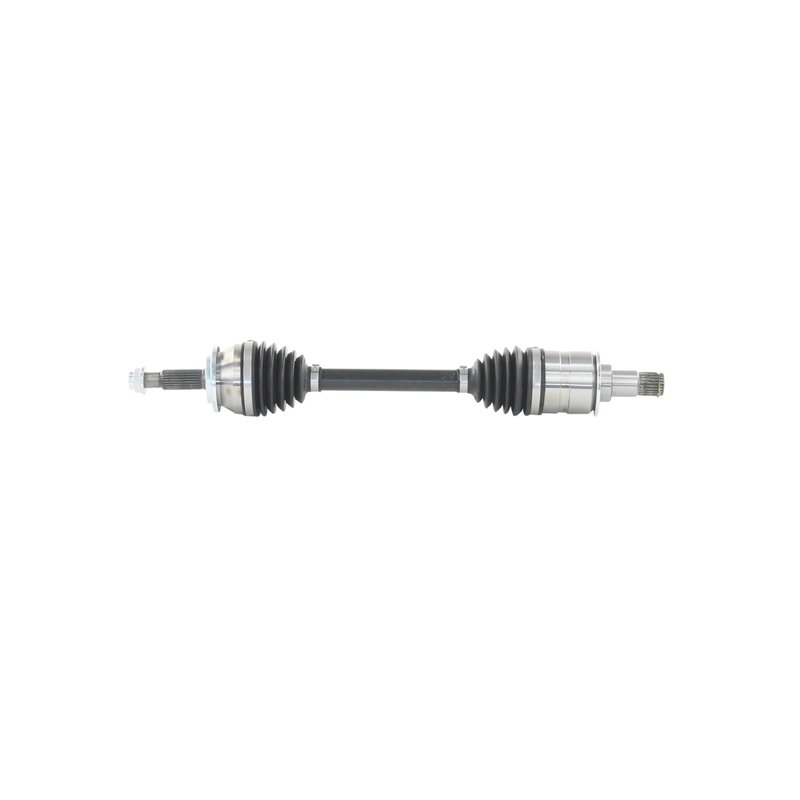

TrakMotive TO-86011 CV Axle Shaft - Front Left
| Brand | TrakMotive TO-86011 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 24 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 26 |
| Overall Compressed Length (mm) | 661 |
| Overall Extended Length (in) | 28.06 |
| Overall Extended Length (mm) | 713 |
| Product line | AAR CV Axle Shaft |
| Fits | Toyota · 14 vehicles |
Premium grade. Built as a CV axle shaft for dependable driveline replacement.
Conventional joint design. Delivers straightforward operation with a male inboard joint.
ABS-ready fit. Works in non-ABS applications when no ABS tone ring is needed.
Cross-references TrakMotive TO-86011 for the same application. See all 1.
TrakMotive TO-86011 Front Left CV Axle Shaft
The TrakMotive TO-86011 AAR CV Axle Shaft is a premium driveline replacement for select Toyota front-left applications. It is built for Japan-built Camry, RAV4, and Avalon models that require a direct-fit CV axle with the correct spline counts and compressed/extended length.
Key Features
- Front left CV axle shaft for select Toyota applications
- Premium grade construction for driveline service and replacement
- Inboard male joint design with 24 splines
- Outboard conventional joint design with 26 splines
- Overall compressed length: 26 in. (661 mm)
- Overall extended length: 28.06 in. (713 mm)
- Axle nut thread size: M22x1.5
- Axle nut hex/socket size: 32 mm
- ABS tone ring not included; ABS ring tooth count: 0
Detailed Description
TrakMotive TO-86011 is an AAR CV axle shaft engineered for front-left service on Japan-built Toyota Camry, Toyota RAV4, and Toyota Avalon models listed below. The axle uses a male inboard joint, a conventional outboard joint, 24 inboard splines, and 26 outboard splines to match the specified driveline configuration. This part number is a direct reference for TO-86011 and is intended for applications that do not require an ABS tone ring.
The TrakMotive AAR CV Axle Shaft line focuses on application-specific fitment and OE-style replacement geometry. For buyers searching for a Toyota Camry front left CV axle shaft, Toyota RAV4 front left axle replacement, or Toyota Avalon CV axle shaft for Japan-built vehicles, TO-86011 provides the listed dimensions and spline counts needed for proper fitment.
This part cross-references TrakMotive TO-86011 for the same application.
What It Helps Fix
- Clicking or popping from a worn outer CV joint
- Vibration during acceleration caused by axle wear
- Grease leakage from a damaged CV boot or joint
- Excessive driveline play from worn splines or joints
- Front-left axle failure on the listed Toyota applications
Installation Notes and Tips
- Verify the vehicle is Japan-built before ordering.
- Confirm front-left position, spline counts, and axle length against the original shaft.
- Check axle nut thread size M22x1.5 and 32 mm hex/socket size during service planning.
- ABS axles fit non-ABS applications unless otherwise noted; this axle does not include an ABS tone ring.
- Inspect related seals, hubs, and suspension components before installation.
Quality Assurance
TrakMotive states that this AAR CV axle shaft is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:2008 and TS 16949:2009 certification, supporting controlled production and quality management for driveline components.
Vehicle Fitment
- Fits 2018-2024 Toyota Camry, front left, Japan Built; AAR CV Axle Shaft
- Fits 2019-2024 Toyota RAV4, front left, Japan Built; AAR CV Axle Shaft
- Fits 2021 Toyota Avalon, front left, Japan Built; AAR CV Axle Shaft
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2024 | Toyota | Camry | — | 2.5L | L4 | Front Left | Japan Built; AAR CV Axle Shaft |
| 2024 | Toyota | RAV4 | — | — | — | Front Left | Japan Built; AAR CV Axle Shaft |
| 2023 | Toyota | Camry | — | 2.5L | L4 | Front Left | Japan Built; AAR CV Axle Shaft |
| 2023 | Toyota | RAV4 | — | — | — | Front Left | Japan Built; AAR CV Axle Shaft |
| 2022 | Toyota | Camry | — | 2.5L | L4 | Front Left | Japan Built; AAR CV Axle Shaft |
| 2022 | Toyota | RAV4 | — | — | — | Front Left | Japan Built; AAR CV Axle Shaft |
| 2021 | Toyota | Avalon | — | 2.5L | L4 | Front Left | Japan Built; AAR CV Axle Shaft |
| 2021 | Toyota | Camry | — | 2.5L | L4 | Front Left | Japan Built; AAR CV Axle Shaft |
| 2021 | Toyota | RAV4 | — | — | — | Front Left | Japan Built; AAR CV Axle Shaft |
| 2020 | Toyota | Camry | — | 2.5L | L4 | Front Left | Japan Built; AAR CV Axle Shaft |
| 2020 | Toyota | RAV4 | — | — | — | Front Left | Japan Built; AAR CV Axle Shaft |
| 2019 | Toyota | Camry | — | 2.5L | L4 | Front Left | Japan Built; AAR CV Axle Shaft |
| 2019 | Toyota | RAV4 | AWD | — | — | Front Left | Japan Built; AAR CV Axle Shaft |
| 2018 | Toyota | Camry | — | 2.5L | L4 | Front Left | Japan Built; AAR CV Axle Shaft |
