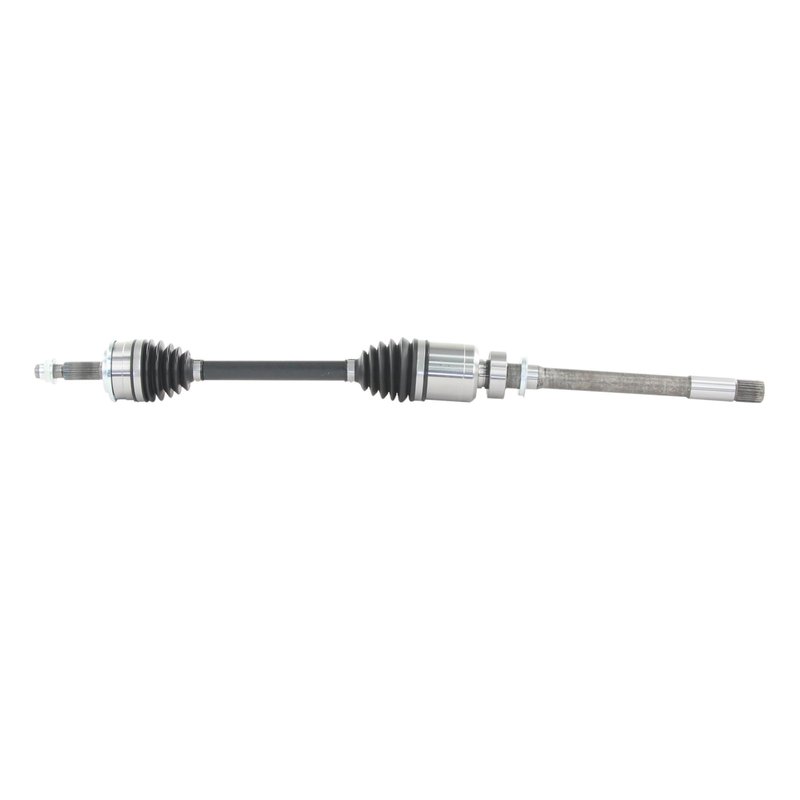

TrakMotive TO-86017 CV Axle Shaft - Front Right

Front Right CV Axle Shaft for Toyota RAV4

The TrakMotive AAR CV Axle Shaft TO-86017 is a front right replacement axle for select 2019-2022 Toyota RAV4 models built for North America. It is built as a premium driveline component with the spline counts and dimensions needed for a direct-fit service replacement.

The AAR CV Axle Shaft line is positioned for application-specific coverage and OE-style fitment. For this Toyota RAV4 front right application, TO-86017 is engineered with a long-male inboard joint, a conventional outboard joint, and no ABS tone ring included.

Key Features

• Fits 2019-2022 Toyota RAV4, front right
• TrakMotive part number TO-86017
• Premium grade CV axle shaft
• Inboard joint type: long-male
• Outboard joint type: conventional
• 24 inboard splines and 26 outboard splines
• No ABS tone ring included; ABS ring tooth count: 0
• Overall compressed length: 994 mm (39.13 in)
• Overall extended length: 1050 mm (41.31 in)
• Axle nut thread size: M22x1.5
• Axle nut hex size/socket size: 32 mm

Detailed Description

TO-86017 is a front right CV axle shaft for the 2019-2022 Toyota RAV4, North America built. It is specified with a 24-spline inboard end and a 26-spline outboard end, along with the listed compressed and extended lengths for proper driveline geometry. The axle is intended for non-ABS applications unless otherwise noted, and this listing does not include an ABS tone ring.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Repair Uses

• Restores a worn or noisy front right CV axle on a Toyota RAV4
• Addresses clicking during turns caused by CV joint wear
• Replaces an axle with torn boots, grease loss, or joint play
• Helps correct vibration or driveline shudder from axle wear
• Supports service replacement after axle damage or contamination

Installation Notes and Tips

Verify the vehicle is a North America built 2019-2022 Toyota RAV4, front right, before ordering. Confirm axle nut thread size, hex size, and spline counts against the original part before installation. Inspect seals, hub condition, and surrounding suspension components during service to help ensure a proper repair.

Quality Assurance

TrakMotive identifies this AAR CV Axle Shaft as a premium replacement component and states that the brand is ISO 9001:2008 and TS 16949:2009 certified. Manufacturer coverage includes a limited lifetime warranty.
