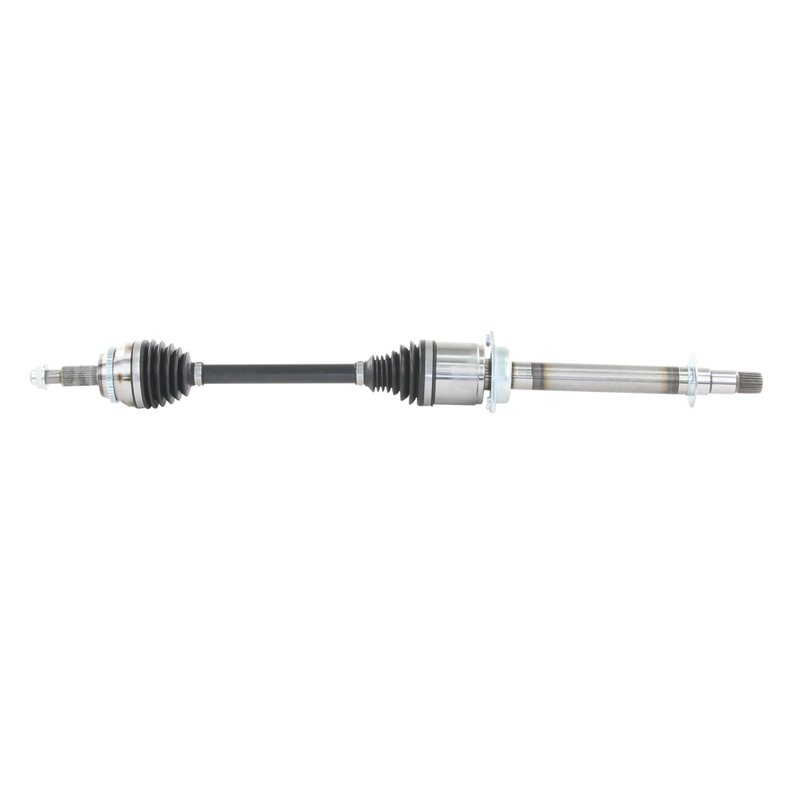

TrakMotive TO-86020 CV Axle Shaft - Front Right

Front Right CV Axle for Highlander

TrakMotive TO-86020 is a premium CV axle shaft for the front right position on select 2017-2019 Toyota Highlander models with VIN Z in the 5th digit. It is built for direct driveline replacement where a 39.31-inch compressed length, 24 inboard splines, and 30 outboard splines are required.

The AAR CV Axle Shaft line focuses on application-specific fitment for import driveline service. This TO-86020 axle is a non-ABS design with no tone ring included, and it uses thermoplastic boots on both joints for consistent protection in everyday road conditions.

Key Features

• Fits 2017-2019 Toyota Highlander, front right
• TrakMotive AAR CV Axle Shaft, part number TO-86020
• Premium grade replacement axle shaft
• Long-male inboard joint type
• Conventional outboard joint type
• 24 inboard splines and 30 outboard splines
• Thermoplastic inboard and outboard joint boots
• Non-ABS axle design with no ABS tone ring included
• Axle nut thread size M22x1.5, 32 mm hex size, 20 mm nut height

Detailed Description

TO-86020 is a front right CV axle shaft for 2017-2019 Toyota Highlander applications with VIN Z in the 5th digit. It is engineered as a direct driveline replacement for vehicles that require the listed spline counts, axle dimensions, and non-ABS configuration. The 998 mm overall compressed length supports proper axle positioning in the suspension and driveline assembly.

As part of TrakMotive’s AAR CV Axle Shaft line, this component is built for application-specific coverage in Asian vehicle driveline service. If you are searching for a Toyota Highlander front right CV axle shaft, TO-86020 provides the fitment and construction details needed for a correct replacement.

This part cross-references NCV69251 for the same application.

What It Helps Address

• Clicking or popping during turns caused by worn CV joints
• Vibration from a damaged or imbalanced axle shaft
• Grease leakage from torn or deteriorated axle boots
• Driveline noise from spline wear or joint wear
• Loss of smooth power transfer to the front right wheel

Installation Notes and Tips

Confirm VIN Z in the 5th digit before ordering, since this axle is listed for that Highlander configuration. Verify axle nut thread size, hex size, and overall compressed length against the original part before installation. Inspect the hub, seals, and surrounding suspension components for wear that could affect axle life.

Quality Assurance

TrakMotive lists this axle under its AAR CV Axle Shaft line and states that the company is ISO 9001:2008 and TS 16949:2009 certified. Manufacturer information also notes a limited lifetime warranty.
