OE Quality
60-Day Returns
TrakMotivePart #: TO-86021

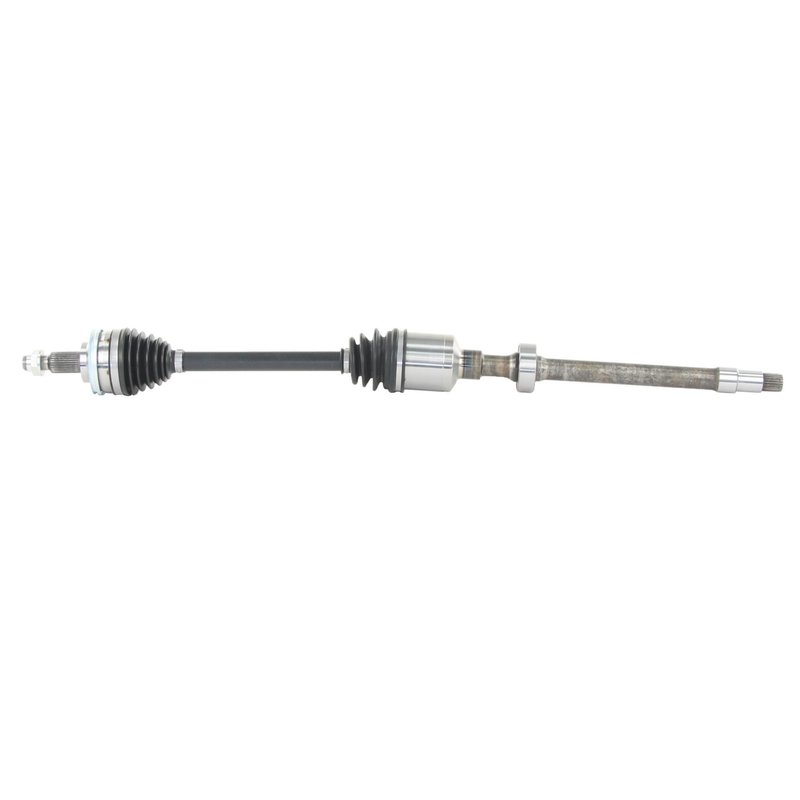

TrakMotive TO-86021 CV Axle Shaft - Front Right
16 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$142.34Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
AAR CV Axle Shaft, Front Right
Fitment: Lexus, GS350, RC300, and RC350
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all CV Axle Shaft options
TrakMotive TO-86021 CV Axle Shaft - Front Right
| Brand | TrakMotive |
|---|---|
| Part Number | TO-86021 |
| Position | AAR CV Axle Shaft, Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .81 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Long-male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 23 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 39.19 |
| Overall Compressed Length (mm) | 995 |
| Overall Extended Length (in) | 41.31 |
This part fits 16 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2019 | Lexus | GS350 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2019 | Lexus | RC300 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2019 | Lexus | RC350 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2018 | Lexus | GS350 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2018 | Lexus | RC300 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2018 | Lexus | RC350 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2017 | Lexus | GS350 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2017 | Lexus | RC300 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2017 | Lexus | RC350 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2016 | Lexus | GS350 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2016 | Lexus | RC300 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2016 | Lexus | RC350 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2015 | Lexus | GS350 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2015 | Lexus | RC350 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2014 | Lexus | GS350 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2013 | Lexus | GS350 | Front Right | OE AAR design; AAR CV Axle Shaft |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
NCV69096TO-86021
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
