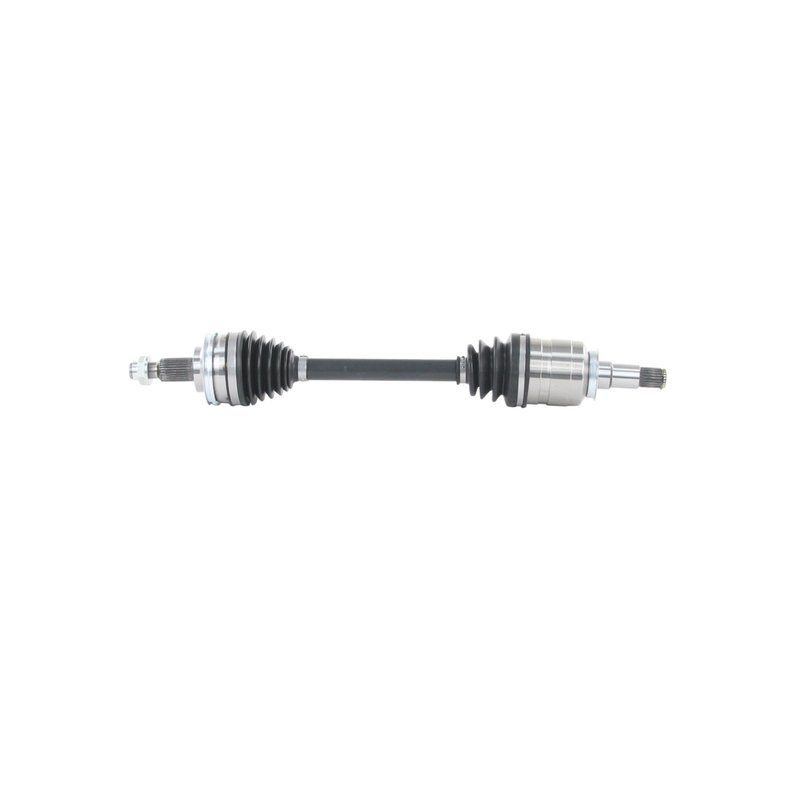

TrakMotive TO-86022 CV Axle Shaft - Front Left
| Brand | TrakMotive TO-86022 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .81 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 23 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 24.25 |
| Overall Compressed Length (mm) | 616 |
| Overall Extended Length (in) | 26.44 |
| Product line | AAR CV Axle Shaft |
| Fits | Lexus · 16 vehicles |
OE-style replacement. AAR CV axle shaft for straightforward service and dependable fit.
Premium grade. Built with neoprene and thermoplastic boots for durable joint protection.
Spline connection. 23- and 30-spline ends help deliver secure power transfer.
Cross-references TrakMotive TO-86022 and NCV69100 for the same application. See all 2.
OE-Style Front Left CV Axle for Lexus
TrakMotive TO-86022 is a premium CV axle shaft built for front left applications on select Lexus models with OE AAR design. It is engineered with the correct spline counts, axle nut specifications, and joint materials to match the original driveline layout on the vehicle.
Compatible with 2013-2019 Lexus GS350, 2016-2019 Lexus RC300, and 2015-2019 Lexus RC350, this TrakMotive AAR CV Axle Shaft supports direct replacement service for the front left side. The TO-86022 part number is also referenced for the same application under cross-reference number NCV69100.
Key Features
- Front left CV axle shaft for OE AAR design applications
- Premium-grade construction for driveline replacement service
- 23 inboard splines and 30 outboard splines
- Male inboard joint with spline connection style
- Conventional outboard joint design
- Neoprene inboard boot material and thermoplastic outboard boot material
- Includes axle nut with M22x1.5 thread, 32 mm hex size, and stake locking type
- No ABS tone ring included; ABS ring tooth count is 0
Product Details
The TrakMotive AAR CV Axle Shaft TO-86022 is built for front left driveline replacement on Lexus GS350, RC300, and RC350 applications that use the OE AAR axle design. It measures 24.25 inches compressed and 26.44 inches extended, with the correct spline and nut specifications to match the original fitment profile. TrakMotive positions this axle shaft within its AAR CV Axle Shaft line for OE-style service on select Lexus platforms.
Common Problems This Part Can Address
- Clicking or popping from a worn CV joint during turns
- Vibration or shudder from a damaged axle shaft
- Torn axle boots that have allowed grease loss
- Excessive driveline play from spline or joint wear
- Noise from a failing front left axle assembly
Installation Notes
- Verify vehicle fitment by year, model, and front left position before installation.
- Confirm axle nut thread size, hex size, and locking style match the original hardware specification.
- Inspect hub, bearing, and transmission-side interfaces for wear before installing the new axle.
- Follow factory torque procedures and service manual steps during replacement.
Quality Assurance
TrakMotive states this axle shaft is backed by a limited lifetime warranty and produced by an ISO 9001:2008 and TS 16949:2009 certified company. The TO-86022 is built for OE-style replacement service on the specified Lexus front left applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2019 | Lexus | GS350 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2019 | Lexus | RC300 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2019 | Lexus | RC350 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2018 | Lexus | GS350 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2018 | Lexus | RC300 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2018 | Lexus | RC350 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2017 | Lexus | GS350 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2017 | Lexus | RC300 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2017 | Lexus | RC350 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2016 | Lexus | GS350 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2016 | Lexus | RC300 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2016 | Lexus | RC350 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2015 | Lexus | GS350 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2015 | Lexus | RC350 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2014 | Lexus | GS350 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2013 | Lexus | GS350 | Front Left | OE AAR design; AAR CV Axle Shaft |
