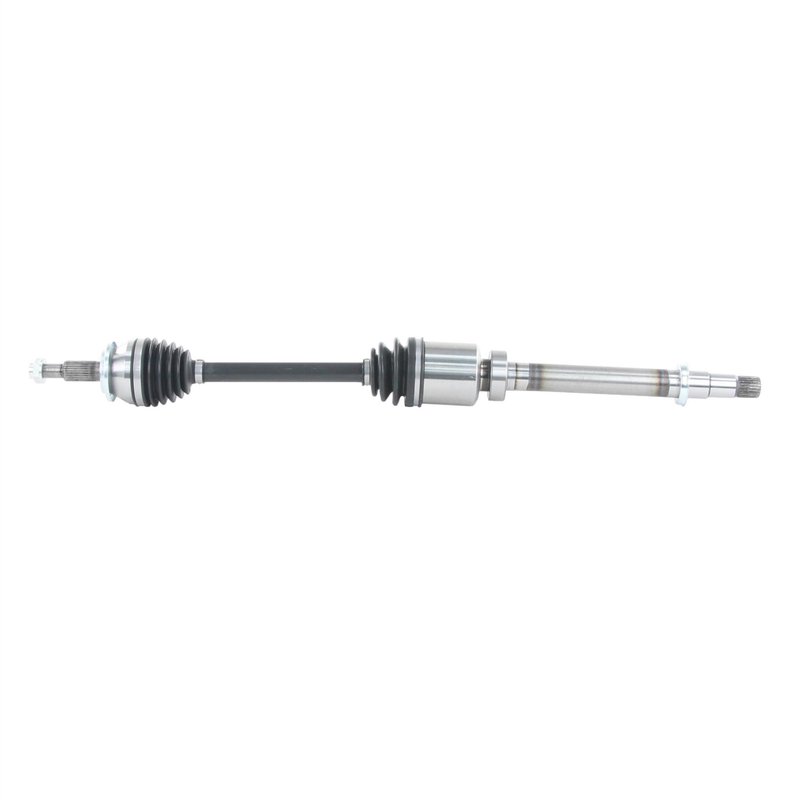

TrakMotive TO-86023 CV Axle Shaft - Front Right

OE AAR Front Right CV Axle Shaft

TrakMotive TO-86023 is a premium CV axle shaft for the front right position on select Lexus NX applications with OE AAR design. It is built for direct driveline replacement on 2015-2019 Lexus NX200t, NX300, and NX300h models, with fitment matched to the original axle layout.

The TrakMotive AAR CV Axle Shaft line focuses on OE-style replacement geometry and application-specific fitment. For buyers searching for a Lexus NX300 front right CV axle shaft or a Lexus NX200t front right axle replacement, TO-86023 provides the correct spline counts, joint configuration, and compressed/extended length needed for the listed vehicles.

• Fits 2018-2019 Lexus NX300, front right, OE AAR design
• Fits 2015-2019 Lexus NX300h, front right, OE AAR design
• Fits 2015-2017 Lexus NX200t, front right, OE AAR design
• Premium grade CV axle shaft for driveline replacement
• Inboard joint type: long-male with 24 inboard splines
• Outboard joint type: conventional with 30 outboard splines
• Overall compressed length: 994 mm (39.13 in); extended length: 1052 mm (41.38 in)
• ABS tone ring not included; ABS ring tooth count: 0
• Axle nut thread size: M22x1.5; hex size: 32 mm

TO-86023 is a direct-fit CV axle shaft for the front right side of the Lexus NX platform where OE AAR design is specified. It uses a neoprene inboard joint boot and a thermoplastic outboard joint boot, with no axle nut included. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Replacement Uses

• Front right axle noise or vibration during acceleration
• Clicking or binding from a worn outer CV joint
• Torn CV boots with grease loss at the axle assembly
• Driveline play caused by worn splines or joint wear
• Replacement after axle damage on Lexus NX200t, NX300, or NX300h models

Installation Notes

Verify the vehicle’s OE AAR axle design, front right position, spline counts, and axle nut thread size before installation. Confirm whether the vehicle is equipped for a non-ABS axle configuration, since ABS axles fit non-ABS applications unless otherwise noted. Inspect the hub, seals, and mating components during replacement to help ensure proper axle seating and smooth operation.

Quality Assurance

TrakMotive manufactures this AAR CV axle shaft as a premium replacement part from an ISO 9001:2008 and TS 16949:2009 certified company. TO-86023 is backed by a limited lifetime warranty.
