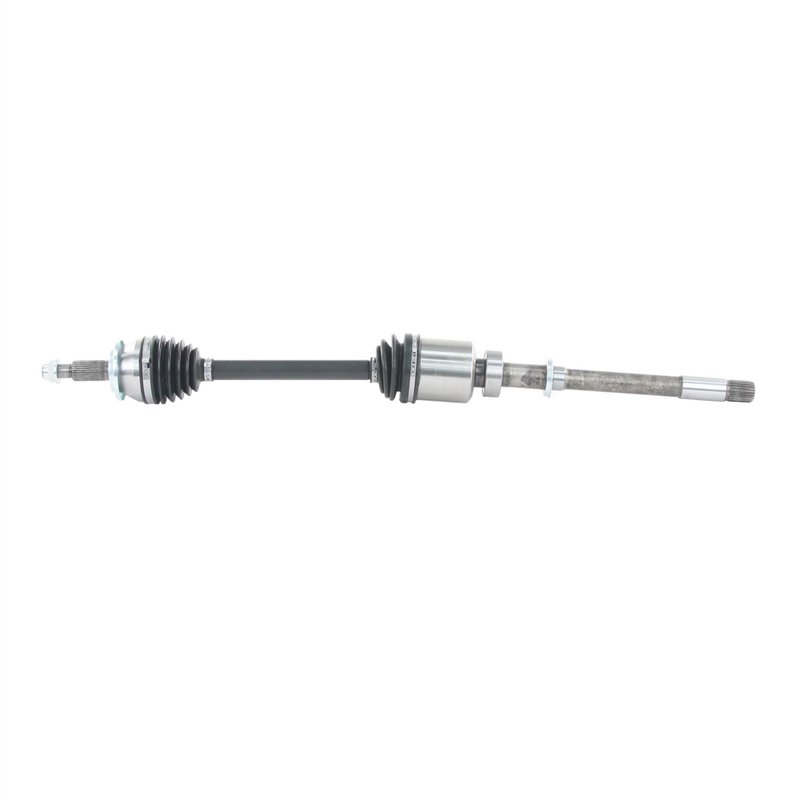

TrakMotive TO-86024 CV Axle Shaft - Front Right
| Brand | TrakMotive TO-86024 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Long-male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 24 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 31.06 |
| Overall Compressed Length (mm) | 993 |
| Overall Extended Length (in) | 41.31 |
| Overall Extended Length (mm) | 1050 |
| Product line | AAR CV Axle Shaft |
| Fits | Lexus · 5 vehicles |
OE-style replacement. AAR CV axle shaft for straightforward driveline service.
Premium grade. Built with neoprene and thermoplastic boot materials.
Certified company. Made by an ISO 9001:2008 and TS 16949:2009 certified manufacturer.
Cross-references TrakMotive TO-86024 and NCV69262 for the same application. See all 2.
Front Right CV Axle Shaft for Lexus NX300 and NX200t
TrakMotive TO-86024 is a premium CV axle shaft for the front right position on select Lexus NX models. It is built to match OE AAR design requirements for direct replacement service on 2015-2017 Lexus NX200t and 2018-2019 Lexus NX300 applications.
Key Features
- Front right CV axle shaft for select Lexus NX vehicles
- OE AAR design for the specified applications
- Premium-grade driveline replacement part
- Inboard joint type: long-male
- Inboard joint boot material: neoprene
- Outboard joint type: conventional
- Outboard joint boot material: thermoplastic
- 24 inboard splines and 30 outboard splines
- Axle nut thread size: M22x1.5
- Axle nut hex size: 32 mm
Product Details
This TrakMotive AAR CV Axle Shaft, part number TO-86024, is engineered for driveline service where the original axle has worn, clicked, or developed vibration under load. It measures 993 mm compressed and 1050 mm extended, with a 20 mm axle nut height and no ABS tone ring included. TrakMotive notes that ABS axles fit non-ABS applications unless otherwise noted, and the company manufactures to ISO 9001:2008 and TS 16949:2009 certified standards. This part cross-references Monroe Shocks & Struts (e.g., NCV69262) for the same application.
What It Helps Fix
- Clicking or popping during turns from a worn CV joint
- Vibration or shudder during acceleration
- Grease leakage from damaged axle boots
- Axle shaft wear that affects smooth power transfer
- Noise from a failing front right driveline assembly
Installation Notes
Fits 2018-2019 Lexus NX300, front right. Fits 2015-2017 Lexus NX200t, front right. Verify spline count, axle nut thread size, and overall length before installation. The axle nut is not included, so confirm the correct service hardware for the vehicle before beginning the repair. Use proper torque procedures and inspect related suspension and hub components during replacement.
Quality Assurance
TrakMotive backs this AAR CV axle shaft with a limited lifetime warranty. The brand also states ISO 9001:2008 and TS 16949:2009 certification for its manufacturing processes.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2019 | Lexus | NX300 | AWD | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2018 | Lexus | NX300 | AWD | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2017 | Lexus | NX200t | AWD | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2016 | Lexus | NX200t | AWD | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2015 | Lexus | NX200t | AWD | Front Right | OE AAR design; AAR CV Axle Shaft |
