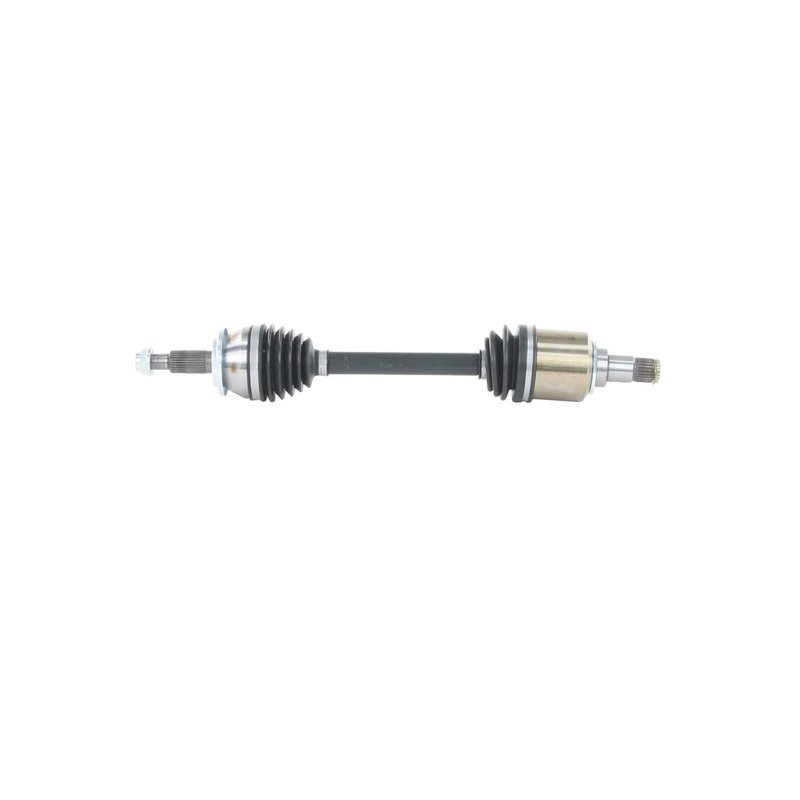

TrakMotive TO-86025 CV Axle Shaft - Front Left

Front Left CV Axle Shaft for Lexus NX300 and NX200t

TrakMotive TO-86025 is a premium CV axle shaft for front left applications on select Lexus NX models. It is built for OE AAR design fitment and uses application-specific spline counts and seal materials to support proper driveline operation.

Key Features

• Front left CV axle shaft for 2018-2019 Lexus NX300 and 2015-2017 Lexus NX200t
• OE AAR design for the listed applications
• 24 inboard splines and 30 outboard splines
• Male inboard joint with neoprene boot material
• Conventional outboard joint with thermoplastic boot material
• Axle nut thread size: M22x1.5; hex/socket size: 32 mm
• Overall compressed length: 648 mm; overall extended length: 697 mm
• ABS tone ring not included; ABS ring tooth count: 0

Product Details

TrakMotive AAR CV Axle Shaft TO-86025 is engineered for direct replacement on the front left side of select Lexus NX300 and Lexus NX200t models. The AAR CV axle shaft design follows the OE-style configuration for these vehicles, with the correct spline counts, joint types, and dimensions needed for proper installation and driveline alignment. This part cross-references Cardone New 66-5430 for the same application.

The TrakMotive AAR CV Axle Shaft line focuses on application-specific driveline replacement parts for import vehicles. For Lexus NX300 and Lexus NX200t front left service, TO-86025 provides the dimensional and connection details needed to match the original axle layout.

Common Problems This Part Can Address

• Clicking or popping noises during turns from a worn CV joint
• Vibration or shudder during acceleration caused by axle wear
• Torn or deteriorated axle boots that allow grease loss and contamination
• Excessive driveline play from a damaged axle shaft assembly
• Front left axle failure on Lexus NX300 or NX200t applications

Installation Notes and Tips

Verify front left fitment by matching the vehicle year, model, and OE AAR design before installation. Confirm axle nut thread size, hex size, spline counts, and overall length against the original part. This axle does not include an axle nut, and ABS axles fit non-ABS applications unless otherwise noted.

Quality Assurance

TrakMotive states that this axle is backed by a limited lifetime warranty. The company also notes ISO 9001:2008 and TS 16949:2009 certification, supporting controlled manufacturing and quality processes for driveline components.
