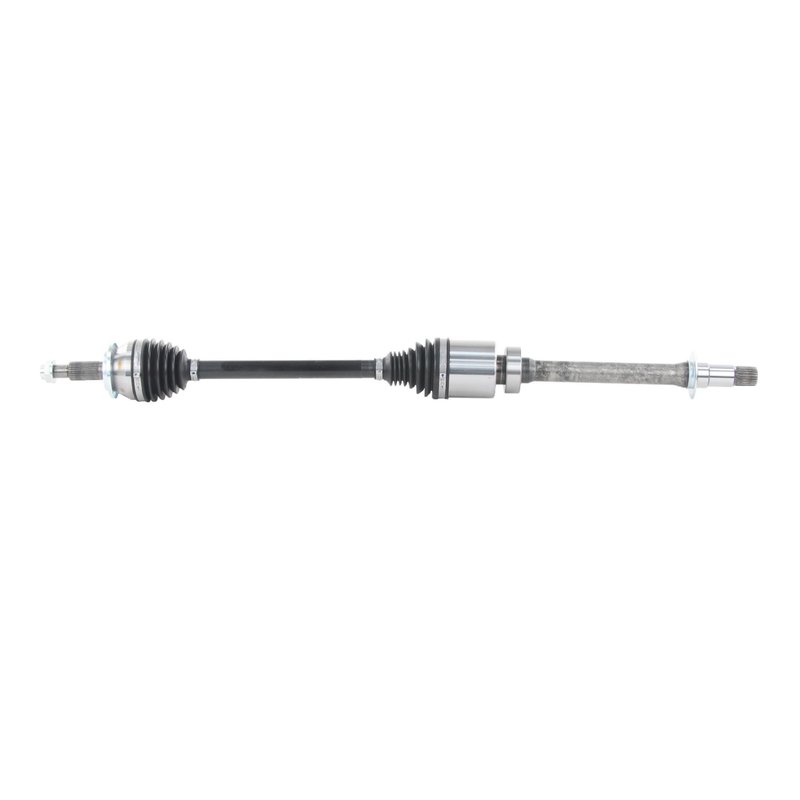

TrakMotive TO-86026 CV Axle Shaft - Front Right
| Brand | TrakMotive TO-86026 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Long-male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 24 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 41.69 |
| Overall Compressed Length (mm) | 1059 |
| Overall Extended Length (in) | 43.81 |
| Overall Extended Length (mm) | 1113 |
| Product line | AAR CV Axle Shaft |
| Fits | Toyota · 2 vehicles |
Premium grade. Built as an AAR CV axle shaft for dependable driveline replacement.
Thermoplastic boots. Help protect the joints from wear and contamination.
ISO certified. Made by a company certified to ISO 9001:2008 and TS 16949:2009.
Cross-references TrakMotive TO-86026 and NCV69233 for the same application. See all 2.
Front Right CV Axle Shaft for Toyota Sienna
TrakMotive TO-86026 is a premium CV axle shaft for the front right position on 2021-2022 Toyota Sienna models. It is built to match the OE AAR design for direct replacement service on the specified application.
Key Features
- Fits 2021-2022 Toyota Sienna, front right
- OE AAR design for the listed application
- Premium-grade CV axle shaft
- Long-male inboard joint type
- Conventional outboard joint type
- Thermoplastic boot material on inboard and outboard joints
- 24 inboard splines and 30 outboard splines
- Overall compressed length: 41.69 in (1059 mm)
- Overall extended length: 43.81 in (1113 mm)
- Axle nut thread size: M22x1.5 with 32 mm hex size
Detailed Description
TrakMotive TO-86026 is a front right CV axle shaft engineered for 2021-2022 Toyota Sienna vehicles with the OE AAR design. This axle is built with a long-male inboard joint, a conventional outboard joint, and thermoplastic boots to support consistent driveline operation in the specified front-right application. The axle uses 24 inboard splines and 30 outboard splines, with overall compressed and extended lengths that align with the listed fitment.
TrakMotive’s AAR CV Axle Shaft line focuses on direct-fit driveline replacement parts for specific vehicle applications. TO-86026 is the correct search term for buyers looking for a Toyota Sienna front right CV axle shaft, TrakMotive TO-86026, or an OE AAR design replacement for 2021-2022 Toyota Sienna.
This part cross-references Monroe Shocks & Struts (e.g., NCV69233) for the same application.
Common Problems This Part Can Address
- Clicking or popping noises during turns
- Vibration from the front driveline
- Worn or damaged CV axle splines
- Torn axle boots with grease loss
- Axle shaft wear at the front right position
Installation Notes and Tips
Verify the vehicle is a 2021-2022 Toyota Sienna with front right fitment before installation. Confirm axle nut thread size, hex size, and spline count against the original part. Inspect the hub, seals, and surrounding driveline components during replacement to help ensure proper fit and operation.
Quality Assurance
TrakMotive lists this axle with a limited lifetime warranty. The manufacturer also states ISO 9001:2008 and TS 16949:2009 certification, supporting controlled production and quality management for this CV axle shaft.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2022 | Toyota | Sienna | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2021 | Toyota | Sienna | Front Right | OE AAR design; AAR CV Axle Shaft |
