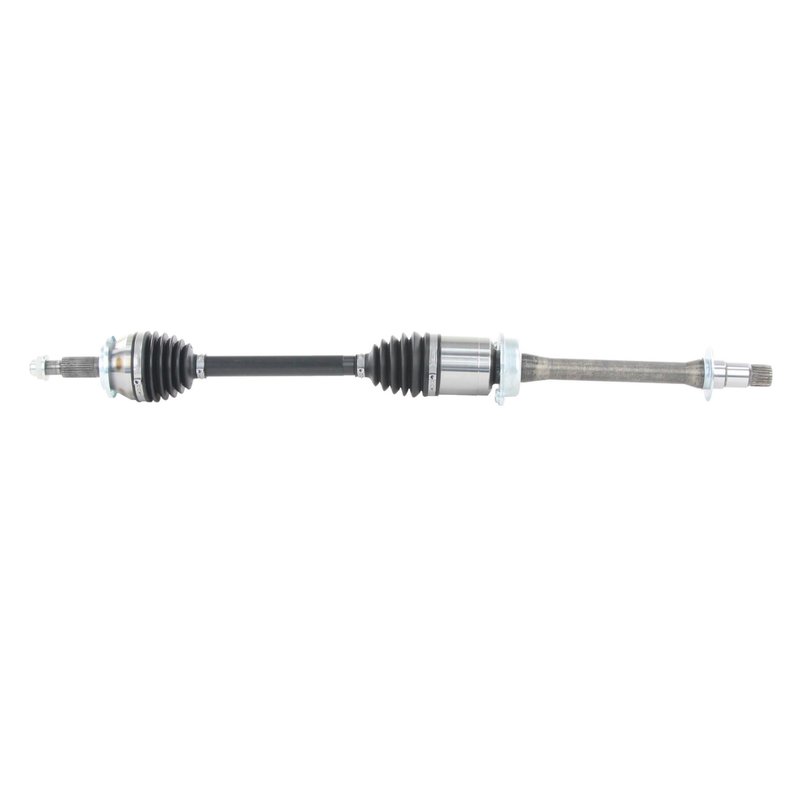

TrakMotive TO-86027 CV Axle Shaft - Front Right
| Brand | TrakMotive TO-86027 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Long-male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 24 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 38.44 |
| Overall Compressed Length (mm) | 977 |
| Overall Extended Length (in) | 40.63 |
| Overall Extended Length (mm) | 1033 |
| Product line | AAR CV Axle Shaft |
| Fits | Lexus and Toyota · 6 vehicles |
OE-style replacement. AAR CV axle shaft for straightforward driveline service.
Premium grade. Thermoplastic boots help protect the joints from wear.
Certified company. Built by an ISO 9001:2008 and TS 16949:2009 certified manufacturer.
Cross-references TrakMotive TO-86027, NCV69190 and NCV69224 for the same application. See all 3.
TrakMotive TO-86027 Front Right CV Axle Shaft
TrakMotive TO-86027 is a premium AAR CV axle shaft for front right applications on select Toyota and Lexus models. It is built for direct replacement service on 2021-2022 Toyota RAV4, 2019-2020 Toyota RAV4, and 2019-2020 Lexus ES300h applications with the listed build and drivetrain notes.
Key Features
- Premium-grade CV axle shaft for front right driveline service
- Long-male inboard joint design with conventional outboard joint
- Thermoplastic boot material on both inboard and outboard joints
- 24 inboard splines and 30 outboard splines
- Axle nut thread size: M22x1.5
- Axle nut hex size/socket size: 32 mm
- Overall compressed length: 977 mm; overall extended length: 1033 mm
- ABS ring tooth count: 0; ABS tone ring not included
Product Details
This TrakMotive AAR CV axle shaft, part number TO-86027, is engineered for front right replacement on 2021-2022 Toyota RAV4 without plug-in hybrid, 2019-2020 Toyota RAV4 Japan-built, and 2019-2020 Lexus ES300h Japan-built vehicles. The AAR CV axle shaft line focuses on application-specific driveline fitment, and this unit is configured without an ABS tone ring for non-ABS use unless otherwise noted. TrakMotive identifies the part as a premium replacement and backs it with ISO 9001:2008 and TS 16949:2009 certified manufacturing practices.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Problems This Part Can Address
- Clicking or popping from a worn front right CV joint during turns
- Vibration or shudder caused by axle wear
- Grease leakage from damaged CV boots
- Axle noise from spline or joint wear
- Loss of smooth power transfer to the front wheel
Installation Notes and Tips
Verify front right fitment by year, model, and build notes before installation. Confirm axle nut thread size, hex size, and overall length against the removed shaft to ensure proper replacement. Because this axle does not include an axle nut, reuse or source the correct hardware separately as required by the vehicle service procedure. Check spline counts and ABS configuration before assembly.
Quality Assurance
TrakMotive manufactures this CV axle shaft under ISO 9001:2008 and TS 16949:2009 certified quality systems. The TO-86027 is covered by a limited lifetime warranty.
| Year | Make | Model | Drive Type | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2022 | Toyota | RAV4 | AWD | 2.5L | L4 | FULL HYBRID EV-GAS (FHEV) | Front Right | Without Plug-in Hybrid; AAR CV Axle Shaft |
| 2021 | Toyota | RAV4 | AWD | 2.5L | L4 | FULL HYBRID EV-GAS (FHEV) | Front Right | Without Plug-in Hybrid; AAR CV Axle Shaft |
| 2020 | Lexus | ES300h | — | — | — | — | Front Right | Japan Built; AAR CV Axle Shaft |
| 2020 | Toyota | RAV4 | AWD | — | — | FULL HYBRID EV-GAS (FHEV) | Front Right | Japan Built; AAR CV Axle Shaft |
| 2019 | Lexus | ES300h | — | — | — | — | Front Right | Japan Built; AAR CV Axle Shaft |
| 2019 | Toyota | RAV4 | AWD | — | — | FULL HYBRID EV-GAS (FHEV) | Front Right | Japan Built; AAR CV Axle Shaft |
