Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

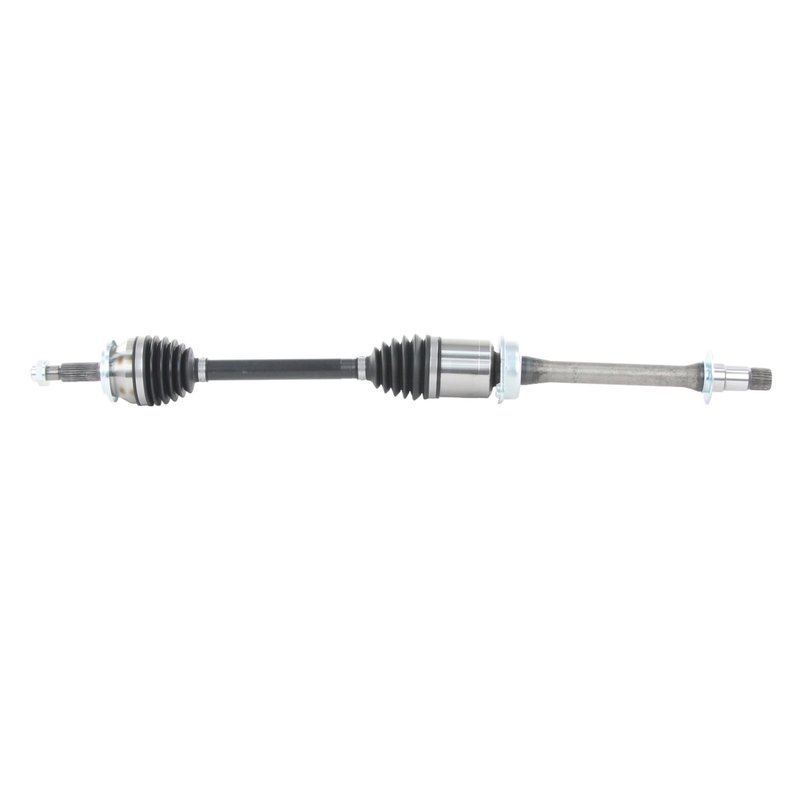

TrakMotive TO-86029 CV Axle Shaft - Front Right
| Brand | TrakMotive TO-86029 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Long-male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 24 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 38.25 |
| Overall Compressed Length (mm) | 972 |
| Overall Extended Length (in) | 40.44 |
| Overall Extended Length (mm) | 1028 |
| Product line | AAR CV Axle Shaft |
| Fits | Toyota · 2 vehicles |
OE AAR design. Built for the listed application with a direct replacement layout.
Premium-grade construction. Thermoplastic boots and precise spline counts support dependable driveline service.
Limited lifetime warranty. Backed by TrakMotive and manufactured under ISO and TS certification.
Cross-references TrakMotive TO-86029 and NCV69219 for the same application. See all 2.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TrakMotive TO-86029 CV Axle Shaft
This TrakMotive AAR CV axle shaft is built for the front right position on compatible Toyota Venza applications. It follows an OE AAR design and is specified for non-ABS use unless otherwise noted, making it a direct replacement for the listed fitment.
Key Features
- OE AAR design for the listed application
- Premium-grade CV axle shaft from TrakMotive
- Thermoplastic boots on the inboard and outboard joints
- 24 inboard splines and 26 outboard splines
- 32 mm axle nut hex size with M22x1.5 thread
- Limited lifetime warranty
Detailed Description
The TO-86029 is a premium CV axle shaft engineered for Toyota Venza front right fitment in 2021-2022 models. Its long-male inboard joint and conventional outboard joint follow the OE AAR layout, while the thermoplastic boot material supports consistent joint protection. The axle is built with a 38.25-inch compressed length and 40.44-inch extended length, along with a 0-tooth ABS configuration for non-ABS applications. TrakMotive TO-86029 is a practical replacement choice when restoring driveline function on a Toyota Venza with the specified configuration.
What It Is Used For
- Replacing a worn or noisy CV axle shaft
- Restoring smooth power transfer through the driveline
- Addressing vibration during acceleration or turning
- Correcting clicking or binding from a damaged CV joint
- Replacing a shaft with the wrong ABS configuration
Installation Notes and Tips
Verify the front right position, axle nut thread size, and ABS configuration before installation. Confirm spline counts and overall length against the removed part to ensure proper fit. This part cross-references Monroe Shocks & Struts (e.g., NCV69219) for the same application.
Quality Assurance
TrakMotive identifies this axle as a premium-grade component and backs it with a limited lifetime warranty. The company is ISO 9001:2008 and TS 16949:2009 certified, supporting consistent manufacturing control for the TO-86029.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2022 | Toyota | Venza | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2021 | Toyota | Venza | Front Right | OE AAR design; AAR CV Axle Shaft |
| No rows match your filter. | ||||
