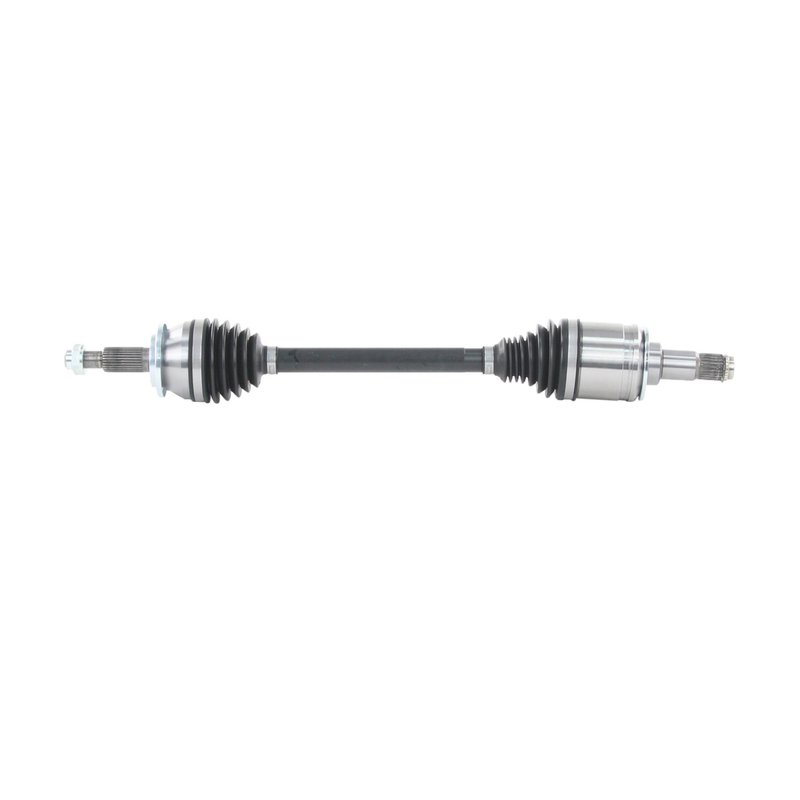

TrakMotive TO-86031 CV Axle Shaft - Front Left
| Brand | TrakMotive TO-86031 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 24 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 28.81 |
| Overall Compressed Length (mm) | 733 |
| Overall Extended Length (in) | 30.94 |
| Overall Extended Length (mm) | 786 |
| Product line | AAR CV Axle Shaft |
| Fits | Toyota · 2 vehicles |
OE-style replacement. AAR CV axle shaft for straightforward service fit.
Premium grade. Built with thermoplastic boots for durable joint protection.
Certified company. Made by an ISO 9001:2008 and TS 16949:2009 certified manufacturer.
Cross-references TrakMotive TO-86031 and NCV69235 for the same application. See all 2.
Front Left CV Axle Shaft for Toyota Sienna
The TrakMotive AAR CV Axle Shaft TO-86031 is a premium driveline replacement for the front left position on 2021-2022 Toyota Sienna models. It is built for OE AAR design applications and supports smooth power transfer through the front axle assembly.
TrakMotive’s AAR CV Axle Shaft line focuses on application-specific fitment for modern driveline layouts. This TO-86031 axle is engineered for the Toyota Sienna front left position with the correct spline counts, compressed and extended lengths, and non-ABS configuration details for the listed vehicles.
- Fits 2021-2022 Toyota Sienna, front left
- Premium-grade CV axle shaft for driveline service
- OE AAR design application
- 24 inboard splines and 30 outboard splines
- Thermoplastic boot material on inboard and outboard joints
- Non-ABS axle configuration with no tone ring included
- Axle nut thread size: M22x1.5
- Overall compressed length: 733 mm; extended length: 786 mm
This Toyota Sienna CV axle shaft is used to restore front-wheel driveline function when the original axle shows wear, vibration, clicking, or joint play. The TO-86031 part number also cross-references NCV69235 for the same application.
Common Repair Applications
- Clicking or popping during turns from worn CV joints
- Vibration under acceleration from a damaged axle shaft
- Grease leakage from deteriorated axle boots
- Noise or looseness in the front left driveline assembly
- Replacement for an OE AAR-style front axle on Toyota Sienna
Installation Notes
Verify front left fitment by year, model, and OE AAR design before installation. This axle uses a 32 mm axle nut socket size and 32 mm hex size, with no axle nut included. ABS axles fit non-ABS applications unless otherwise noted, and this listing is specified without an ABS tone ring.
Quality Assurance
TrakMotive identifies this AAR CV Axle Shaft as a premium replacement and backs it with a limited lifetime warranty. The manufacturer is ISO 9001:2008 and TS 16949:2009 certified, supporting consistent production and quality control for the TO-86031 axle shaft.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2022 | Toyota | Sienna | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2021 | Toyota | Sienna | Front Left | OE AAR design; AAR CV Axle Shaft |
