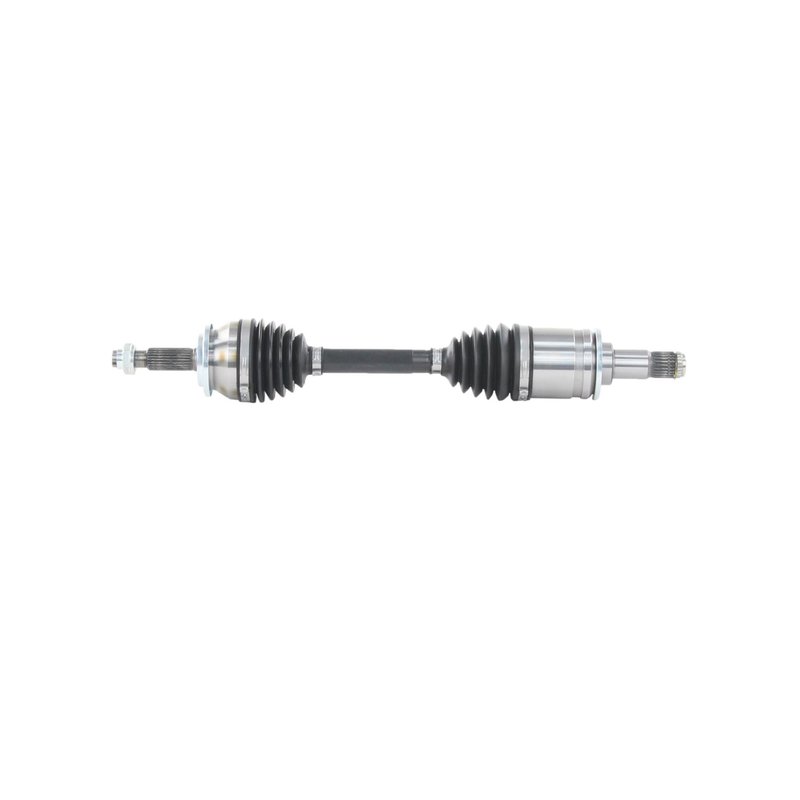

TrakMotive TO-86034 CV Axle Shaft - Front Left
| Brand | TrakMotive TO-86034 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 24 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 24.38 |
| Overall Compressed Length (mm) | 619 |
| Overall Extended Length (in) | 26.56 |
| Overall Extended Length (mm) | 674 |
| Product line | AAR CV Axle Shaft |
| Fits | Lexus · 3 vehicles |
Premium grade. A replacement CV axle shaft built for dependable driveline service.
ABS tone ring omitted. Fits non-ABS applications unless otherwise noted.
Certified manufacturing. Made by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive TO-86034 and NCV69280 for the same application. See all 2.
TrakMotive TO-86034 CV Axle Shaft
The TrakMotive TO-86034 is a front left CV axle shaft for select Lexus HS250h models. It follows an OE AAR design for direct replacement service on 2010-2012 Lexus HS250h applications, including non-ABS use where applicable.
Key Features
- Front left CV axle shaft for driveline repair
- OE AAR design for the Lexus HS250h
- Premium grade construction
- Inboard joint type: male
- Outboard joint type: conventional
- 24 inboard splines and 26 outboard splines
- Axle nut thread size: M22x1.5
- Axle nut hex size: 32 mm
- Overall compressed length: 619 mm; extended length: 674 mm
- ABS tone ring not included
Product Details
Built for 2010-2012 Lexus HS250h front left fitment, the TO-86034 CV axle shaft is engineered to match the OE AAR layout used on these vehicles. TrakMotive positions this AAR CV Axle Shaft in its premium driveline line, with ISO 9001:2008 and TS 16949:2009 certified manufacturing practices supporting consistent part quality. The axle is specified with a male inboard joint, conventional outboard joint, and the spline counts and dimensions needed for the listed Lexus HS250h applications. This part cross-references Monroe Shocks & Struts (e.g., NCV69280) for the same application.
What It Helps Fix
- Clicking or popping during turns from a worn CV joint
- Vibration or shudder during acceleration
- Grease leakage from a damaged axle boot
- Noise from a worn or binding front axle assembly
- Driveline play affecting smooth power delivery
Installation Notes
Verify front left placement, spline count, axle nut thread size, and overall length before installation. The axle nut is not included, so reuse or replace it according to service requirements. ABS axles fit non-ABS applications unless otherwise noted, and this axle does not include an ABS tone ring.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The brand also notes ISO 9001:2008 and TS 16949:2009 certified production standards for this part line.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2012 | Lexus | HS250h | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2011 | Lexus | HS250h | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2010 | Lexus | HS250h | Front Left | OE AAR design; AAR CV Axle Shaft |
| No rows match your filter. | ||||
