OE Quality
60-Day Returns
TrakMotivePart #: TO-86042

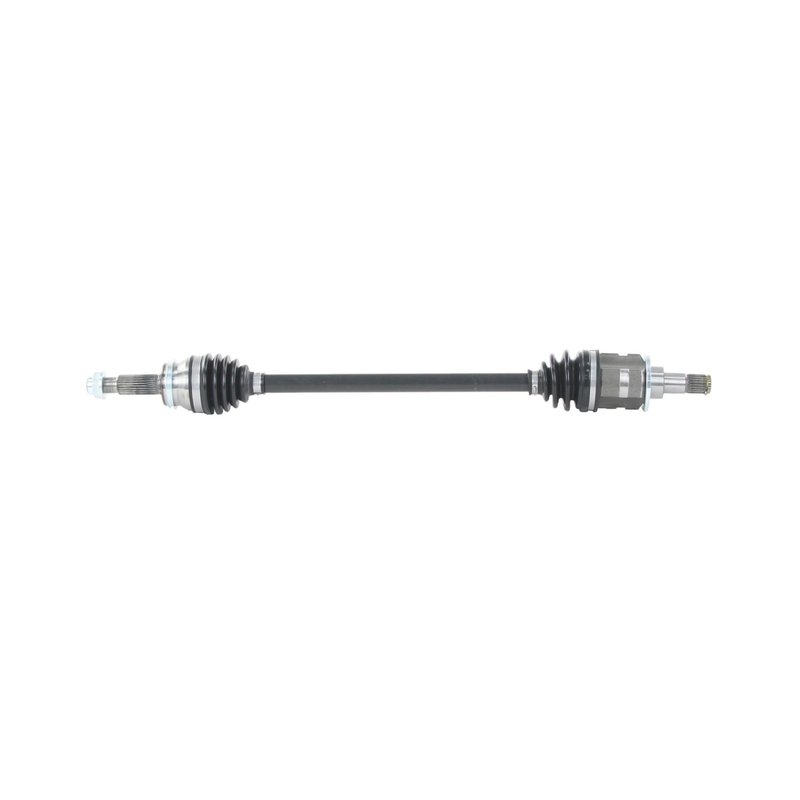

TrakMotive TO-86042 CV Axle Shaft - Rear Left
6 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$133.11Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
CV Axle Shaft, Rear Left
Fitment: Toyota, RAV4 and Venza
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all CV Axle Shaft options
TrakMotive TO-86042 CV Axle Shaft - Rear Left
| Brand | TrakMotive |
|---|---|
| Part Number | TO-86042 |
| Position | CV Axle Shaft, Rear Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 23 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 31.19 |
| Overall Compressed Length (mm) | 792 |
| Overall Extended Length (in) | 43.81 |
| Overall Extended Length (mm) | 1113 |
This part fits 6 vehicles. Search below:
| Year | Make | Model | Fuel Type | Position | Notes |
|---|---|---|---|---|---|
| 2022 | Toyota | RAV4 | Rear Left | Standard Duty Replacement; CV Axle Shaft | |
| 2022 | Toyota | Venza | Rear Left | Standard Duty Replacement; CV Axle Shaft | |
| 2021 | Toyota | RAV4 | Rear Left | Standard Duty Replacement; CV Axle Shaft | |
| 2021 | Toyota | Venza | Rear Left | Standard Duty Replacement; CV Axle Shaft | |
| 2020 | Toyota | RAV4 | Rear Left | Standard Duty Replacement; CV Axle Shaft | |
| 2019 | Toyota | RAV4 | FULL HYBRID EV-GAS (FHEV) | Rear Left | Standard Duty Replacement; CV Axle Shaft |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
NCV69169TO-86042
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
