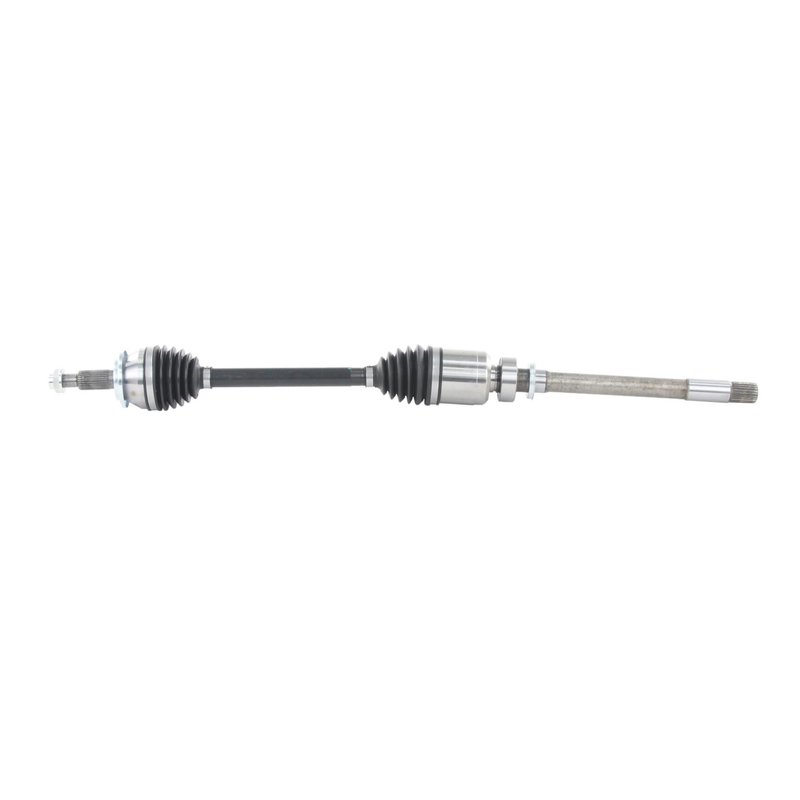

TrakMotive TO-86043 CV Axle Shaft - Front Right

TrakMotive TO-86043 Front Right CV Axle Shaft

The TrakMotive TO-86043 AAR CV axle shaft is a premium driveline replacement for select Toyota Highlander models. It is built for the front right position and matches the confirmed fitment for 2020-2022 Toyota Highlander, front right, VIN Z (5th Digit).

Key Features

• Premium-grade CV axle shaft for driveline service
• Fits 2020-2022 Toyota Highlander, front right, VIN Z (5th Digit)
• Long-male inboard joint design
• Conventional outboard joint design
• Thermoplastic boots on the inboard and outboard joints
• 24 inboard splines and 30 outboard splines
• Axle nut thread size: M22x1.5
• Axle nut hex size: 32 mm
• Overall compressed length: 1021 mm; overall extended length: 1076 mm
• ABS tone ring not included

Product Details

TrakMotive TO-86043 is part of the AAR CV Axle Shaft line, a product line focused on application-specific driveline replacement. This axle is engineered for the front right side of the Toyota Highlander and is listed for vehicles with VIN Z as the 5th digit. The design includes a long-male inboard joint, a conventional outboard joint, and thermoplastic boot materials for both ends. TrakMotive TO-86043 also uses a 24-spline inboard connection and a 30-spline outboard connection, with no ABS tone ring included.

This part cross-references Monroe Shocks & Struts (e.g., NCV69225) for the same application.

Common Replacement Reasons

• Clicking or popping during turns from worn CV joints
• Vibration during acceleration from a damaged axle shaft
• Torn CV boots that allow grease loss and contamination
• Noise from a failing front right driveline assembly
• Axle wear on 2020-2022 Toyota Highlander front right applications

Installation Notes

Verify the vehicle’s VIN Z (5th digit), axle nut thread size M22x1.5, and 32 mm hex size before installation. Confirm the front right position and compare spline counts and compressed length to the original axle. ABS axles fit non-ABS applications unless otherwise noted, and this axle does not include an ABS tone ring.

Quality Assurance

TrakMotive states that this AAR CV axle shaft is backed by a limited lifetime warranty. The brand also notes ISO 9001:2008 and TS 16949:2009 certification for its manufacturing system.
