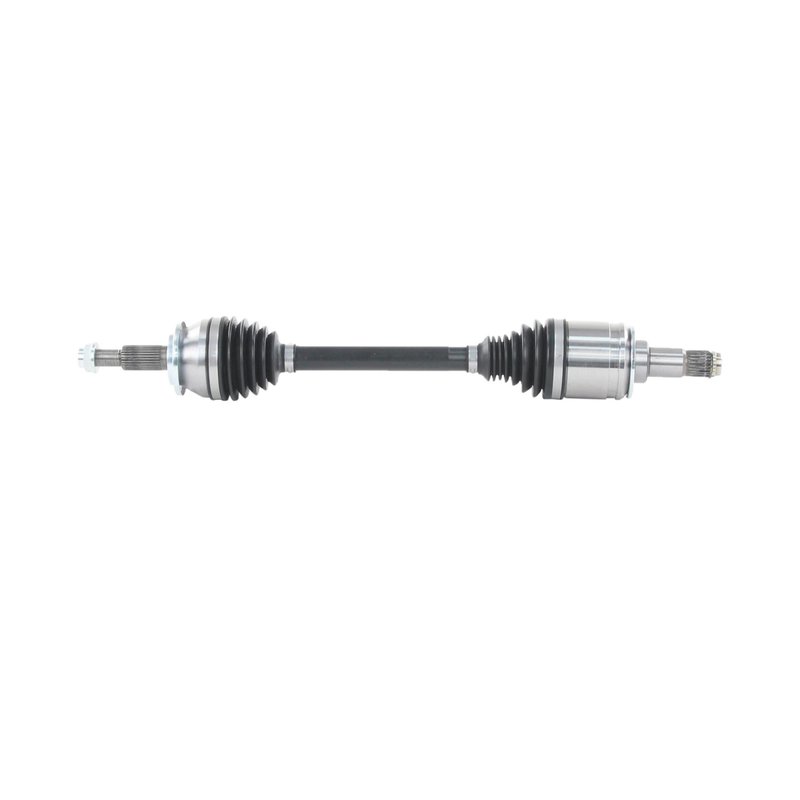

TrakMotive TO-86044 CV Axle Shaft - Front Left

TrakMotive TO-86044 CV Axle Shaft for Toyota Highlander

The TrakMotive AAR CV Axle Shaft TO-86044 is a front left replacement axle for select 2020-2022 Toyota Highlander models with VIN Z (5th digit). Built as a premium driveline component, it is specified for non-ABS applications unless otherwise noted and uses thermoplastic boot materials for both joints.

Key Features

• Fits 2020-2022 Toyota Highlander, front left, VIN Z (5th digit)
• Premium-grade CV axle shaft for driveline repair
• 24-spline inboard and 30-spline outboard configuration
• Male inboard joint with conventional outboard joint design
• Overall compressed length: 694 mm (27.31 in); extended length: 748 mm (29.44 in)
• 32 mm axle nut hex size with M22x1.5 thread size
• ABS tone ring not included; ABS ring tooth count: 0

Detailed Description

This TrakMotive TO-86044 CV axle shaft is built for front left applications on the 2020-2022 Toyota Highlander with VIN Z (5th digit). It is an AAR CV Axle Shaft designed with a 24-spline inboard joint, 30-spline outboard joint, and thermoplastic boot construction at both ends for consistent driveline service. The axle nut uses a 32 mm hex size and M22x1.5 thread specification, and the axle nut is not included.

TrakMotive’s AAR CV Axle Shaft line focuses on application-specific replacement axles for import driveline service. This TO-86044 listing cross-references NCV69228 for the same application.

Common Repair Applications

• Front left CV axle replacement for a worn or noisy axle assembly
• Repair for clicking during turns on a 2020-2022 Toyota Highlander
• Replacement for vibration or shudder from the front driveline
• Service part for torn CV boots or grease loss at the axle assembly
• Direct replacement when the original axle shaft is no longer serviceable

Installation Notes and Tips

Verify VIN Z (5th digit) before ordering to confirm application match. Confirm axle nut thread size, hex size, and overall axle length against the original part before installation. This axle is listed for non-ABS applications unless otherwise noted, and no ABS tone ring is included.

Quality Assurance

TrakMotive states that this part is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:2008 and TS 16949:2009 certification, supporting controlled production and quality management for driveline components.
