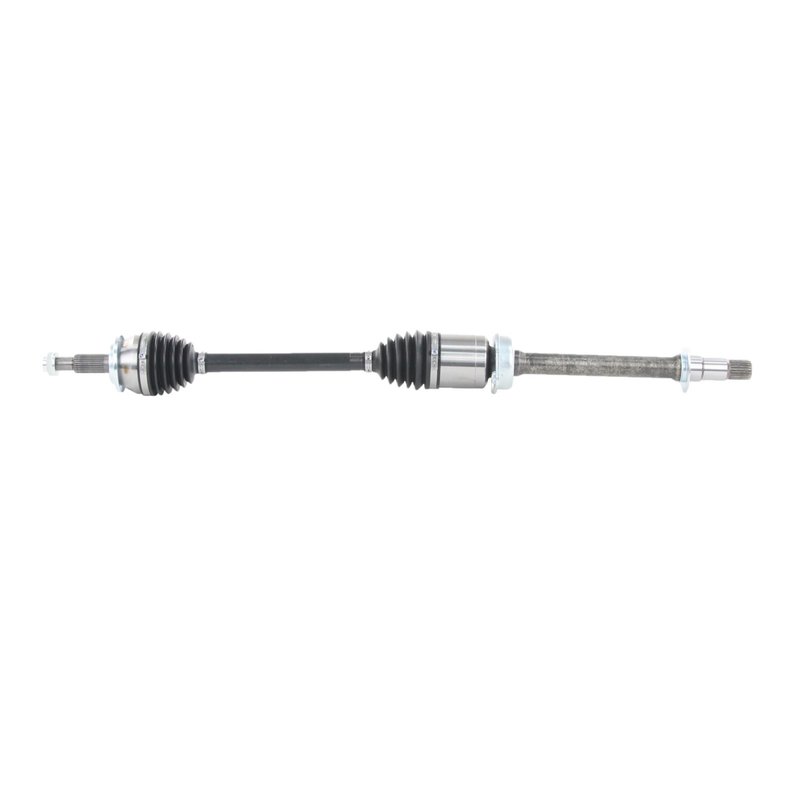

TrakMotive TO-86046 CV Axle Shaft - Front Right
| Brand | TrakMotive TO-86046 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Long-male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 24 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 40.13 |
| Overall Compressed Length (mm) | 1019 |
| Overall Extended Length (in) | 42.31 |
| Overall Extended Length (mm) | 1074 |
| Product line | AAR CV Axle Shaft |
| Fits | Toyota · 3 vehicles |
OE direct replacement. Built as a premium CV axle shaft for straightforward replacement.
ABS-ready design. Fits non-ABS applications when no ABS tone ring is needed.
Certified quality. Made by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive TO-86046 and NCV69226 for the same application. See all 2.
Front Right CV Axle Shaft for Toyota Highlander
TrakMotive TO-86046 is a premium CV axle shaft for the front right position on select 2020-2022 Toyota Highlander models. It is built for vehicles with VIN B as the 5th digit and is specified as an AAR CV Axle Shaft for this application.
- Fits 2020-2022 Toyota Highlander, front right
- Premium-grade CV axle shaft for driveline service
- Inboard joint type: long-male
- Outboard joint type: conventional
- Inboard splines: 24
- Outboard splines: 30
- Axle nut thread size: M22x1.5
- Axle nut hex/socket size: 32 mm
- Overall compressed length: 1019 mm (40.13 in)
- Overall extended length: 1074 mm (42.31 in)
- ABS tone ring not included; ABS ring tooth count: 0
This TrakMotive AAR CV axle shaft line is built for direct driveline replacement needs where OE-style fit and spline count matter. TO-86046 cross-references NCV69226 for the same application and is the correct type of part to match the front right axle on a Toyota Highlander with the listed VIN break.
Common Repair Uses
- Restores power transfer to the front right wheel
- Addresses clicking or popping during turns caused by worn CV joints
- Helps correct vibration from a damaged or worn axle shaft
- Replaces a bent, rusted, or leaking axle assembly
- Supports repair after torn boots or joint wear
Installation Notes
Verify the vehicle VIN B (5th digit), axle nut thread size, spline counts, and compressed/extended length before installation. This axle does not include an axle nut, and ABS axles fit non-ABS applications unless otherwise noted by the vehicle listing. Confirm the front right position and compare the original shaft configuration to TO-86046 before assembly.
Quality Assurance
TrakMotive states that this part is backed by a limited lifetime warranty. The brand also notes ISO 9001:2008 and TS 16949:2009 certification, supporting controlled manufacturing and quality processes.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2022 | Toyota | Highlander | 2.5L | L4 | Front Right | VIN B (5th Digit); AAR CV Axle Shaft |
| 2021 | Toyota | Highlander | 2.5L | L4 | Front Right | VIN B (5th Digit); AAR CV Axle Shaft |
| 2020 | Toyota | Highlander | 2.5L | L4 | Front Right | VIN B (5th Digit); AAR CV Axle Shaft |
