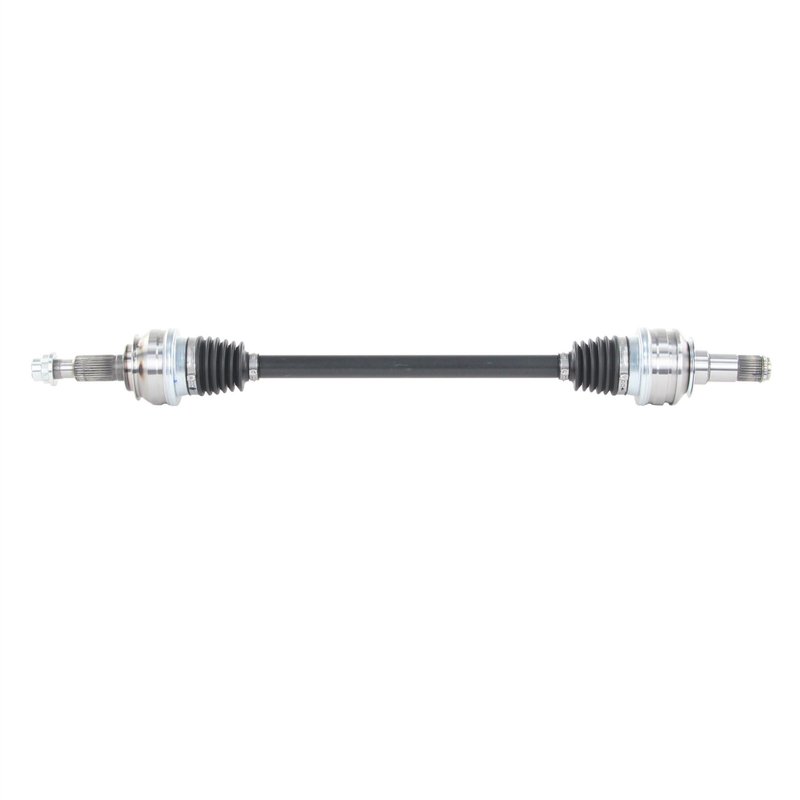

TrakMotive TO-86050 CV Axle Shaft - Rear Right
| Brand | TrakMotive TO-86050 |
|---|---|
| Position | Rear Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 26 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.46 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M26x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 30 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 32.5 |
| Overall Compressed Length (mm) | 825 |
| Overall Extended Length (in) | 35.63 |
| Overall Extended Length (mm) | 905 |
| Product line | CV Axle Shaft |
| Fits | Lexus · 4 vehicles |
OE-style replacement. Built as a CV axle shaft with a direct-fit design.
Premium grade. Thermoplastic boots help protect the joints from wear.
Axle nut included. Stake-lock hardware is ready for installation.
Cross-references TrakMotive TO-86050 and NCV69273 for the same application. See all 2.
TrakMotive CV Axle Shaft TO-86050
TrakMotive TO-86050 is a rear right CV axle shaft for select 2014-2015 Lexus IS250 and 2014-2015 Lexus IS350 applications. Built as a premium-grade driveline replacement, it is specified for standard duty service and includes the axle nut for a more complete repair.
Key Features
- Fits 2014-2015 Lexus IS250, rear right
- Fits 2014-2015 Lexus IS350, rear right
- Premium-grade CV axle shaft for driveline repair
- 30-spline inboard and 30-spline outboard shaft connection
- Thermoplastic boot material on both joints
- Conventional outboard joint and male inboard joint design
- Includes axle nut with M26x1.5 thread, 32 mm hex size, and stake locking type
- No ABS tone ring included; ABS ring tooth count is 0
Product Details
This TrakMotive CV axle shaft, part number TO-86050, is engineered for rear right placement on the Lexus IS250 and Lexus IS350 from 2014-2015. It measures 32.5 inches compressed and 35.63 inches extended, with spline counts and joint construction matched to the listed applications. TrakMotive positions this CV axle shaft line as a premium replacement option, and the company notes ISO 9001:2008 and TS 16949:2009 certification for its manufacturing processes. This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.
Common Repair Uses
- Restores drivetrain function when the original axle shaft is worn or damaged
- Addresses clicking, vibration, or shudder during acceleration
- Replaces a leaking or torn CV boot assembly on the rear right side
- Helps correct noise from a failing constant velocity joint
- Supports repair after spline wear or axle shaft fatigue
Installation Notes
Verify rear right fitment before installation on your Lexus IS250 or Lexus IS350. Confirm axle nut thread size, hex size, and locking style against the vehicle specification, and inspect mating components such as hubs, seals, and suspension hardware before assembly. Because this axle is listed without an ABS tone ring, it is intended for non-ABS applications unless otherwise noted in the vehicle catalog.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The brand also states that its products are manufactured under ISO 9001:2008 and TS 16949:2009 certified quality systems.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2015 | Lexus | IS250 | RWD | Rear Right | Standard Duty Replacement; CV Axle Shaft |
| 2015 | Lexus | IS350 | RWD | Rear Right | Standard Duty Replacement; CV Axle Shaft |
| 2014 | Lexus | IS250 | RWD | Rear Right | Standard Duty Replacement; CV Axle Shaft |
| 2014 | Lexus | IS350 | RWD | Rear Right | Standard Duty Replacement; CV Axle Shaft |
