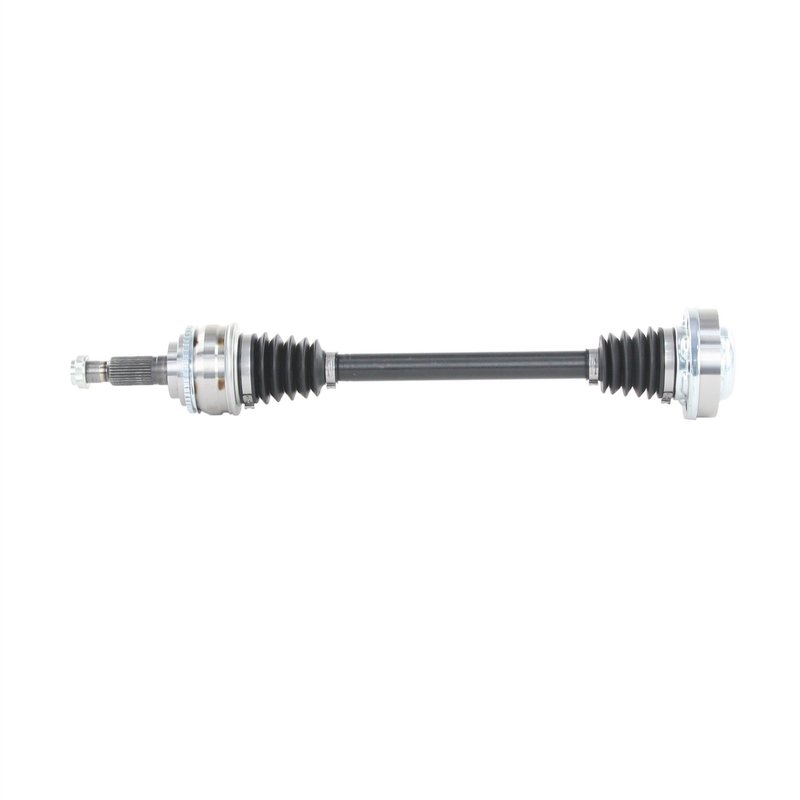

TrakMotive TO-86054 CV Axle Shaft - Rear Left
| Brand | TrakMotive TO-86054 |
|---|---|
| Position | Rear Left |
| ABS Ring Tooth Count | 48 |
| ABS Ring Type | Toothed |
| ABS Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .69 |
| Axle Nut Height (mm) | 18 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.46 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M26x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Bolt-on |
| Inboard Shaft Connection Style | Bolt-on |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 0 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 26.94 |
| Overall Compressed Length (mm) | 684 |
| Overall Extended Length (in) | 29.63 |
| Product line | CV Axle Shaft |
| Fits | Lexus · 4 vehicles |
OE-style replacement. Bolt-on design with included axle nut for straightforward installation.
ABS-ready design. Includes a toothed tone ring with 48 teeth for ABS applications.
Premium construction. Thermoplastic boots and a conventional outboard joint help deliver dependable driveline performance.
Cross-references TrakMotive TO-86054 for the same application. See all 1.
Rear Left CV Axle Shaft for Lexus LS430
TrakMotive TO-86054 is a premium CV axle shaft for the rear left position on 2001-2004 Lexus LS430 models. It is built for standard-duty replacement needs and includes ABS tone ring details that support proper wheel speed signal operation on equipped vehicles.
Key Features
- Fits 2001-2004 Lexus LS430, rear left
- Premium-grade CV axle shaft for driveline service
- ABS ring with 48 teeth and toothed design
- ABS tone ring included
- Inboard joint uses a 6-bolt bolt-on connection
- Outboard side uses a spline connection with 30 outboard splines
- Includes axle nut with M26x1.5 thread, 32 mm hex size, and stake locking type
- Overall compressed length: 26.94 in. Overall extended length: 29.63 in.
Detailed Description
This TrakMotive CV axle shaft, part number TO-86054, is specified for the rear left side of the Lexus LS430 from 2001 through 2004. It uses a bolt-on inboard joint with six bolt holes and a spline-style outboard connection, making it a direct driveline replacement for the listed application. The thermoplastic boots and premium construction support consistent operation in standard-duty service. This part cross-references TrakMotive TO-86054 for the same application.
Common Problems This Part Can Address
- Clicking or popping from a worn CV joint
- Vibration during acceleration or cruising
- Axle shaft play caused by worn driveline components
- ABS warning concerns related to a damaged tone ring or sensor signal path
- Noise from a failing rear left axle assembly
Installation Notes and Tips
Verify rear left fitment before installation on your Lexus LS430. Confirm axle nut thread size, hex size, and locking style match the vehicle requirements, and inspect the hub, seals, and mounting surfaces for wear before assembly. Because this axle includes an ABS tone ring, make sure the wheel speed sensor area is clean and undamaged during service.
Quality Assurance
TrakMotive identifies this CV axle shaft as a premium replacement and notes ISO 9001:2008 and TS 16949:2009 certified manufacturing. The part is backed by a limited lifetime warranty.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2004 | Lexus | LS430 | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2003 | Lexus | LS430 | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2002 | Lexus | LS430 | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2001 | Lexus | LS430 | Rear Left | Standard Duty Replacement; CV Axle Shaft |
