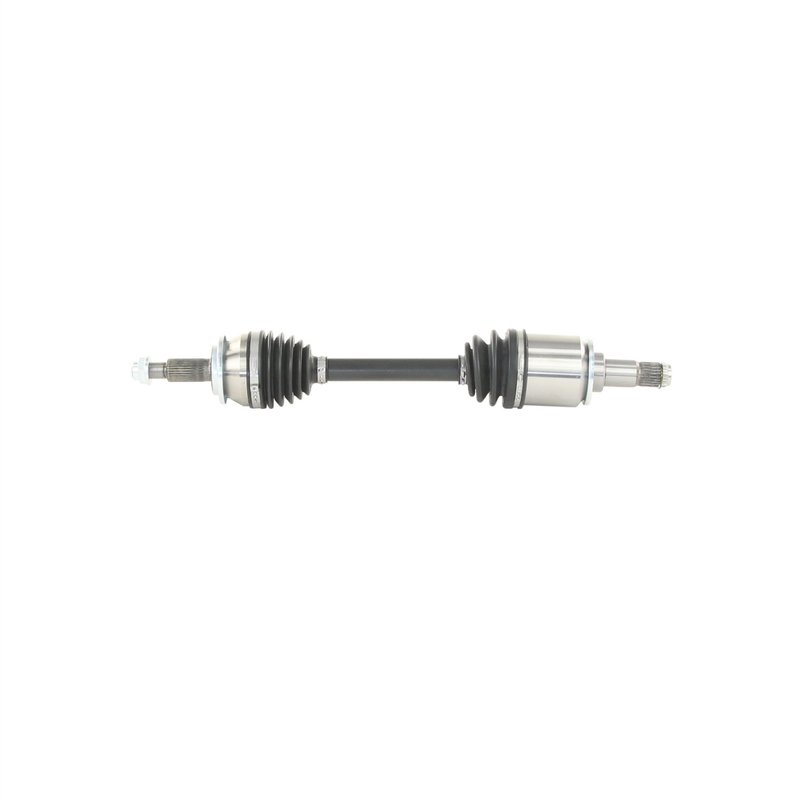

TrakMotive TO-86058 CV Axle Shaft - Front Left

OE-Style Front Left CV Axle for Lexus NX

TrakMotive TO-86058 is a premium CV axle shaft for the front left position on select Lexus NX hybrid and turbo models. It follows the OE AAR design for direct replacement on 2015-2021 Lexus NX300h and 2015-2017 Lexus NX200t applications.

Key Features

• Front left CV axle shaft for driveline repair
• OE AAR design for the listed Lexus NX applications
• Premium grade construction
• 24 inboard splines and 30 outboard splines
• Male inboard joint with conventional outboard joint
• Neoprene inboard boot and thermoplastic outboard boot
• Axle nut thread size: M22x1.5
• Axle nut hex/socket size: 32 mm
• Overall compressed length: 647 mm; extended length: 695 mm
• ABS ring tooth count: 0; ABS tone ring not included

Product Details

TrakMotive TO-86058 is built as an AAR CV axle shaft for Lexus NX front left service where the OE AAR layout is required. The shaft uses a 24-spline inboard connection and a 30-spline outboard connection, with a male inboard joint and conventional outboard joint for the specified fitments. This part cross-references NCV69260 for the same application.

Compatible With 2015-2021 Lexus NX300h, front left, and 2015-2017 Lexus NX200t, front left. Use TO-86058 when replacing a worn or noisy front left axle on these Lexus NX models, including vehicles that need an OE AAR design replacement.

Common Repair Reasons

• Clicking or popping during turns from a worn CV joint
• Vibration under acceleration caused by axle wear
• Torn or deteriorated axle boots leading to grease loss
• Axle shaft play or binding in the front driveline
• Noise from a damaged front left half shaft assembly

Installation Notes

Verify axle nut thread size, hex size, and compressed length before installation. This axle uses a 32 mm axle nut socket size and M22x1.5 thread specification; the axle nut is not included. ABS axles fit non-ABS applications unless otherwise noted, and this listing does not include an ABS tone ring.

Quality Assurance

TrakMotive identifies this AAR CV axle shaft as a premium-grade replacement and states that the company is ISO 9001:2008 and TS 16949:2009 certified. The part is backed by a limited lifetime warranty.
