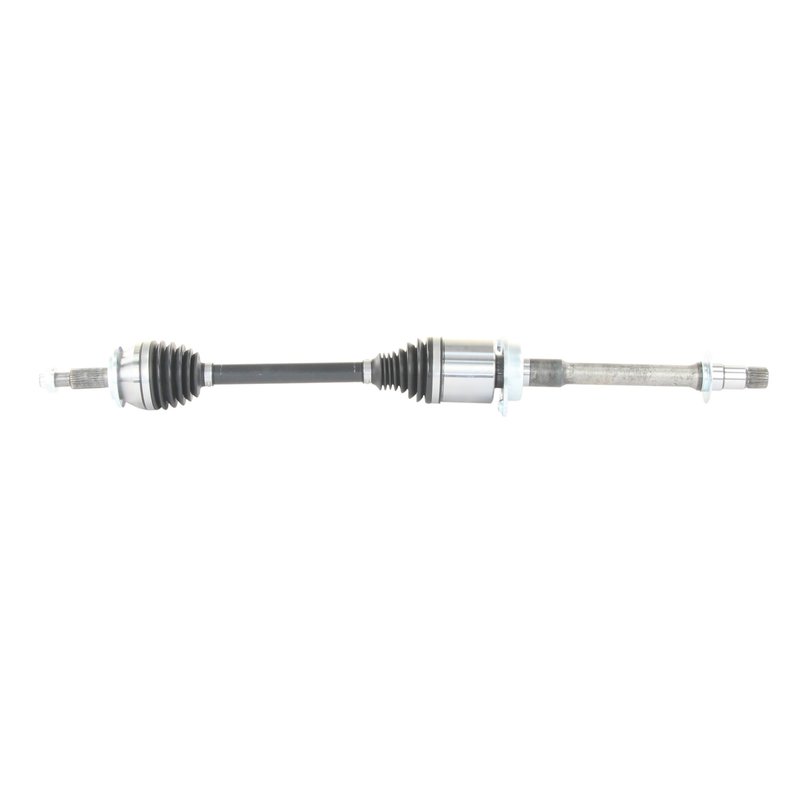

TrakMotive TO-86064 CV Axle Shaft - Front Right
| Brand | TrakMotive TO-86064 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (in) | .79 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Long-male |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 24 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 38.5 |
| Overall Compressed Length (mm) | 979 |
| Overall Extended Length (in) | 40.63 |
| Overall Extended Length (mm) | 1032 |
| Product line | AAR CV Axle Shaft |
| Fits | Lexus · 6 vehicles |
OE direct replacement. Premium CV axle shaft for a straightforward, factory-style swap.
ABS-ready design. Fits non-ABS applications when no ABS tone ring is needed.
Certified quality. Built by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive TO-86064 and NCV69210 for the same application. See all 2.
Front Right CV Axle Shaft for Lexus ES
TrakMotive TO-86064 is a premium front right CV axle shaft for select Lexus ES applications with OE AAR design. It is built for direct replacement use on 2019-2022 Lexus ES300h and 2021-2022 Lexus ES250 front right positions, with fitment that matches the listed factory configurations.
Key Features
- Premium-grade CV axle shaft for driveline service
- OE AAR design for the listed Lexus ES applications
- Front right position fitment
- Inboard joint type: long-male
- Conventional outboard joint type
- 24 inboard splines and 30 outboard splines
- No ABS tone ring included; ABS ring tooth count: 0
- Axle nut thread size: M22x1.5
- Axle nut hex size: 32 mm
Detailed Description
TrakMotive TO-86064 is a CV axle shaft for the front right side of select Lexus ES models, including 2021-2022 Lexus ES250, front right, and 2019-2022 Lexus ES300h, front right, with the 2020 ES300h application limited to vehicles built through 08/2019 and the 2019 ES300h application starting from 09/2019. This part number is built around the OE AAR design used in these applications and is specified with a long-male inboard joint, conventional outboard joint, 24 inboard splines, and 30 outboard splines. TrakMotive TO-86064 also uses a 32 mm axle nut socket size with M22x1.5 thread specification.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What It Helps Fix
- Clicking or popping during turns from a worn CV joint
- Vibration or shudder during acceleration
- Axle shaft wear from high-mileage driveline use
- Noise caused by damaged splines or joint wear
- Front right driveline service on the listed Lexus ES models
Installation Notes and Tips
Verify the vehicle build date before ordering for 2020 and 2019 Lexus ES300h applications, since fitment changes by production month. Confirm front right position, axle nut thread size, and spline count against the original part before installation. The axle nut is not included, and no ABS tone ring is included with this axle shaft.
Quality Assurance
TrakMotive lists this AAR CV axle shaft under a limited lifetime warranty. The manufacturer also states that its products are produced by an ISO 9001:2008 and TS 16949:2009 certified company.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2022 | Lexus | ES250 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2022 | Lexus | ES300h | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2021 | Lexus | ES250 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2021 | Lexus | ES300h | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2020 | Lexus | ES300h | Front Right | Thru 08/2019; AAR CV Axle Shaft |
| 2019 | Lexus | ES300h | Front Right | From 09/2019; AAR CV Axle Shaft |
