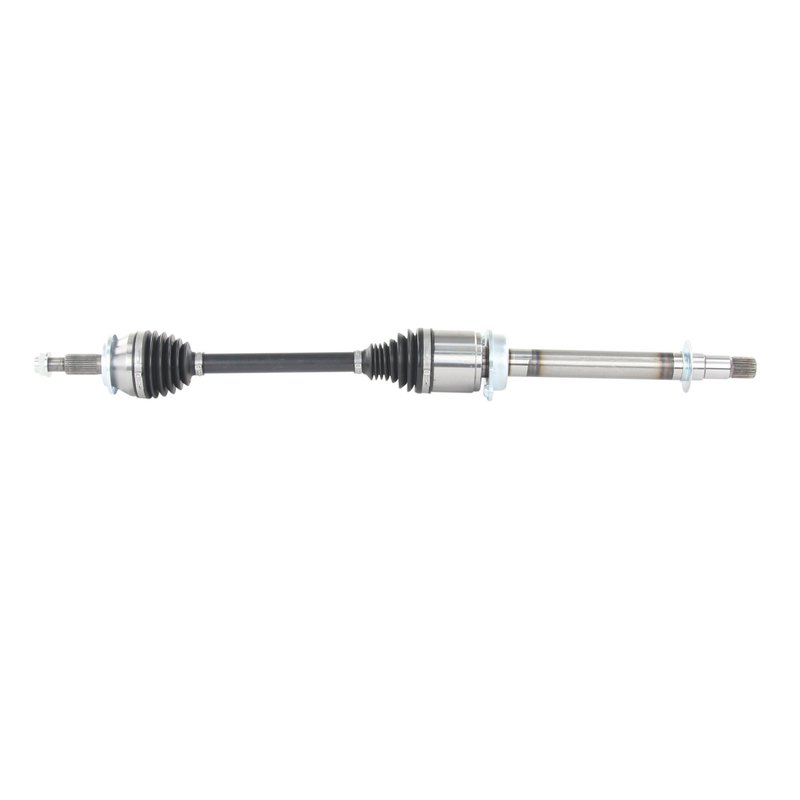

TrakMotive TO-86065 CV Axle Shaft - Front Right
| Brand | TrakMotive TO-86065 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (in) | .79 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Long-male |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 24 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 39.19 |
| Overall Compressed Length (mm) | 996 |
| Overall Extended Length (in) | 41.31 |
| Overall Extended Length (mm) | 1050 |
| Product line | AAR CV Axle Shaft |
| Fits | Lexus and Toyota · 15 vehicles |
Premium grade. Built as a CV axle shaft for dependable driveline performance.
ABS-ready design. Fits non-ABS applications unless otherwise noted.
Certified manufacturing. Produced by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive TO-86065 and NCV69234 for the same application. See all 2.
OE-Style Front Right CV Axle Shaft
TrakMotive TO-86065 is a premium CV axle shaft for front right applications on select Toyota and Lexus vehicles with OE AAR design. It is built for direct replacement service on the 2018-2024 Toyota Camry, 2019-2022 Toyota Avalon, and 2020-2022 Lexus ES350, with a separate 2019 Lexus ES350 application from 09/2019.
The TrakMotive AAR CV Axle Shaft line focuses on OE-style fit and driveline accuracy for vehicles that use this specific axle architecture. Part number TO-86065 follows the original AAR design and is backed by the manufacturer’s limited lifetime warranty.
- Front right CV axle shaft for OE AAR design applications
- Premium grade replacement for driveline service
- Inboard joint type: Long-Male
- Outboard joint type: Conventional
- 24 inboard splines and 30 outboard splines
- No ABS tone ring included; ABS ring tooth count: 0
- Axle nut thread size: M22x1.5
- Axle nut hex size: 32 mm / 1.25 in
- Overall compressed length: 996 mm (39.19 in)
- Overall extended length: 1050 mm (41.31 in)
Vehicle Fitment
- Fits 2018-2024 Toyota Camry, front right, OE AAR design; AAR CV Axle Shaft
- Fits 2020-2022 Lexus ES350, front right, OE AAR design; AAR CV Axle Shaft
- Fits 2019-2022 Toyota Avalon, front right, OE AAR design; AAR CV Axle Shaft
- Fits 2019 Lexus ES350, front right, from 09/2019; AAR CV Axle Shaft
Common Repair Applications
- Restores a worn or noisy front axle assembly
- Addresses vibration during acceleration
- Replaces a damaged CV joint or axle shaft
- Corrects clicking or popping from the front right driveline
- Supports proper power transfer in Toyota Camry, Toyota Avalon, and Lexus ES350 models
Installation Notes
Verify the vehicle uses the OE AAR axle design before ordering. Confirm front right position, spline count, axle nut thread size, and overall length against the original part. This axle does not include an axle nut, and it does not use an ABS tone ring.
Quality Assurance
TrakMotive manufactures this axle as an ISO 9001:2008 and TS 16949:2009 certified product. TO-86065 is covered by a limited lifetime warranty from the manufacturer.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2024 | Toyota | Camry | 3.5L | V6 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2023 | Toyota | Camry | 3.5L | V6 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2022 | Lexus | ES350 | — | — | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2022 | Toyota | Avalon | 3.5L | V6 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2022 | Toyota | Camry | 3.5L | V6 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2021 | Lexus | ES350 | — | — | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2021 | Toyota | Avalon | 3.5L | V6 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2021 | Toyota | Camry | 3.5L | V6 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2020 | Lexus | ES350 | — | — | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2020 | Toyota | Avalon | 3.5L | V6 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2020 | Toyota | Camry | 3.5L | V6 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2019 | Lexus | ES350 | — | — | Front Right | From 09/2019; AAR CV Axle Shaft |
| 2019 | Toyota | Avalon | 3.5L | V6 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2019 | Toyota | Camry | 3.5L | V6 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2018 | Toyota | Camry | 3.5L | V6 | Front Right | OE AAR design; AAR CV Axle Shaft |
