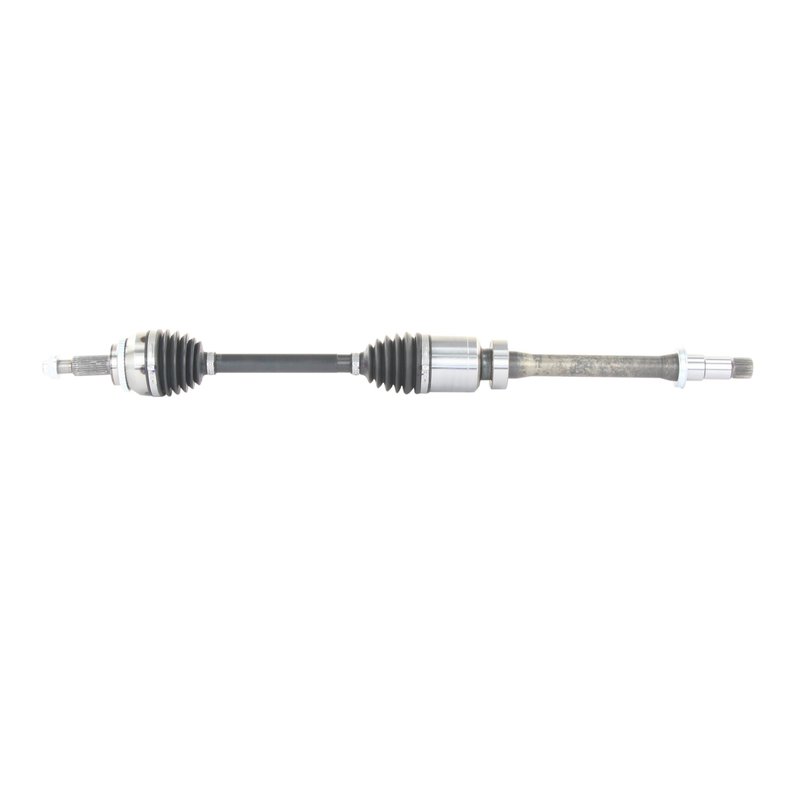

TrakMotive TO-86066 CV Axle Shaft - Front Right

Front Right CV Axle for Lexus ES300h

The TrakMotive AAR CV Axle Shaft TO-86066 is a premium replacement for the front right position on select Lexus ES300h models. It is built to match the OE AAR design used on 2013-2018 Lexus ES300h applications and supports smooth driveline operation with the correct spline and ABS ring configuration.

For buyers searching for a front right Lexus ES300h CV axle shaft, TO-86066 provides a direct-fit driveline solution with application-specific dimensions and joint design details. The TrakMotive AAR CV Axle Shaft line is engineered for accurate fitment and consistent replacement performance.

Key Features

• Fits 2013-2018 Lexus ES300h, front right
• OE AAR design for the listed application
• Premium grade CV axle shaft
• Inboard joint type: Long-Male
• Outboard joint type: Conventional
• 24 inboard splines and 30 outboard splines
• 48-tooth toothed ABS ring configuration
• Overall compressed length: 38.75 in. (985 mm)
• Overall extended length: 40.94 in. (1040 mm)
• Axle nut thread size: M22x1.5 with 32 mm hex size

Product Details

TrakMotive TO-86066 is a CV axle shaft for the front right side of the Lexus ES300h, covering 2013-2018 model years. It uses an OE AAR-style layout with a long-male inboard joint and a conventional outboard joint, along with the specified spline counts and ABS ring tooth count for the application. This part number, TO-86066, is intended for buyers replacing a worn or damaged front axle on a Lexus ES300h and looking for a direct-match driveline component.

This part cross-references NCV66098 and NCV69098 for the same application.

Common Problems This Part Can Address

• Clicking or popping noises during turns from a worn CV joint
• Vibration or shudder from a damaged axle shaft
• Grease leakage from a failing axle boot or joint assembly
• ABS-related driveline concerns tied to the correct ring configuration
• Excessive play or noise in the front right driveline assembly

Installation Notes

Verify axle nut thread size, hex size, spline count, and overall length before installation. This axle uses a 32 mm axle nut socket size and M22x1.5 thread specification; the axle nut is not included. Confirm the vehicle is the front right application listed for the Lexus ES300h before service. Because ABS axles fit non-ABS applications unless otherwise noted, match the vehicle’s ABS setup to the part details during selection.

Quality Assurance

TrakMotive states that this AAR CV Axle Shaft is backed by a limited lifetime warranty. The company is ISO 9001:2008 and TS 16949:2009 certified, supporting controlled manufacturing and quality management for replacement driveline parts.
