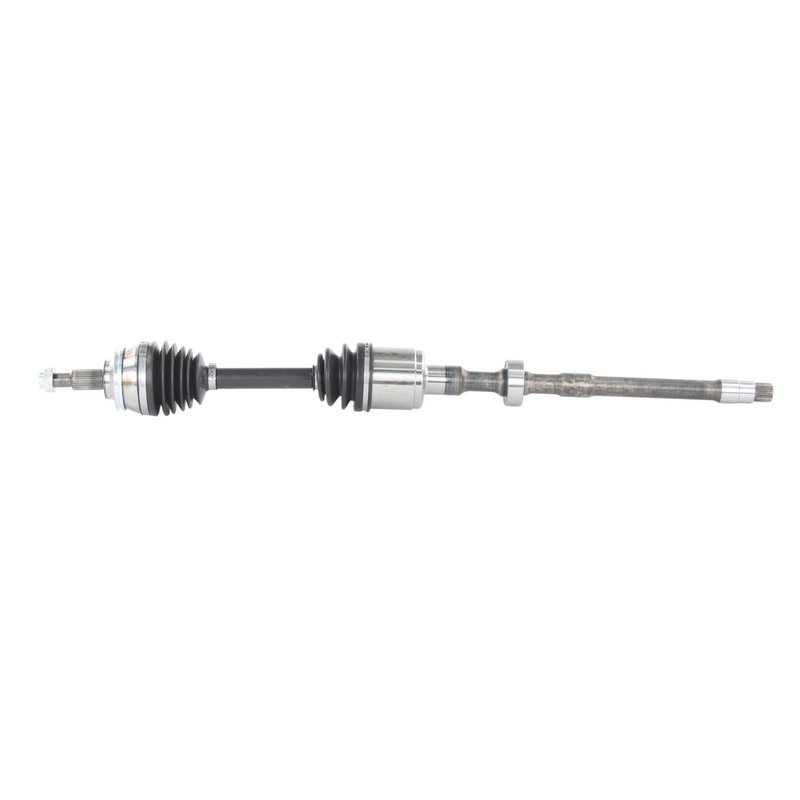

TrakMotive TO-86067 CV Axle Shaft - Front Right
| Brand | TrakMotive TO-86067 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (in) | .79 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Long-male |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 40.19 |
| Overall Compressed Length (mm) | 1020 |
| Overall Extended Length (in) | 42.13 |
| Overall Extended Length (mm) | 1074 |
| Product line | AAR CV Axle Shaft |
| Fits | Lexus · 5 vehicles |
Premium grade. Built as a CV axle shaft for dependable driveline performance.
ABS-ready design. Fits non-ABS applications unless otherwise noted.
Certified quality. Made by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive TO-86067 for the same application. See all 1.
Front Right CV Axle for Lexus LS460
TrakMotive TO-86067 is a premium CV axle shaft for the front right position on select Lexus LS460 models. It is built for 2013-2017 Lexus LS460 applications and follows the OE AAR design for direct replacement service.
Key Features
- Fits 2013-2017 Lexus LS460, front right
- OE AAR design replacement for the original axle layout
- Premium grade CV axle shaft from TrakMotive
- Long-male inboard joint type with conventional outboard joint
- 27 inboard splines and 30 outboard splines
- Axle nut thread size: M22x1.5
- Axle nut hex size: 32 mm
- Overall compressed length: 1020 mm; overall extended length: 1074 mm
- ABS tone ring not included; ABS ring tooth count: 0
Product Details
TrakMotive AAR CV Axle Shaft TO-86067 is engineered for the front right side of the Lexus LS460 and matches the OE AAR design used on these vehicles. The shaft uses a long-male inboard joint, a conventional outboard joint, and the specified spline counts to support proper driveline engagement. TrakMotive TO-86067 is a direct-fit driveline replacement for 2013, 2014, 2015, 2016, and 2017 Lexus LS460 front right applications.
This part cross-references TrakMotive TO-86067 for the same application.
Common Replacement Reasons
- Clicking or popping during turns from worn CV joints
- Vibration during acceleration from a damaged axle shaft
- Grease leakage from a failed CV boot or joint seal
- Excessive driveline play at the front right axle
- Noise or binding caused by internal joint wear
Installation Notes
Verify front right fitment by year, model, and OE AAR axle design before installation. Confirm axle nut thread size M22x1.5 and 32 mm hex size during service. This axle does not include an axle nut, and ABS tone ring hardware is not included. Inspect related suspension and hub components for wear before completing the repair.
Quality Assurance
TrakMotive identifies this axle as a premium-grade replacement and states that the product line is backed by a limited lifetime warranty. The company is ISO 9001:2008 and TS 16949:2009 certified.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2017 | Lexus | LS460 | F Sport | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2016 | Lexus | LS460 | F Sport | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2015 | Lexus | LS460 | F Sport | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2014 | Lexus | LS460 | F Sport | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2013 | Lexus | LS460 | F Sport | Front Right | OE AAR design; AAR CV Axle Shaft |
