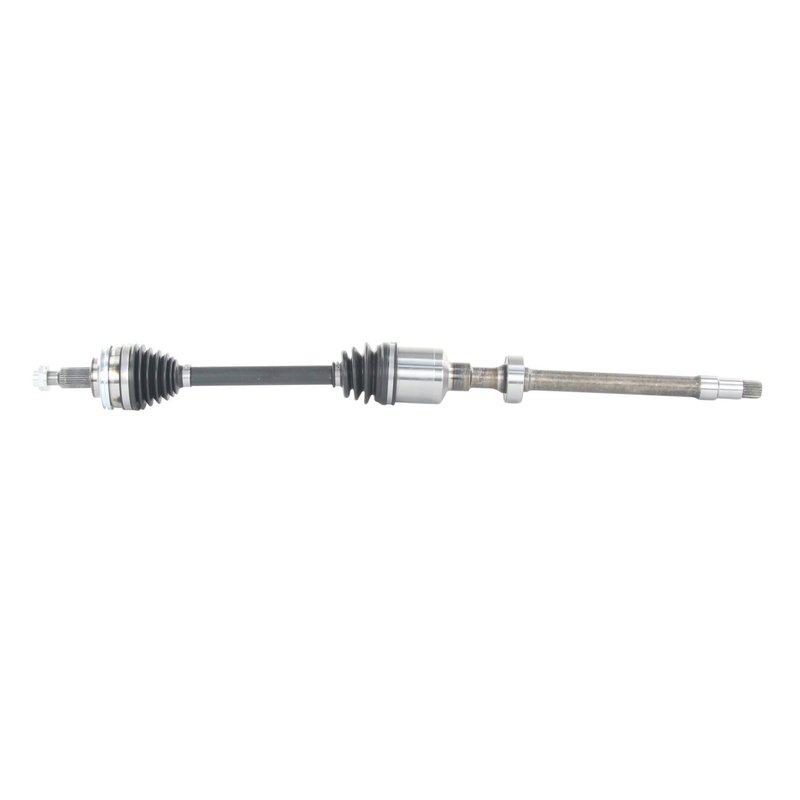

TrakMotive TO-86068 CV Axle Shaft - Front Right
| Brand | TrakMotive TO-86068 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (in) | .79 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Long-male |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 23 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 38.38 |
| Overall Compressed Length (mm) | 975 |
| Overall Extended Length (in) | 40.5 |
| Overall Extended Length (mm) | 1029 |
| Product line | AAR CV Axle Shaft |
| Fits | Lexus · 12 vehicles |
AAR CV axle shaft. Premium driveline replacement for dependable power transfer.
ABS-ready design. Fits non-ABS applications when no tone ring is needed.
Certified quality. Built by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive TO-86068 for the same application. See all 1.
OE-Style Front Right CV Axle for Lexus IS
TrakMotive TO-86068 is a premium CV axle shaft for the front right position on select Lexus IS applications. It is built to match OE AAR design requirements for direct replacement service on 2014-2019 Lexus IS250, IS350, and IS300 models.
Key Features
- Front right CV axle shaft for select Lexus IS fitments
- OE AAR design for factory-style replacement
- Premium grade construction
- Long-male inboard joint type with conventional outboard joint
- 23 inboard splines and 30 outboard splines
- Axle nut thread size: M22x1.5
- Axle nut socket size: 32 mm
- Overall compressed length: 975 mm (38.38 in)
- Overall extended length: 1029 mm (40.5 in)
- ABS tone ring not included
Product Details
This TrakMotive AAR CV Axle Shaft is engineered for front right replacement on Lexus IS250, Lexus IS350, and Lexus IS300 models with OE AAR design. Part number TO-86068 is specified for 2014-2015 Lexus IS250, 2014-2019 Lexus IS350, and 2016-2019 Lexus IS300 applications. TrakMotive identifies this axle as a premium driveline component built by an ISO 9001:2008 and TS 16949:2009 certified company, with ABS axles noted to fit non-ABS applications unless otherwise stated.
This part cross-references TrakMotive TO-86068 for the same application.
Common Repair Applications
- Front right axle replacement for clicking or popping during turns
- Repair for vibration under acceleration from a worn CV joint
- Replacement for torn boots or grease loss at the axle assembly
- Service for axle shaft noise caused by internal joint wear
- Direct replacement when restoring OE AAR-style driveline fitment
Installation Notes
Verify the axle nut thread size, hex size, spline counts, and compressed length before installation. This axle uses a 32 mm axle nut socket size and M22x1.5 thread specification. Confirm vehicle configuration and front right position fitment on the exact Lexus IS model and year before ordering. The axle nut is not included.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The brand also notes ISO 9001:2008 and TS 16949:2009 certification for manufacturing quality control.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2019 | Lexus | IS300 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2019 | Lexus | IS350 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2018 | Lexus | IS300 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2018 | Lexus | IS350 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2017 | Lexus | IS300 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2017 | Lexus | IS350 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2016 | Lexus | IS300 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2016 | Lexus | IS350 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2015 | Lexus | IS250 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2015 | Lexus | IS350 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2014 | Lexus | IS250 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2014 | Lexus | IS350 | Front Right | OE AAR design; AAR CV Axle Shaft |
