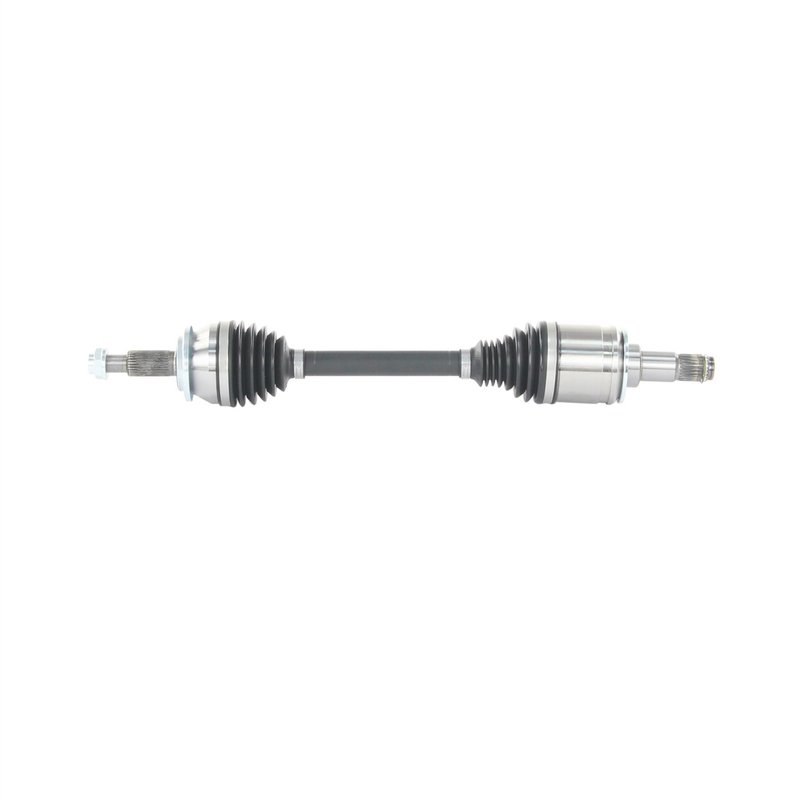

TrakMotive TO-86069 CV Axle Shaft - Front Left

Front Left CV Axle Shaft for Toyota Camry and Lexus ES350

TrakMotive TO-86069 is a premium front left CV axle shaft for OE AAR design applications on select Toyota Camry and Lexus ES350 models. It is built for vehicles that use a male inboard joint, a conventional outboard joint, and no ABS tone ring.

Key Features

• Premium-grade CV axle shaft for driveline replacement
• Front left position
• Male inboard joint with 24 inboard splines
• Conventional outboard joint with 30 outboard splines
• No ABS tone ring included; 0 ABS ring tooth count
• Axle nut thread size: M22x1.5
• Axle nut hex size: 32 mm
• Overall compressed length: 671 mm; overall extended length: 725 mm
• Interchange reference: NCV69236

Detailed Description

This TrakMotive AAR CV Axle Shaft is engineered for OE AAR design fitment on 2021-2024 Toyota Camry front left applications and 2020-2022 Lexus ES350 front left applications. It also fits 2019-2020 Toyota Camry front left models from 09/2019 and 2019 Lexus ES350 front left models from 09/2019. The TO-86069 part number is a direct reference for buyers searching for a front left Toyota Camry CV axle shaft or Lexus ES350 CV axle replacement with the correct spline count and dimensions.

The AAR product line focuses on OE-style driveline replacement coverage for specific vehicle configurations. This axle uses a 24-spline inboard connection and a 30-spline outboard connection, with no ABS tone ring and no axle nut included. TrakMotive TO-86069 is manufactured by an ISO 9001:2008 and TS 16949:2009 certified company.

Common Problems This Part Can Address

• Clicking or popping noises during turns from a worn CV joint
• Vibration or shudder during acceleration
• Grease leakage from a damaged axle boot or joint
• Excessive drivetrain play from a worn front axle assembly
• Noise or binding caused by a failing front left axle shaft

Installation Notes and Tips

Verify front left fitment by year, model, and OE AAR design before installation. Confirm axle nut thread size M22x1.5 and 32 mm hex size during service, and compare spline counts and compressed length to the original axle. This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.

Quality Assurance

TrakMotive backs this CV axle shaft with a limited lifetime warranty. The manufacturer states that ABS axles fit non-ABS applications unless otherwise noted, and production is supported by ISO 9001:2008 and TS 16949:2009 certification.
