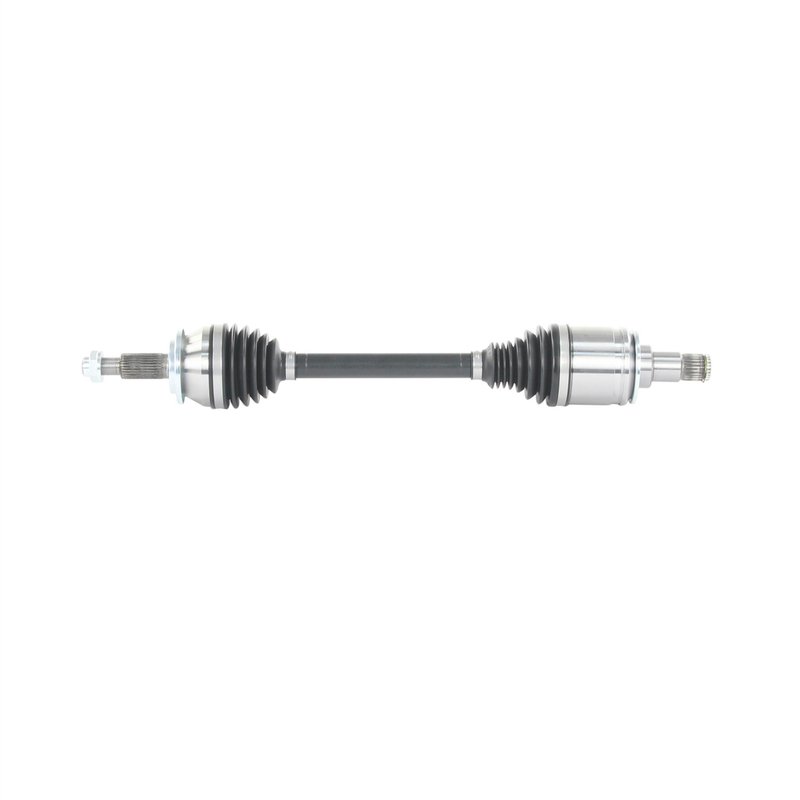

TrakMotive TO-86073 CV Axle Shaft - Front Left
| Brand | TrakMotive TO-86073 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (in) | .79 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Male |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 24 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 26.69 |
| Overall Compressed Length (mm) | 678 |
| Overall Extended Length (in) | 28.81 |
| Overall Extended Length (mm) | 732 |
| Product line | AAR CV Axle Shaft |
| Fits | Lexus and Toyota · 20 vehicles |
Premium grade. Built as a CV axle shaft for dependable driveline replacement.
ABS-ready design. Fits non-ABS applications when no ABS tone ring is needed.
Certified quality. Made by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive TO-86073, NCV69191 and NCV69209 for the same application. See all 4.
OE-Style Front Left CV Axle Shaft
TrakMotive TO-86073 is a premium CV axle shaft for front left applications on select Toyota and Lexus vehicles with OE AAR design. It is built for direct replacement service on the listed Camry, ES300h, Avalon, and RAV4 applications, with fitment coverage across 2018-2024 model years.
The AAR CV Axle Shaft line focuses on OE-style geometry and application-specific fitment. TrakMotive TO-86073 follows that approach with the correct spline counts, compressed and extended lengths, and axle nut specifications for the listed vehicles.
- Front left CV axle shaft for select Toyota and Lexus applications
- OE AAR design for the listed fitments
- Premium grade replacement part
- Inboard joint type: male
- Outboard joint type: conventional
- Inboard splines: 24
- Outboard splines: 30
- Overall compressed length: 26.69 in. (678 mm)
- Overall extended length: 28.81 in. (732 mm)
- Axle nut thread size: M22x1.5
- Axle nut hex size: 32 mm / 1.25 in.
- ABS tone ring not included
Vehicle Fitment
- Fits 2020-2024 Toyota Camry, front left; OE AAR design; AAR CV Axle Shaft
- Fits 2021-2023 Lexus ES300h, front left; OE AAR design; AAR CV Axle Shaft
- Fits 2021-2022 Toyota Avalon, front left; OE AAR design; AAR CV Axle Shaft
- Fits 2021-2022 Toyota RAV4, front left; without plug-in hybrid; AAR CV Axle Shaft
- Fits 2019-2020 Lexus ES300h, front left; from 09/2019; AAR CV Axle Shaft
- Fits 2019-2020 Toyota Avalon, front left; from 5/19; AAR CV Axle Shaft
- Fits 2019-2020 Toyota RAV4, front left; from 09/2019; AAR CV Axle Shaft
- Fits 2018-2019 Toyota Camry, front left; from 09/2019; AAR CV Axle Shaft
Common Replacement Uses
- Front left axle replacement for worn or noisy CV joints
- Repair for vibration during acceleration on the listed Toyota and Lexus models
- Replacement for clicking or popping from the front driveline
- Service part for damaged axle splines or seal surfaces
- Direct-fit solution when the original front left axle is no longer serviceable
Installation Notes
Verify the vehicle’s build date, drivetrain configuration, and front left application before ordering. This axle uses a 32 mm axle nut socket size and M22x1.5 thread specification, and the ABS tone ring is not included. For 2021-2022 Toyota RAV4 applications, this part is for vehicles without plug-in hybrid.
Quality Assurance
TrakMotive TO-86073 is backed by a limited lifetime warranty. The manufacturer states that its products are produced by an ISO 9001:2008 and TS 16949:2009 certified company, supporting consistent manufacturing control for driveline replacement parts. This part cross-references Monroe Shocks & Struts (e.g., NCV69191, NCV69209) for the same application.
| Year | Make | Model | Drive Type | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2024 | Toyota | Camry | — | 2.5L | L4 | — | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2023 | Lexus | ES300h | — | — | — | — | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2023 | Toyota | Camry | — | 2.5L | L4 | — | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2022 | Lexus | ES300h | — | — | — | — | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2022 | Toyota | Avalon | — | 2.5L | L4 | FULL HYBRID EV-GAS (FHEV) | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2022 | Toyota | Camry | — | 2.5L | L4 | FULL HYBRID EV-GAS (FHEV) | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2022 | Toyota | RAV4 | AWD | — | — | FULL HYBRID EV-GAS (FHEV) | Front Left | Without Plug-in Hybrid; AAR CV Axle Shaft |
| 2021 | Lexus | ES300h | — | — | — | — | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2021 | Toyota | Avalon | — | 2.5L | L4 | FULL HYBRID EV-GAS (FHEV) | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2021 | Toyota | Camry | — | 2.5L | L4 | FULL HYBRID EV-GAS (FHEV) | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2021 | Toyota | RAV4 | AWD | — | — | FULL HYBRID EV-GAS (FHEV) | Front Left | Without Plug-in Hybrid; AAR CV Axle Shaft |
| 2020 | Lexus | ES300h | — | — | — | — | Front Left | From 09/2019; AAR CV Axle Shaft |
| 2020 | Toyota | Avalon | — | 2.5L | L4 | FULL HYBRID EV-GAS (FHEV) | Front Left | From 5/19; AAR CV Axle Shaft |
| 2020 | Toyota | Camry | — | 2.5L | L4 | FULL HYBRID EV-GAS (FHEV) | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2020 | Toyota | RAV4 | AWD | — | — | FULL HYBRID EV-GAS (FHEV) | Front Left | From 09/2019; AAR CV Axle Shaft |
| 2019 | Lexus | ES300h | — | — | — | — | Front Left | From 09/2019; AAR CV Axle Shaft |
| 2019 | Toyota | Avalon | — | 2.5L | L4 | FULL HYBRID EV-GAS (FHEV) | Front Left | From 5/19; AAR CV Axle Shaft |
| 2019 | Toyota | Camry | — | 2.5L | L4 | FULL HYBRID EV-GAS (FHEV) | Front Left | From 09/2019; AAR CV Axle Shaft |
| 2019 | Toyota | RAV4 | AWD | — | — | FULL HYBRID EV-GAS (FHEV) | Front Left | From 09/2019; AAR CV Axle Shaft |
| 2018 | Toyota | Camry | — | 2.5L | L4 | FULL HYBRID EV-GAS (FHEV) | Front Left | From 09/2019; AAR CV Axle Shaft |
