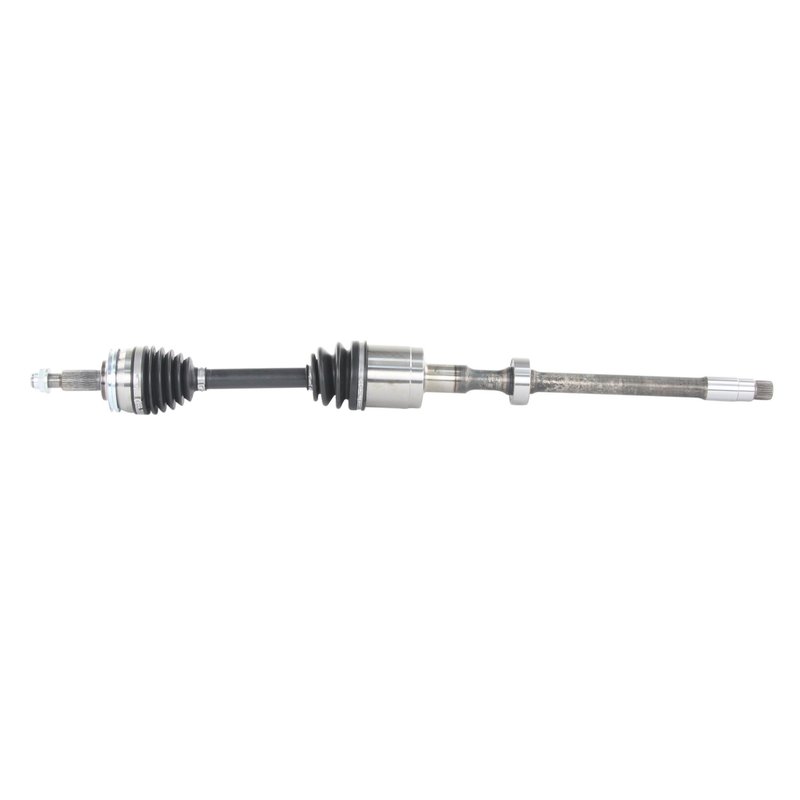

TrakMotive TO-86077 CV Axle Shaft - Front Right
OE Quality 60-Day Returns
TrakMotive
 AAR CV Axle Shaft

TrakMotive TO-86077 CV Axle Shaft - Front Right

Brand TrakMotive TO-86077
Position Front Right
ABS Ring Tooth Count 0
ABS Tone Ring Included No
Axle Nut Height (in) .79
Axle Nut Height (mm) 20
Axle Nut Hex Size (in) 1.25
Axle Nut Hex Size (mm) 32
Axle Nut Included No
Axle Nut Socket Size 32
Axle Nut Thread Size M22x1.5
Grade Type Premium
Inboard Joint Type Long-male
Number Of Inboard Joint Bolt Holes 0
Number Of Inboard Shaft Bolts 0
Number Of Inboard Splines 27
Number Of Outboard Joint Bolt Holes 0
Number Of Outboard Shaft Bolts 0
Number Of Outboard Splines 30
Outboard Joint Type Conventional
Overall Compressed Length (in) 40.19
Overall Compressed Length (mm) 1021
Overall Extended Length (in) 42.56
Overall Extended Length (mm) 1081
Product line AAR CV Axle Shaft
Fits Lexus · 6 vehicles

OE-style replacement. AAR CV axle shaft for straightforward driveline service.

ABS-ready design. Fits non-ABS applications when no tone ring is needed.

Premium construction. ISO 9001:2008 and TS 16949:2009 certified manufacturing.

Cross-references TrakMotive TO-86077 and NCV69285 for the same application. See all 2.

$161.81Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $161.81
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all CV Axle Shaft options

OE AAR CV Axle Shaft for Lexus LS500

The TrakMotive TO-86077 is a front right CV axle shaft for select Lexus LS500 and LS500h applications with OE AAR design. It is built as a premium driveline replacement for vehicles that need precise spline engagement, correct compressed and extended length, and proper fitment at the front right position.

  • Front right CV axle shaft for 2018-2020 Lexus LS500 and LS500h
  • OE AAR design for direct replacement use
  • Premium grade construction
  • Inboard joint type: Long-Male
  • Outboard joint type: Conventional
  • 27 inboard splines and 30 outboard splines
  • Axle nut thread size: M22x1.5
  • Axle nut hex size: 32 mm
  • ABS tone ring not included

Product Details

TrakMotive AAR CV Axle Shaft TO-86077 is engineered for the front right side of the Lexus LS500 and Lexus LS500h from 2018 through 2020. The shaft measures 40.19 inches compressed and 42.56 inches extended, with a 32 mm axle nut hex size and M22x1.5 thread specification. This axle is built without an ABS tone ring and uses a long-male inboard joint with a conventional outboard joint for the specified OE AAR layout.

This part cross-references Monroe Shocks & Struts (e.g., NCV69285) for the same application. The TrakMotive TO-86077 is a direct-fit driveline service part for Lexus LS500 front right axle replacement needs.

Common Repair Uses

  • Restoring driveline function after CV joint wear
  • Replacing a damaged or noisy front right axle shaft
  • Correcting vibration caused by worn axle components
  • Addressing spline or joint fitment issues on OE AAR setups
  • Servicing a Lexus LS500 or LS500h front axle with the proper OE-style dimensions

Installation Notes and Tips

Verify front right fitment, spline count, axle nut thread size, and overall shaft length before installation. This axle does not include an axle nut, and ABS axles fit non-ABS applications unless otherwise noted by the vehicle listing. Confirm the vehicle uses the OE AAR design shown in the fitment data for the Lexus LS500 and LS500h.

Quality Assurance

TrakMotive lists this AAR CV axle shaft as a premium-grade part and backs it with a limited lifetime warranty. The manufacturer is ISO 9001:2008 and TS 16949:2009 certified, supporting consistent production and quality control standards.

Related reading

This part fits 6 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2020LexusLS500Front RightOE AAR design; AAR CV Axle Shaft
2020LexusLS500hFront RightOE AAR design; AAR CV Axle Shaft
2019LexusLS500Front RightOE AAR design; AAR CV Axle Shaft
2019LexusLS500hFront RightOE AAR design; AAR CV Axle Shaft
2018LexusLS500Front RightOE AAR design; AAR CV Axle Shaft
2018LexusLS500hFront RightOE AAR design; AAR CV Axle Shaft
Directly replaces or cross-references 2 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
TrakMotive — TO-86077NCV69285
