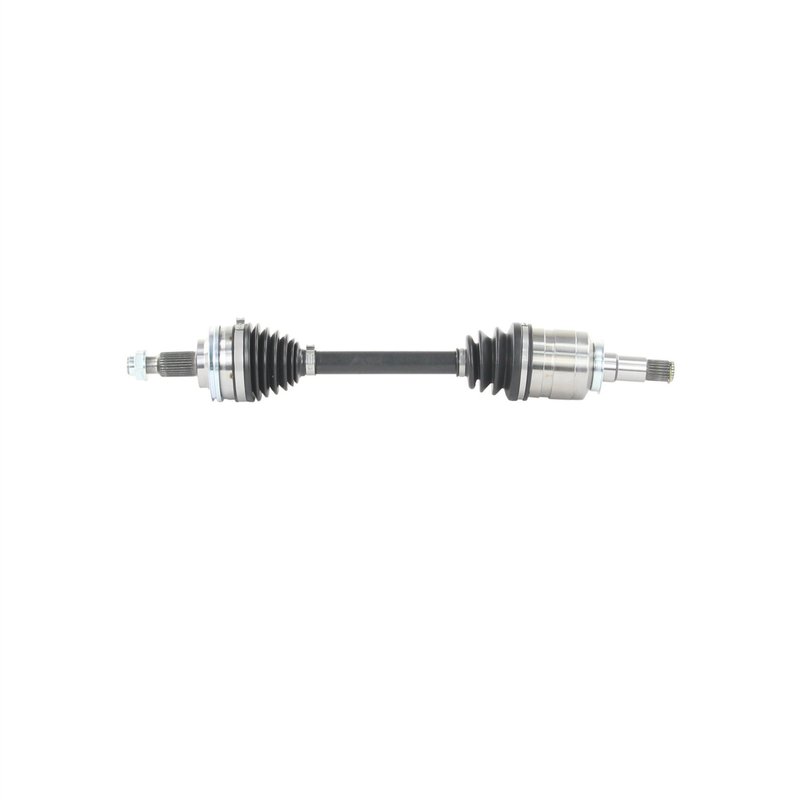

TrakMotive TO-86080 CV Axle Shaft - Front Left
| Brand | TrakMotive TO-86080 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (in) | .79 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Male |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 23 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 23.44 |
| Overall Compressed Length (mm) | 595 |
| Overall Extended Length (in) | 32.06 |
| Overall Extended Length (mm) | 815 |
| Product line | AAR CV Axle Shaft |
| Fits | Lexus · 11 vehicles |
OE-style replacement. AAR CV axle shaft for straightforward installation.
ABS-ready design. Fits non-ABS applications unless otherwise noted.
Certified manufacturing. Built by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive TO-86080 for the same application. See all 1.
TrakMotive TO-86080 Front Left CV Axle Shaft
TrakMotive TO-86080 is a front left CV axle shaft for select Lexus IS models with OE AAR design. It is built as a premium driveline replacement for vehicles that need precise spline engagement, correct compressed and extended length, and proper fitment at the front left position.
Key Features
- Front left CV axle shaft for select Lexus IS300, IS350, and IS250 applications
- OE AAR design for direct replacement fitment
- Premium grade construction
- Inboard joint type: male
- Outboard joint type: conventional
- Inboard splines: 23; outboard splines: 30
- Overall compressed length: 23.44 in. (595 mm)
- Overall extended length: 32.06 in. (815 mm)
- Axle nut thread size: M22x1.5; hex size: 32 mm
- ABS tone ring not included; ABS ring tooth count: 0
Product Details
This TrakMotive AAR CV Axle Shaft is engineered for front left driveline service on 2014-2015 Lexus IS250, 2014-2016 Lexus IS350, 2016-2019 Lexus IS300, and 2018-2019 Lexus IS350. The TO-86080 follows OE AAR design requirements and is built to match the axle geometry and spline counts needed for proper hub and transaxle engagement. TrakMotive identifies this part as a premium-grade replacement and notes ISO 9001:2008 and TS 16949:2009 certified manufacturing practices.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What It Helps Address
- Clicking or popping from a worn front left CV axle
- Vibration during acceleration from a damaged axle shaft
- Grease leakage from a failing CV joint boot or joint assembly
- Driveline noise caused by excessive axle wear
- Loss of smooth power transfer to the front wheel
Installation Notes and Tips
Verify front left fitment by year, model, and OE AAR design before installation. Confirm axle nut thread size M22x1.5 and 32 mm hex requirements during service. ABS axles fit non-ABS applications unless otherwise noted, and this axle does not include an ABS tone ring.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The brand also states ISO 9001:2008 and TS 16949:2009 certified company standards for manufacturing control.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2019 | Lexus | IS300 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2019 | Lexus | IS350 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2018 | Lexus | IS300 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2018 | Lexus | IS350 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2017 | Lexus | IS300 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2016 | Lexus | IS300 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2016 | Lexus | IS350 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2015 | Lexus | IS250 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2015 | Lexus | IS350 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2014 | Lexus | IS250 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2014 | Lexus | IS350 | Front Left | OE AAR design; AAR CV Axle Shaft |
