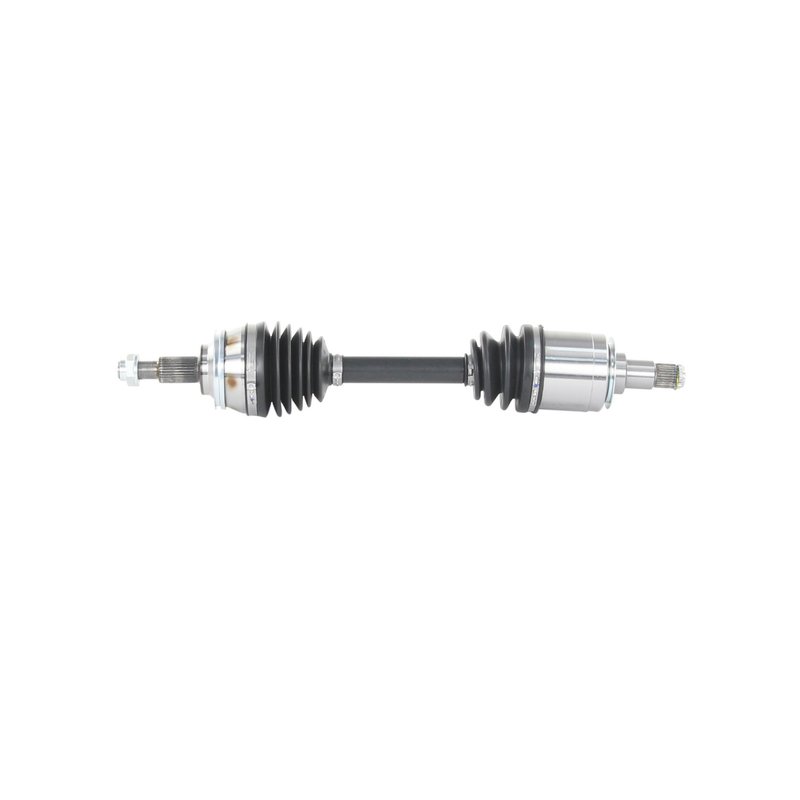

TrakMotive TO-86083 CV Axle Shaft - Front Left

Front Left CV Axle Shaft for Lexus LS460

TrakMotive TO-86083 is a premium CV axle shaft for the front left position on select Lexus LS460 models. It is built to match the OE AAR design used on 2013-2017 Lexus LS460 applications, with fitment focused on driveline accuracy and smooth power transfer.

The TrakMotive AAR CV Axle Shaft line is positioned for OE-style replacement needs where correct spline count, joint style, and compressed length matter. This TO-86083 axle is a direct-fit option for the front left side on Lexus LS460 vehicles with the listed configuration.

Key Features

• Fits 2013-2017 Lexus LS460, front left
• OE AAR design for the listed application
• Premium grade CV axle shaft
• Inboard joint type: male
• Outboard joint type: conventional
• 27 inboard splines and 30 outboard splines
• Overall compressed length: 23.88 in. (607 mm)
• Overall extended length: 26 in. (661 mm)
• No ABS tone ring included
• Axle nut thread size: M24x1.5

Detailed Description

TrakMotive TO-86083 is a front left CV axle shaft engineered for 2013-2017 Lexus LS460 models. It uses a male inboard joint and a conventional outboard joint, along with the specified spline counts and shaft lengths needed for proper fitment in the listed application. This part number, TO-86083, is intended for buyers replacing a worn or damaged axle on a Lexus LS460 with OE AAR design requirements.

The TrakMotive AAR CV Axle Shaft product line focuses on application-specific driveline replacement parts. For this Lexus LS460 front left axle, the design details include a 32 mm axle nut hex size, 1.25 in. axle nut hex size, and no ABS tone ring included. The axle nut is not included.

This part cross-references TrakMotive TO-86083 for the same application.

What It Helps Address

• Clicking or popping noises during turns from a worn CV joint
• Vibration or shudder during acceleration
• Axle shaft wear that affects driveline smoothness
• Fitment issues caused by incorrect spline count or shaft length
• Replacement needs for a damaged front left axle on a Lexus LS460

Installation Notes and Tips

Verify the vehicle is a 2013-2017 Lexus LS460, front left application before ordering. Confirm axle nut thread size, spline counts, and overall length against the original part to ensure correct installation. Because this axle does not include an ABS tone ring, it is suited to non-ABS applications unless otherwise noted by the vehicle configuration.

Quality Assurance

TrakMotive states that this axle is backed by a limited lifetime warranty. The company also notes ISO 9001:2008 and TS 16949:2009 certification, supporting controlled manufacturing and quality management for driveline components.
