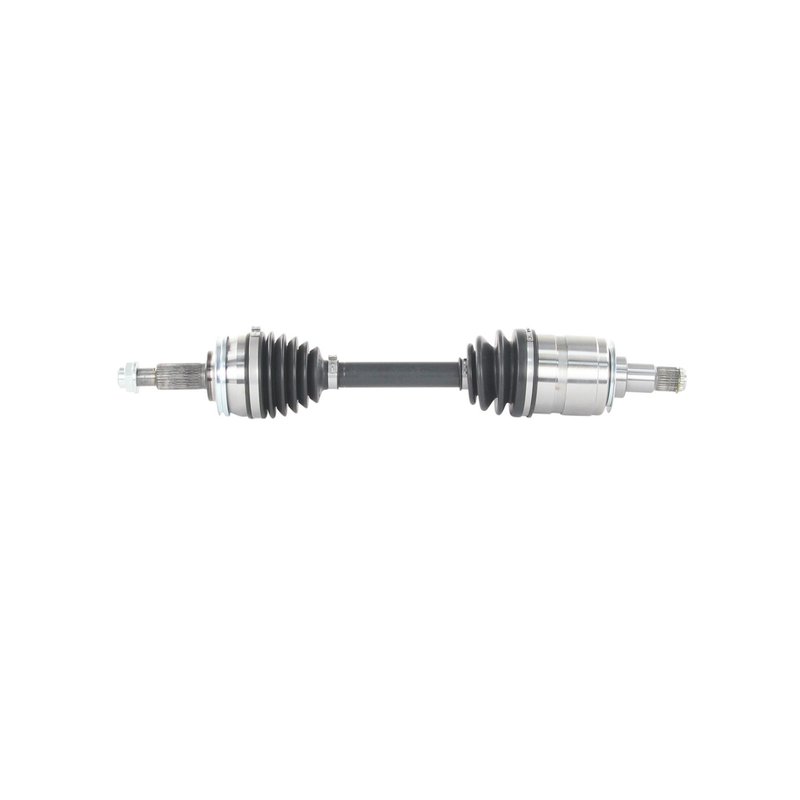

TrakMotive TO-86084 CV Axle Shaft - Front Left

Brand	TrakMotive TO-86084
Position	Front Left
ABS Ring Tooth Count	0
ABS Tone Ring Included	No
Axle Nut Height (in)	.79
Axle Nut Height (mm)	20
Axle Nut Hex Size (in)	1.25
Axle Nut Hex Size (mm)	32
Axle Nut Included	No
Axle Nut Socket Size	32
Axle Nut Thread Size	M22x1.5
Grade Type	Premium
Inboard Joint Type	Male
Number Of Inboard Joint Bolt Holes	0
Number Of Inboard Shaft Bolts	0
Number Of Inboard Splines	27
Number Of Outboard Joint Bolt Holes	0
Number Of Outboard Shaft Bolts	0
Number Of Outboard Splines	30
Outboard Joint Type	Conventional
Overall Compressed Length (in)	23.88
Overall Compressed Length (mm)	607
Overall Extended Length (in)	26.25
Overall Extended Length (mm)	668
Product line	AAR CV Axle Shaft
Fits	Lexus · 6 vehicles

AAR CV axle shaft. Premium replacement for dependable driveline performance.

ABS-ready design. Fits non-ABS applications unless otherwise noted.

Certified quality. Built by an ISO 9001:2008 and TS 16949:2009 certified company.

Cross-references TrakMotive TO-86084 and NCV69286 for the same application. See all 2.

$128.98Free shipping

In stock · usually ships same day before 1pm CST

Step 1 — Confirm fitment

Free return shipping if it doesn't fit when you check fitment here first.

Confirm position

Select your vehicle to confirm fitment

Verify this part fits before purchasing — free returns if it doesn't

Step 2 — Quantity

Free shipping to the continental U.S.

Free returns within 60 days if it doesn't fit when fitment is verified.

Not what you need? See all CV Axle Shaft options

Front Left CV Axle Shaft for Lexus LS500

TrakMotive TO-86084 is a premium CV axle shaft for the front left position on select Lexus LS500 and LS500h models. It follows the OE AAR design for the listed applications and is built for direct driveline replacement on 2018-2020 vehicles.

Key Features

Fits 2018-2020 Lexus LS500, front left
Fits 2018-2020 Lexus LS500h, front left
OE AAR design for the listed applications
Premium grade CV axle shaft
Male inboard joint with conventional outboard joint
27 inboard splines and 30 outboard splines
No ABS tone ring included; ABS ring tooth count: 0
Overall compressed length: 23.88 in. (607 mm)
Overall extended length: 26.25 in. (668 mm)
Axle nut thread size: M22x1.5; 32 mm hex size

Detailed Description

TrakMotive TO-86084 is a front left CV axle shaft for Lexus LS500 and Lexus LS500h applications from 2018 through 2020. This AAR CV Axle Shaft is engineered around the OE AAR design and uses a male inboard joint, conventional outboard joint, 27 inboard splines, and 30 outboard splines for the specified fitment. The axle is supplied without an axle nut and without an ABS tone ring, and it is listed for non-ABS applications unless otherwise noted by the vehicle configuration.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application. TrakMotive TO-86084 is a direct-fit driveline replacement for owners searching for a 2018-2020 Lexus LS500 front left CV axle shaft or a 2018-2020 Lexus LS500h front left CV axle shaft.

What It Helps Fix

Clicking or popping during turns from a worn CV joint
Vibration under acceleration caused by axle wear
Grease leakage from a damaged axle boot or joint
Driveline noise from spline or joint wear
Loss of smooth power transfer to the front left wheel

Installation Notes and Tips

Verify axle nut thread size, hex size, spline count, and overall length against the original part before installation. Confirm vehicle configuration and ABS requirements for the listed Lexus LS500 and LS500h applications. Use the correct torque procedure for the axle nut and inspect related suspension and hub components during replacement.

Quality Assurance

TrakMotive identifies this AAR CV axle shaft as a premium-grade replacement and states that the company is ISO 9001:2008 and TS 16949:2009 certified. Manufacturer coverage includes a limited lifetime warranty.

This part fits 6 vehicles

Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

Year	Make	Model	Position	Notes
2020	Lexus	LS500	Front Left	OE AAR design; AAR CV Axle Shaft
2020	Lexus	LS500h	Front Left	OE AAR design; AAR CV Axle Shaft
2019	Lexus	LS500	Front Left	OE AAR design; AAR CV Axle Shaft
2019	Lexus	LS500h	Front Left	OE AAR design; AAR CV Axle Shaft
2018	Lexus	LS500	Front Left	OE AAR design; AAR CV Axle Shaft
2018	Lexus	LS500h	Front Left	OE AAR design; AAR CV Axle Shaft
No rows match your filter.

Directly replaces or cross-references 2 part numbers

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.

TrakMotive — TO-86084NCV69286
