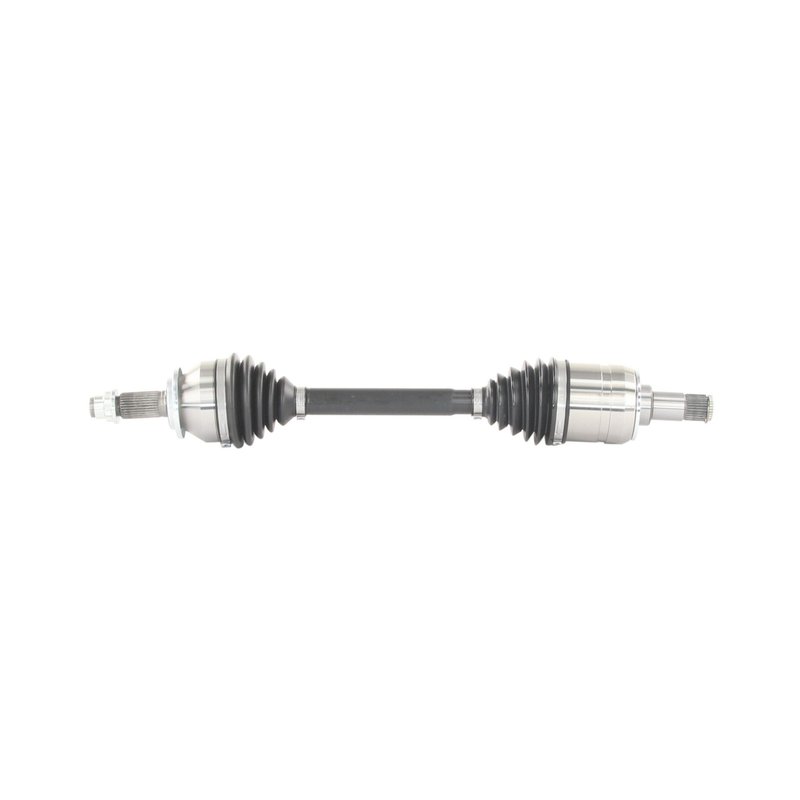

TrakMotive TO-86086 CV Axle Shaft - Front
| Brand | TrakMotive TO-86086 |
|---|---|
| Position | Front |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 26 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M26x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 30 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 28.125 |
| Overall Compressed Length (mm) | 714 |
| Overall Extended Length (in) | 30.375 |
| Product line | AAR CV Axle Shaft |
| Fits | Toyota · 1 vehicle |
OE-style replacement. AAR CV axle shaft for straightforward service fit.
Premium grade. Built with thermoplastic boots and spline connections.
Axle nut included. Stake-lock design helps simplify installation.
Cross-references TrakMotive TO-86086 for the same application. See all 1.
Front CV Axle Shaft for 2023 Toyota bZ4X
TrakMotive TO-86086 is a premium front CV axle shaft for the 2023 Toyota bZ4X. It is built for OE AAR design applications and includes a matching axle nut for the specified fitment.
Key Features
- Front CV axle shaft for the 2023 Toyota bZ4X
- OE AAR design application
- Premium grade construction
- 30-spline inboard and 30-spline outboard shaft connection
- Thermoplastic boot material on both joints
- Conventional outboard joint type with male inboard joint
- Axle nut included, M26x1.5 thread, 32 mm socket size
- ABS tone ring not included; ABS ring tooth count is 0
Detailed Description
TrakMotive TO-86086 is a front CV axle shaft engineered for the 2023 Toyota bZ4X with OE AAR design requirements. This axle shaft uses spline connections at both ends, with 30 inboard splines and 30 outboard splines, and measures 28.125 inches compressed and 30.375 inches extended. The thermoplastic boot material and conventional outboard joint design support consistent driveline operation in the front axle position. TrakMotive TO-86086 is a direct-fit driveline replacement for the 2023 Toyota bZ4X, front, and it is also identified by the same part number in interchange listings.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Problems This Part Can Address
- Clicking or popping noises during turns from a worn front CV joint
- Vibration or shudder from a damaged axle shaft
- Grease leakage from a torn or deteriorated CV boot
- Excessive driveline play from spline or joint wear
- Loss of smooth power transfer to the front wheels
Installation Notes and Tips
Verify the axle nut thread size, socket size, and locking style before installation. Confirm front-position fitment on the 2023 Toyota bZ4X and compare spline count, compressed length, and extended length to the original axle shaft. Because this application uses no ABS tone ring, confirm the vehicle configuration matches the listed OE AAR design requirements before replacement.
Quality Assurance
TrakMotive manufactures this AAR CV axle shaft as an ISO 9001:2008 and TS 16949:2009 certified company. The part is backed by a limited lifetime warranty.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2023 | Toyota | bZ4X | Front | OE AAR design; AAR CV Axle Shaft |
