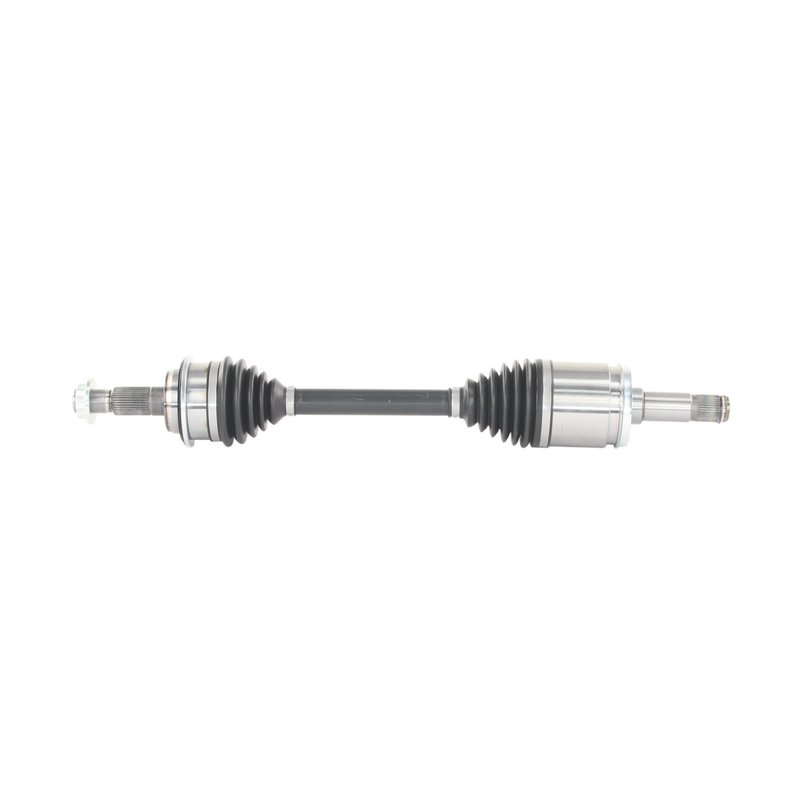

TrakMotive TO-86088 CV Axle Shaft - Front Right
| Brand | TrakMotive TO-86088 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Dodec |
| Axle Nut Height (in) | .75 |
| Axle Nut Height (mm) | 19 |
| Axle Nut Hex Size (in) | 1.5 |
| Axle Nut Hex Size (mm) | 39 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.75 |
| Axle Nut Length (mm) | 45 |
| Axle Nut Locking Type | Standard |
| Axle Nut Socket Size | 39 |
| Axle Nut Thread Size | M32x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 34 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 36 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 30.69 |
| Overall Compressed Length (mm) | 780 |
| Overall Extended Length (in) | 33 |
| Product line | CV Axle Shaft |
| Fits | Toyota · 1 vehicle |
OE-style replacement. Direct-fit CV axle shaft for straightforward installation.
Premium-grade construction. Built with thermoplastic boots and spline connections for dependable operation.
Axle nut included. Comes with a standard-locking nut for a complete install.
Cross-references TrakMotive TO-86088 for the same application. See all 1.
Front Right CV Axle Shaft for Toyota Tundra
TrakMotive TO-86088 is a premium CV axle shaft for the front right position on the 2022 Toyota Tundra. Built for direct driveline replacement, it uses a 34-spline inboard connection and 36-spline outboard connection to match the listed application.
Key Features
- Fits 2022 Toyota Tundra, front right
- Premium-grade CV axle shaft for driveline repair
- Inboard joint type: male with spline connection
- Outboard joint type: conventional with spline connection
- Thermoplastic boots on both inboard and outboard joints
- Includes axle nut with M32x1.5 thread size
- Overall compressed length: 30.69 in. (780 mm)
- Overall extended length: 33 in. (838 mm)
- ABS tone ring not included; ABS ring tooth count: 0
Detailed Description
TrakMotive TO-86088 is a CV axle shaft engineered for the front right side of the 2022 Toyota Tundra. This axle shaft is specified with 34 inboard splines, 36 outboard splines, and a conventional outboard joint design, making it a direct-fit driveline service part for the listed vehicle. The included axle nut features a 39 mm hex size and M32x1.5 thread specification. TrakMotive TO-86088 cross-references TrakMotive TO-86088 for the same application.
The TrakMotive CV Axle Shaft line focuses on replacement driveline components built to meet application-specific fitment requirements. This part is intended for non-ABS applications unless otherwise noted by the vehicle listing, and it is backed by the manufacturer’s limited lifetime warranty. The company states its manufacturing is supported by ISO 9001:2008 and TS 16949:2009 certification.
What This Part Helps Repair
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder under acceleration from axle wear
- Grease leakage from damaged CV boots
- Axle shaft play caused by spline or joint wear
- Front right driveline noise on a 2022 Toyota Tundra
Installation Notes and Tips
Verify front right fitment before installation and confirm spline count, axle length, and axle nut thread size against the original part. Inspect the hub, seals, and surrounding suspension components for wear before installing the new axle shaft. Use the included axle nut only if it matches the vehicle’s service requirements and torque specifications.
Quality Assurance
TrakMotive TO-86088 is produced by an ISO 9001:2008 and TS 16949:2009 certified company and is covered by a limited lifetime warranty. The part is built as a premium replacement for the specified Toyota Tundra application.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2022 | Toyota | Tundra | TRD Pro | Front Right | Standard Duty Replacement; CV Axle Shaft |
