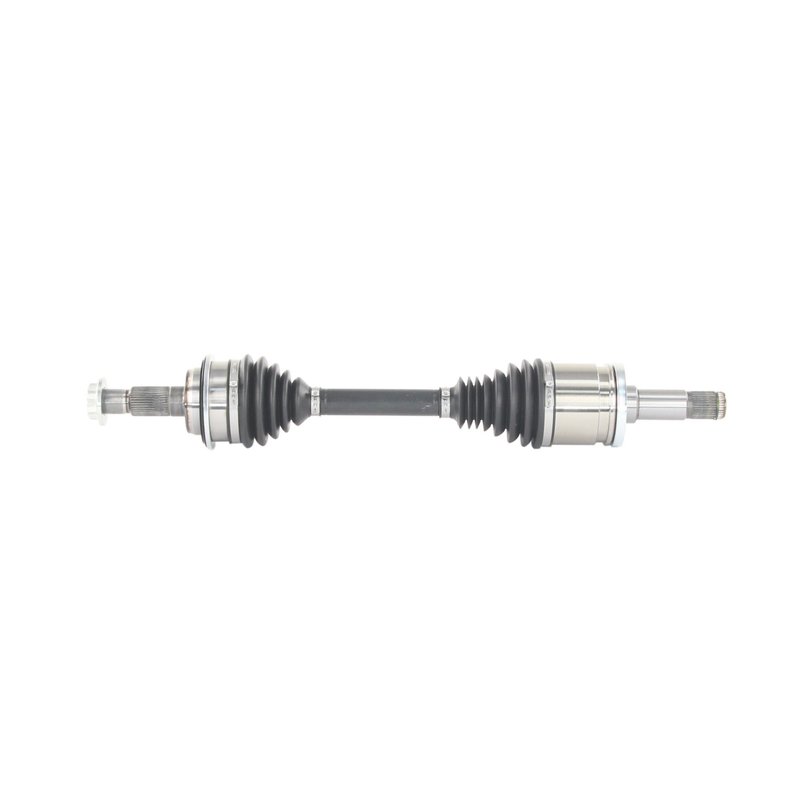

TrakMotive TO-86089 CV Axle Shaft - Front Left
| Brand | TrakMotive TO-86089 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Dodec |
| Axle Nut Height (in) | .75 |
| Axle Nut Height (mm) | 19 |
| Axle Nut Hex Size (in) | 1.5 |
| Axle Nut Hex Size (mm) | 39 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.75 |
| Axle Nut Length (mm) | 45 |
| Axle Nut Locking Type | Standard |
| Axle Nut Socket Size | 39 |
| Axle Nut Thread Size | M32x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 34 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 36 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 28.81 |
| Overall Compressed Length (mm) | 733 |
| Overall Extended Length (in) | 30.875 |
| Product line | AAR CV Axle Shaft |
| Fits | Toyota · 1 vehicle |
OE-style replacement. AAR CV axle shaft for straightforward fit and function.
Thermoplastic boots. Help protect the joints from dirt and moisture.
Included axle nut. Saves time during installation.
Cross-references TrakMotive TO-86089 and NCV69292 for the same application. See all 2.
2022 Toyota Tundra Front Left CV Axle Shaft
TrakMotive TO-86089 is an AAR CV axle shaft for the front left position on the 2022 Toyota Tundra. It is built as a premium driveline replacement with OE-style spline connections and the correct axle nut included for service work.
Key Features
- Fits 2022 Toyota Tundra, front left
- TrakMotive AAR CV Axle Shaft, part number TO-86089
- Premium-grade replacement for driveline service
- 34 inboard splines and 36 outboard splines
- Male inboard joint with spline connection style
- Conventional outboard joint design
- Thermoplastic boots on the inboard and outboard joints
- Axle nut included; M32x1.5 thread, 39 mm hex size
- ABS tone ring not included; 0 ABS ring tooth count
- Overall compressed length: 28.81 in; extended length: 30.875 in
Product Details
This TrakMotive CV axle shaft is engineered for the 2022 Toyota Tundra front left application with OE AAR design details. The TO-86089 uses a 34-spline inboard connection and a 36-spline outboard connection, along with thermoplastic boot materials for both joints. TrakMotive TO-86089 is also backed by the brand’s limited lifetime warranty and produced by an ISO 9001:2008 and TS 16949:2009 certified company.
TrakMotive’s AAR CV Axle Shaft line focuses on direct-fit driveline replacement parts for vehicles that require accurate spline counts, joint style, and compressed length. For this Toyota Tundra front left axle shaft, the OE AAR design reference helps match the original driveline layout.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Problems This Part Addresses
- Clicking or popping from a worn front axle joint
- Vibration during acceleration from a damaged CV axle
- Grease leakage from torn axle boots
- Excessive driveline play from worn splines or joints
- Noise from a failing front left axle assembly
Installation Notes and Tips
Verify spline counts, axle length, and axle nut thread size before installation. The included axle nut uses an M32x1.5 thread with a 39 mm hex size and dodec head type. ABS tone ring hardware is not included, and this axle is listed with no ABS ring tooth count.
Compatible With 2022 Toyota Tundra, front left. Confirm OE AAR design details against the removed axle before assembly.
Quality Assurance
TrakMotive TO-86089 is manufactured by an ISO 9001:2008 and TS 16949:2009 certified company and carries a limited lifetime warranty.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2022 | Toyota | Tundra | SR5 | Front Left | OE AAR design; AAR CV Axle Shaft |
