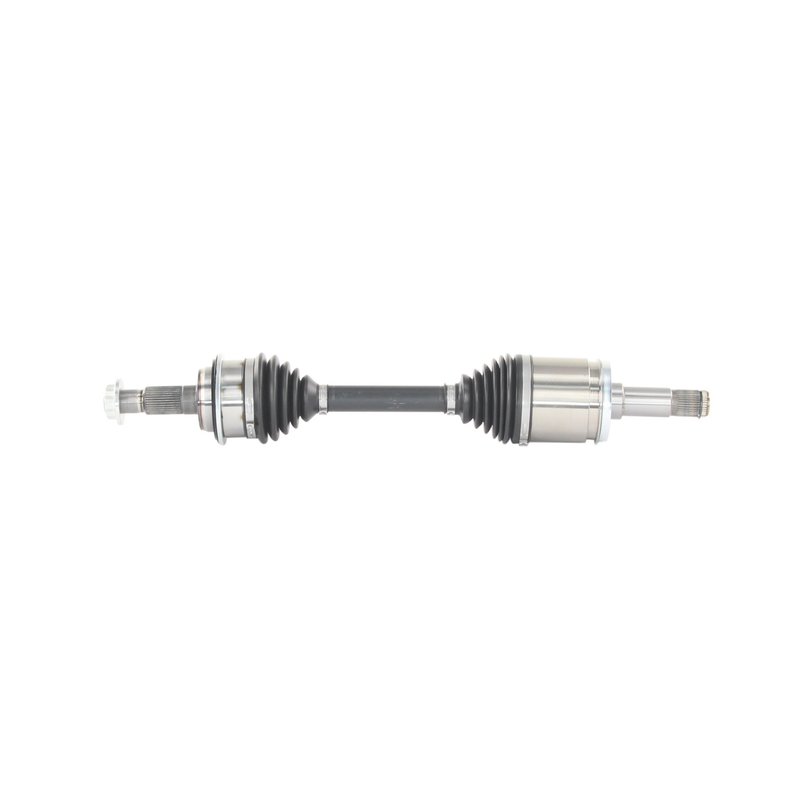

TrakMotive TO-86090 CV Axle Shaft - Front Left
| Brand | TrakMotive TO-86090 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Dodec |
| Axle Nut Height (in) | .75 |
| Axle Nut Height (mm) | 19 |
| Axle Nut Hex Size (in) | 1.5 |
| Axle Nut Hex Size (mm) | 39 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.75 |
| Axle Nut Length (mm) | 45 |
| Axle Nut Locking Type | Standard |
| Axle Nut Socket Size | 39 |
| Axle Nut Thread Size | M32x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 34 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 36 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 28.94 |
| Overall Compressed Length (mm) | 735 |
| Overall Extended Length (in) | 31.19 |
| Product line | CV Axle Shaft |
| Fits | Toyota · 1 vehicle |
Premium grade. Built as a CV axle shaft for dependable driveline replacement.
Thermoplastic boots. Help protect the joints from dirt and moisture.
Included axle nut. Comes ready with the correct nut for installation.
Cross-references TrakMotive TO-86090 for the same application. See all 1.
TrakMotive TO-86090 CV Axle Shaft
TrakMotive TO-86090 is a premium CV axle shaft for the front left position on the 2022 Toyota Tundra. It is built for standard-duty replacement needs and is engineered with the spline counts, boot materials, and axle nut specifications needed for a direct driveline service part.
Key Features
- Fits 2022 Toyota Tundra, front left
- Premium-grade CV axle shaft for driveline repair
- 34 inboard splines and 36 outboard splines
- Thermoplastic boots on both inboard and outboard joints
- Conventional outboard joint and male inboard joint design
- Includes axle nut with M32x1.5 thread size
- No ABS tone ring included; ABS ring tooth count is 0
- Overall compressed length: 28.94 in (735 mm)
- Overall extended length: 31.19 in (793 mm)
Product Details
This TrakMotive CV axle shaft is part of the CV Axle Shaft line and is identified by part number TO-86090. It is intended for the 2022 Toyota Tundra front left application and uses a spline-style shaft connection with 34 splines at the inboard side and 36 splines at the outboard side. The axle includes a standard locking axle nut with a 39 mm socket size, and the shaft is configured without an ABS tone ring.
TrakMotive states that its axle products are backed by a limited lifetime warranty and manufactured under ISO 9001:2008 and TS 16949:2009 certified quality systems. This part cross-references TrakMotive TO-86090 for the same application.
Common Repair Symptoms
- Clicking or popping during turns from a worn CV joint
- Vibration or shudder from a damaged axle shaft
- Grease leakage from torn thermoplastic boots
- Clunking or driveline noise under acceleration
- Front left axle wear on a 2022 Toyota Tundra
Installation Notes
Verify spline count, axle length, and axle nut thread size before installation. Confirm that the vehicle uses a non-ABS axle configuration, since this shaft does not include an ABS tone ring. Inspect related hub, seal, and suspension components during service to help prevent repeat axle failure on the Toyota Tundra.
Quality Assurance
TrakMotive manufactures this CV axle shaft under ISO 9001:2008 and TS 16949:2009 certified processes. The part is covered by a limited lifetime warranty.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2022 | Toyota | Tundra | TRD Pro | Front Left | Standard Duty Replacement; CV Axle Shaft |
