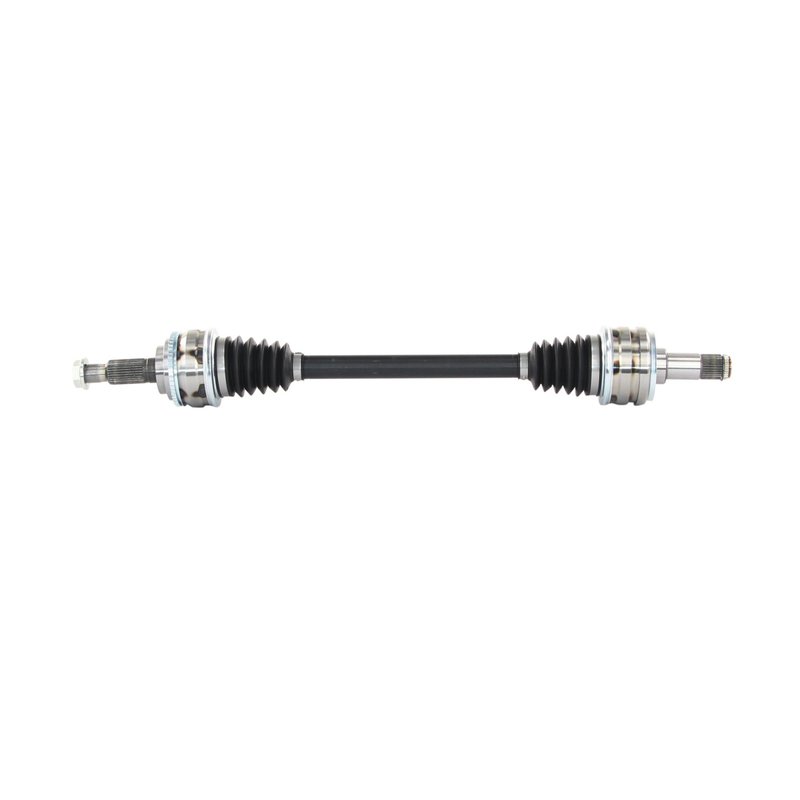

TrakMotive TO-86091 CV Axle Shaft - Rear Left
| Brand | TrakMotive TO-86091 |
|---|---|
| Position | Rear Left |
| ABS Ring Tooth Count | 48 |
| ABS Ring Type | Toothed |
| ABS Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .63 |
| Axle Nut Height (mm) | 16 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Standard |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M26x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 30 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 30.94 |
| Overall Compressed Length (mm) | 787 |
| Product line | CV Axle Shaft |
| Fits | Lexus · 3 vehicles |
OE-style replacement. Built as a CV axle shaft with a direct-fit design.
ABS tone ring included. Supports ABS applications with a toothed ring and 48 teeth.
Premium grade. Thermoplastic boots and spline connections help deliver durable driveline performance.
Cross-references TrakMotive TO-86091 for the same application. See all 1.
Rear Left CV Axle Shaft for Lexus LS430
TrakMotive TO-86091 is a premium CV axle shaft for the rear left position on select Lexus LS430 models. It is built for 2004 Lexus LS430 6 Speed and 2005-2006 Lexus LS430 standard duty replacement applications, with ABS tone ring details matched to the listed fitment.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: TO-86091
- Rear left axle for Lexus LS430 applications
- 48-tooth toothed ABS ring with tone ring included
- 32 mm axle nut with M26x1.5 thread size included
- 30-spline inboard and outboard shaft connection
- Thermoplastic boots on inboard and outboard joints
- Premium grade replacement axle shaft
- Overall compressed length: 30.94 in. (787 mm)
- Overall extended length: 34.125 in. (867 mm)
Product Details
This TrakMotive CV axle shaft is engineered for driveline service on the rear left side of the Lexus LS430. The axle uses a male inboard joint, conventional outboard joint, and spline-style shaft connections with 30 splines at both ends. The included ABS tone ring uses a toothed design with 48 teeth, supporting the listed ABS-equipped fitment. TrakMotive TO-86091 also includes the axle nut specified for the application, with a hex head, 32 mm socket size, and M26x1.5 thread.
TrakMotive’s CV Axle Shaft line focuses on direct-fit driveline replacement parts for passenger vehicles, and this part follows that approach with application-specific dimensions and hardware details for the Lexus LS430. It is a practical choice when replacing a worn rear left axle on a 2004 Lexus LS430 6 Speed or a 2005-2006 Lexus LS430 standard duty replacement setup.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What It Helps Address
- Clicking or popping from a worn CV joint
- Vibration during acceleration or cruising
- Axle shaft play caused by spline or joint wear
- ABS warning concerns related to a damaged tone ring
- Driveline noise from a failing rear left axle assembly
Installation Notes and Tips
Verify rear left fitment against the vehicle’s transmission and ABS configuration before installation. Inspect axle seals, hub splines, and mounting points for wear or damage, and confirm the axle nut thread size and socket size match the vehicle specification. After installation, torque fasteners to the manufacturer’s service specifications and road test the vehicle to confirm smooth operation.
Quality Assurance
TrakMotive identifies this CV axle shaft as a premium-grade replacement and states that its products are backed by a limited lifetime warranty. The brand also notes ISO 9001:2008 and TS 16949:2009 certification, reflecting controlled manufacturing and quality management practices.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2006 | Lexus | LS430 | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2005 | Lexus | LS430 | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2004 | Lexus | LS430 | Rear Left | 6 Speed; CV Axle Shaft |
