TrakMotivePart #: TO-86111

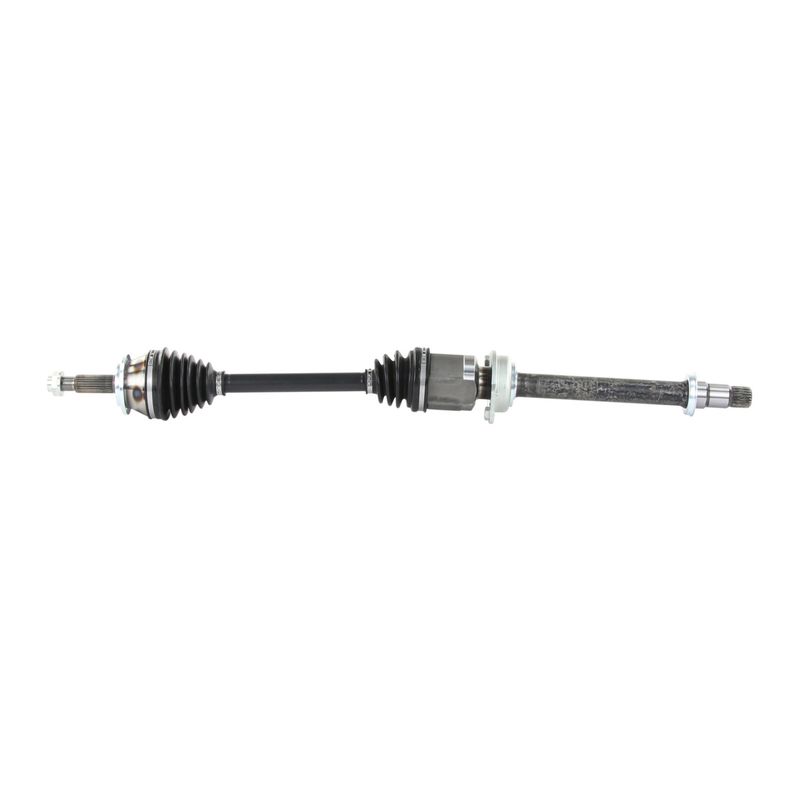

TrakMotive TO-86111 CV Axle Shaft - Front Right
7 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$158.06Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
CV Axle Shaft, Front Right
Fitment: Toyota, RAV4
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all CV Axle Shaft options
TrakMotive TO-86111 CV Axle Shaft - Front Right
| Brand | TrakMotive |
|---|---|
| Part Number | TO-86111 |
| Position | CV Axle Shaft, Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 13/16 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 7/16 |
| Axle Nut Length (mm) | 36.72 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Long+male |
| Inboard Shaft Connection Style | Spline |
| Number Of Inboard Splines | 24 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Boot Material | Neoprene |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 38 5/16 |
| Overall Compressed Length (mm) | 972.5 |
| Overall Extended Length (mm) | 1027 |
| Overall Extended Length(In) | 40 7/16 |
This part fits 7 vehicles. Search below:
| Year | Make | Model | Drive Type | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2012 | Toyota | RAV4 | FWD | GAS | Front Right | W/ Support Bracket; CV Axle Shaft |
| 2011 | Toyota | RAV4 | FWD | GAS | Front Right | W/ Support Bracket; CV Axle Shaft |
| 2010 | Toyota | RAV4 | FWD | GAS | Front Right | W/ Support Bracket; CV Axle Shaft |
| 2009 | Toyota | RAV4 | FWD | GAS | Front Right | W/ Support Bracket; CV Axle Shaft |
| 2008 | Toyota | RAV4 | FWD | GAS | Front Right | W/ Support Bracket; CV Axle Shaft |
| 2007 | Toyota | RAV4 | FWD | GAS | Front Right | W/ Support Bracket; CV Axle Shaft |
| 2006 | Toyota | RAV4 | FWD | GAS | Front Right | W/ Support Bracket; CV Axle Shaft |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
TO-8-8760TO-86111
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
