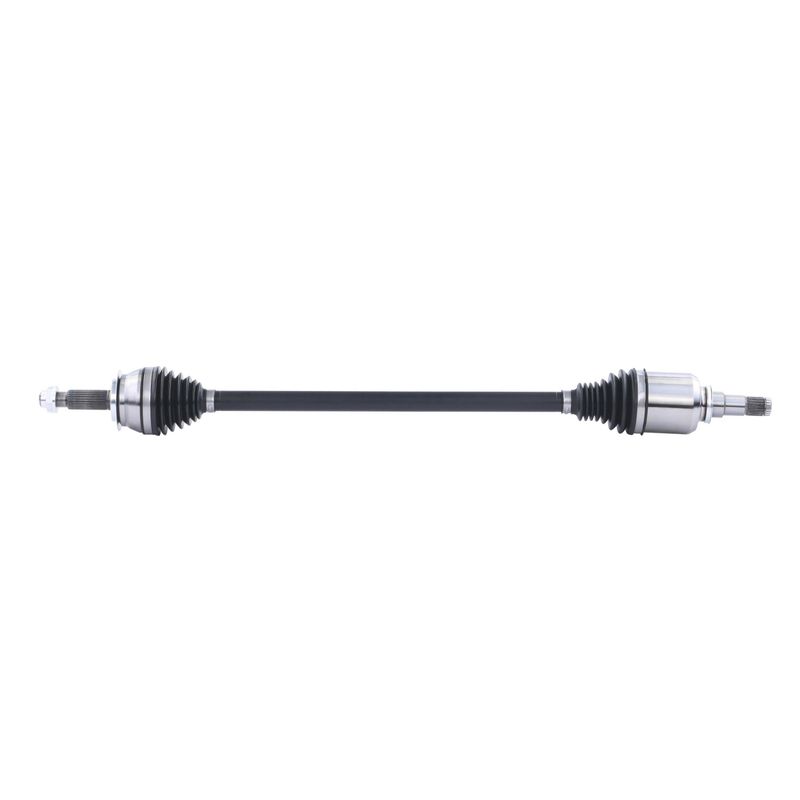

TrakMotive TO-86119 CV Axle Shaft - Front Right
OE Quality 60-Day Returns
TrakMotive
 AAR CV Axle Shaft

TrakMotive TO-86119 CV Axle Shaft - Front Right

Brand TrakMotive TO-86119
Position Front Right
ABS Ring Tooth Count 0
ABS Tone Ring Included No
Axle Nut Head Type Hex
Axle Nut Height (in) .81
Axle Nut Height (mm) 20
Axle Nut Hex Size (in) 1.25
Axle Nut Hex Size (mm) 32
Axle Nut Included Yes
Axle Nut Length (in) 1.44
Axle Nut Length (mm) 37
Axle Nut Locking Type Stake
Axle Nut Thread Size M22x1.5
Inboard Joint Type Male
Inboard Shaft Connection Style Spline
Number Of Bolt Holes 0
Number Of Inboard Joint Bolt Holes 0
Number Of Inboard Shaft Bolts 0
Number Of Inboard Splines 20
Number Of Outboard Joint Bolt Holes 0
Number Of Outboard Shaft Bolts 0
Number Of Outboard Splines 26
Outboard Joint Type Conventional
Outboard Shaft Connection Style Spline
Overall Compressed Length (in) 36.875
Overall Compressed Length (mm) 936
Overall Extended Length (In) 38.88
Overall Extended Length (mm) 988
Product line AAR CV Axle Shaft
Fits Toyota · 5 vehicles

OE-style replacement. Application-specific CV axle shaft for the listed driveline setup.

Non-ABS design. Built without an ABS tone ring for the correct axle configuration.

Included axle nut. Stake-lock nut with M22x1.5 threads and a 32 mm hex size.

Cross-references TrakMotive TO-86119 for the same application. See all 1.

$118.35Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $118.35
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all CV Axle Shaft options

Overview

TrakMotive TO-86119 is an AAR CV axle shaft for the front right position on select Toyota Corolla applications. It is built for non-ABS use and includes a stake-lock axle nut with a 32 mm hex size for a direct replacement-style service part.

Key Features

  • Fits 2020-2024 Toyota Corolla, front right.
  • AAR CV axle shaft construction for the specified application.
  • Non-ABS configuration with no ABS tone ring included.
  • Male inboard joint with spline connection for proper driveline engagement.
  • Conventional outboard joint design with spline connection.
  • Includes axle nut with M22x1.5 thread and stake locking type.

Detailed Description

This TrakMotive CV axle shaft, part number TO-86119, is engineered for Toyota Corolla models built for the front right position from 2020 through 2024. The axle uses a 20-spline inboard connection and a 26-spline outboard connection, along with a compressed length of 36.875 inches and an extended length of 38.88 inches to match the listed application. TO-86119 is intended for non-ABS setups, and the included axle nut uses a 1.25-inch hex size with M22x1.5 threads.

The AAR CV Axle Shaft line focuses on application-specific driveline replacement parts. For buyers searching for a Toyota Corolla front right CV axle shaft, TO-86119 provides the fitment and connection details needed to match the original driveline layout. This part cross-references TrakMotive TO-86119 for the same application.

What It Is Used For

  • Replacing a worn or noisy CV axle shaft.
  • Restoring smooth power transfer through the driveline.
  • Addressing vibration caused by spline or joint wear.
  • Correcting fitment issues on non-ABS axle applications.
  • Servicing a damaged axle nut or threaded connection point.

Installation Notes and Tips

Verify the vehicle is a non-ABS application before ordering. Confirm the front right position, spline counts, and axle length against the original part before installation. The axle nut is included and uses a stake-lock design with a 32 mm hex size.

Quality Assurance

TrakMotive lists a limited lifetime warranty for this part. The manufacturer also states ISO 9001:2008 and TS 16949:2009 certification.

Related reading

This part fits 5 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelBody TypeLitersCylindersPositionNotes
2024ToyotaCorollaSedan1.8LL4Front RightJapan Built; AAR CV Axle Shaft
2023ToyotaCorollaSedan1.8LL4Front RightJapan Built; AAR CV Axle Shaft
2022ToyotaCorollaSedan1.8LL4Front RightJapan Built; AAR CV Axle Shaft
2021ToyotaCorollaSedan1.8LL4Front RightJapan Built; AAR CV Axle Shaft
2020ToyotaCorollaSedan1.8LL4Front RightJapan Built; AAR CV Axle Shaft
Directly replaces or cross-references 1 part number
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
TrakMotive — TO-86119
