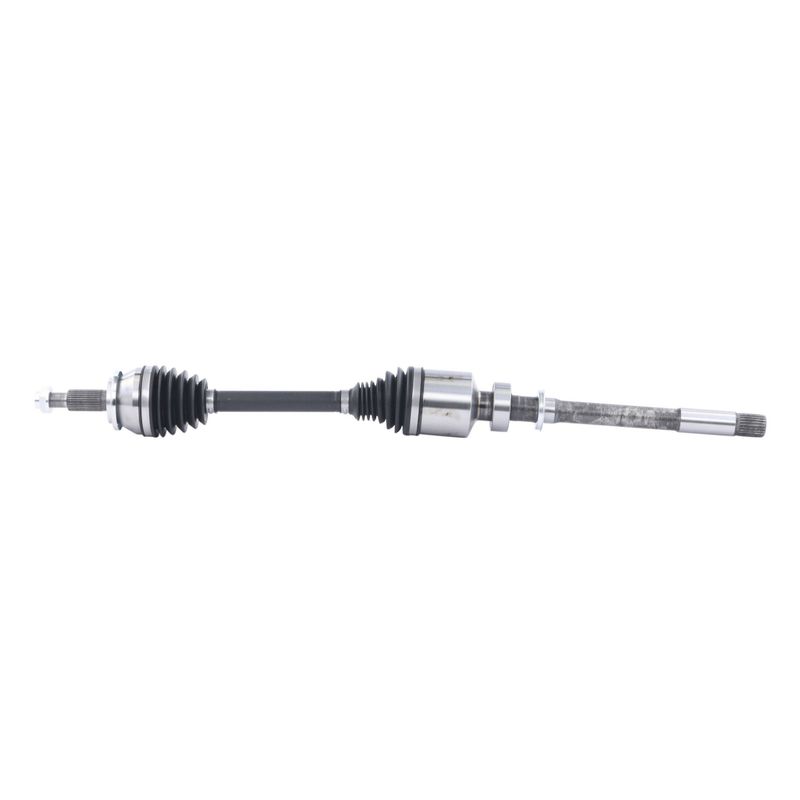

TrakMotive TO-86120 CV Axle Shaft - Front Right
| Brand | TrakMotive TO-86120 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .81 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22x1.5 |
| Inboard Joint Type | Long-male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 24 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 37.625 |
| Overall Compressed Length (mm) | 956 |
| Overall Extended Length (In) | 39.75 |
| Overall Extended Length (mm) | 1010 |
| Product line | AAR CV Axle Shaft |
| Fits | Toyota · 3 vehicles |
OE-style AAR design. Built for direct replacement service with spline connections and conventional joint construction.
Axle nut included. Features M22x1.5 threads, a 32 mm hex, and stake locking for secure fitment.
Certified manufacturing. Produced by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive TO-86120 for the same application. See all 1.
Product Overview
The TrakMotive TO-86120 is an AAR CV axle shaft built for direct replacement service on select Toyota applications. It is specified for the front right position and matches the OE AAR design used on the GR Corolla fitment listed below.
Fits 2023-2025 Toyota GR Corolla, front right.
Key Features
- AAR CV axle shaft construction for OE-style driveline service.
- ABS tone ring not included, with 0 ABS ring tooth count for non-ABS applications unless otherwise noted.
- Includes axle nut with M22x1.5 thread, 32 mm hex size, and stake locking type.
- Long-male inboard joint with spline connection for precise engagement.
- Conventional outboard joint design with 24 inboard splines and 30 outboard splines.
- Overall compressed length of 37.625 in and extended length of 39.75 in.
Detailed Description
TrakMotive TO-86120 is a CV axle shaft engineered for the Toyota GR Corolla front right application listed in the fitment data. The axle follows an OE AAR design and uses spline connections at both ends, with a long-male inboard joint and a conventional outboard joint for proper driveline engagement. The included axle nut is specified with a hex head, stake locking type, and M22x1.5 thread size. TO-86120 is also identified by part number TO-86120 for catalog and cross-reference use.
This part cross-references TrakMotive TO-86120 for the same application.
What It Is Used For
- Replacing a worn or damaged CV axle shaft.
- Restoring smooth torque transfer through the driveline.
- Addressing clicking, vibration, or binding related to axle wear.
- Correcting spline engagement issues at the axle connection points.
- Supporting OE-style service on the front right driveline position.
Installation Notes and Tips
Verify fitment by year, make, model, and position before installation. Confirm the axle nut thread size, hex size, and locking style match the vehicle specification. This axle is listed for non-ABS applications unless otherwise noted, and the ABS tone ring is not included. Use the OE AAR design reference and part number TO-86120 to confirm application details during service.
Quality Assurance
TrakMotive identifies this axle under its AAR CV Axle Shaft line and states a limited lifetime warranty. The product is manufactured by an ISO 9001:2008 and TS 16949:2009 certified company.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2025 | Toyota | GR Corolla | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2024 | Toyota | GR Corolla | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2023 | Toyota | GR Corolla | Front Right | OE AAR design; AAR CV Axle Shaft |
