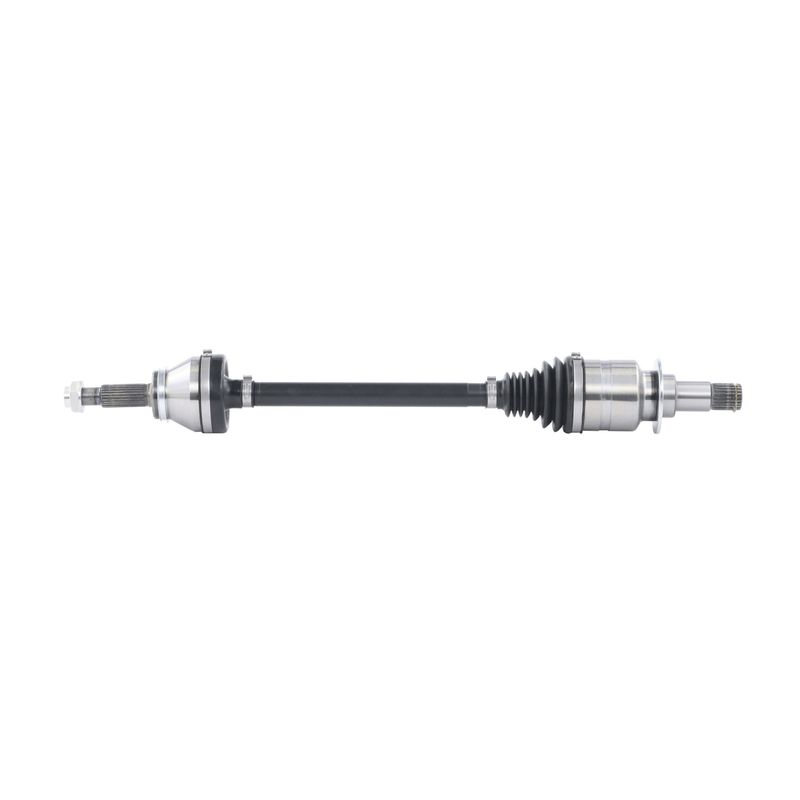

TrakMotive TO-86127 CV Axle Shaft - Rear
| Brand | TrakMotive TO-86127 |
|---|---|
| Position | Rear |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.81 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22x1.5 |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Inboard Splines | 24 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 28.88 |
| Overall Compressed Length (mm) | 733 |
| Overall Extended Length (In) | 30.75 |
| Overall Extended Length (mm) | 781 |
| Product line | CV Axle Shaft |
| Fits | Lexus, Subaru, and Toyota · 3 vehicles |
OE-style replacement. Rear CV axle shaft for the listed applications with spline connections and supplied axle nut.
Thermoplastic boots. Inboard and outboard joint boots are built from thermoplastic for the specified driveline setup.
Quality-certified manufacturing. Produced under ISO 9001:2008 and TS 16949:2009 certified quality systems.
Cross-references TrakMotive TO-86127 for the same application. See all 1.
CV axle shaft for rear driveline service
The TrakMotive TO-86127 CV axle shaft is a rear driveline replacement built for 2023 electric crossover applications. It uses spline connections, thermoplastic boots, and a supplied axle nut to support a direct service replacement for the specified fitments.
Key features
- Fits 2023 Lexus RZ450e, rear.
- Fits 2023 Subaru Solterra, rear.
- Fits 2023 Toyota bZ4X, rear.
- 24 inboard splines and 26 outboard splines for the listed applications.
- Thermoplastic inboard and outboard joint boots.
- Includes an axle nut with M22x1.5 thread, 32 mm hex size, and stake locking type.
- Overall compressed length: 28.88 in; overall extended length: 30.75 in.
Detailed description
TrakMotive TO-86127 is a CV axle shaft for rear installation on the listed 2023 Lexus RZ450e, Subaru Solterra, and Toyota bZ4X applications. The axle uses a male inboard joint, a conventional outboard joint, and spline-style shaft connections to match the specified driveline layout. It is identified for standard duty replacement use and is built without an ABS tone ring, which aligns with non-ABS applications unless otherwise noted by the vehicle listing. TO-86127 is a practical replacement choice when servicing rear axle wear, joint noise, or driveline vibration on these models.
What this part is used for
- Replacing a worn rear CV axle shaft.
- Addressing clicking or binding from CV joint wear.
- Correcting vibration caused by axle shaft damage or imbalance.
- Restoring driveline connection after boot or joint failure.
Installation notes and quality
Verify spline count, axle length, and rear fitment before installation. Confirm the axle nut specification matches the vehicle requirements and follow the proper staking procedure during assembly. TrakMotive lists a limited lifetime warranty for this part, and the company states that its products are manufactured under ISO 9001:2008 and TS 16949:2009 certified quality systems. TO-86127 is also referenced as TO-86127 for interchange lookup.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2023 | Lexus | RZ450e | Rear | Standard Duty Replacement; CV Axle Shaft |
| 2023 | Subaru | Solterra | Rear | Standard Duty Replacement; CV Axle Shaft |
| 2023 | Toyota | bZ4X | Rear | Standard Duty Replacement; CV Axle Shaft |
