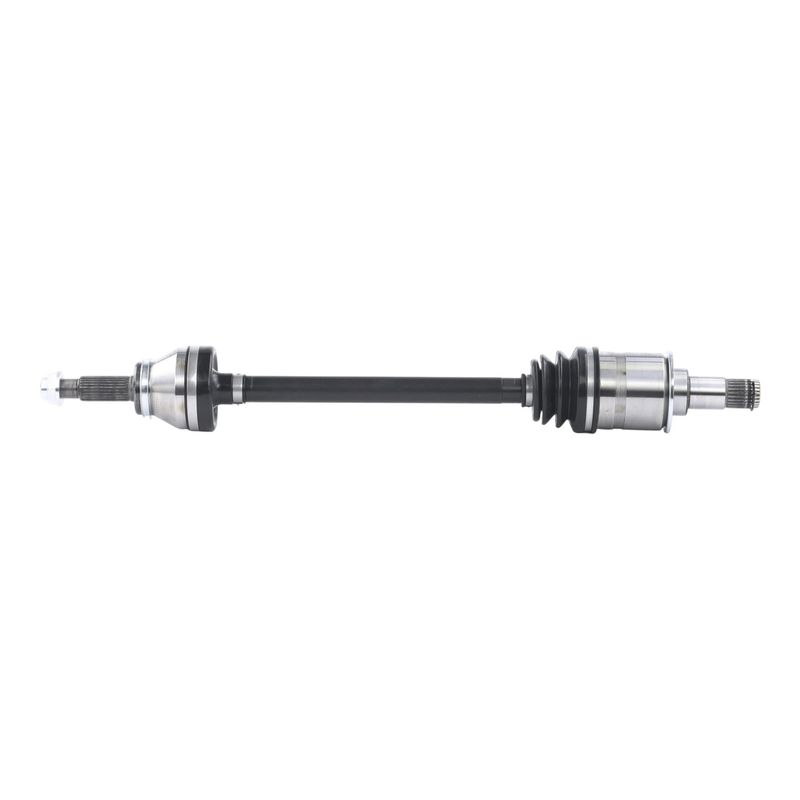

TrakMotive TO-86133 CV Axle Shaft - Rear
| Brand | TrakMotive TO-86133 |
|---|---|
| Position | Rear |
| ABS Tone Ring Included | No |
| ABS Tone Ring Tooth Quantity | 0 |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.81 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 37 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Inboard Splines | 24 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Boot Material | Neoprene |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 28.56 |
| Overall Compressed Length (mm) | 726 |
| Overall Extended Length (in) | 30.75 |
| Overall Extended Length (mm) | 782 |
| Product line | AAR CV Axle Shaft |
| Fits | Lexus, Subaru, and Toyota · 3 vehicles |
OE AAR design. Built for application-specific driveline replacement.
Premium-grade construction. Uses neoprene boots and a conventional joint layout.
Included axle nut. Features M22x1.5 threads and a stake-lock design.
Cross-references TrakMotive TO-86133 for the same application. See all 1.
Overview
TrakMotive TO-86133 is an AAR CV axle shaft built for rear applications that require the OE AAR design. It is listed for 2023 Lexus RZ450e, 2023 Subaru Solterra, and 2023 Toyota bZ4X rear fitments.
This CV axle shaft uses a premium-grade construction with neoprene boots, a conventional outboard joint, and a male inboard joint with spline connection. The included axle nut and non-ABS configuration details help simplify parts matching for the correct application.
Key Features
- OE AAR design for direct application matching.
- Premium-grade CV axle shaft construction.
- Neoprene boot material on both joints.
- Includes axle nut with M22x1.5 thread size.
- Non-ABS axle configuration with no tone ring included.
Detailed Description
TrakMotive TO-86133 is a rear CV axle shaft for 2023 Lexus RZ450e, 2023 Subaru Solterra, and 2023 Toyota bZ4X applications. The shaft measures 28.56 inches compressed and 30.75 inches extended, with 24 inboard splines and 26 outboard splines for the specified OE AAR design. The axle nut uses a 32 mm hex size, stake locking type, and M22x1.5 thread specification.
The AAR CV Axle Shaft line is positioned as a premium replacement option within TrakMotive's driveline and axle catalog. For buyers searching for a Toyota bZ4X rear CV axle shaft, Subaru Solterra rear axle shaft, or Lexus RZ450e rear CV axle shaft, TO-86133 provides the listed OE-style fitment and component details in one part number.
This part cross-references TrakMotive TO-86133 for the same application.
Common Uses
- Replacing a worn or noisy rear CV axle shaft.
- Addressing vibration during acceleration or deceleration.
- Restoring driveline operation after boot or joint wear.
- Correcting axle fitment issues on OE AAR-design applications.
Installation Notes
Verify rear fitment, ABS configuration, spline count, and axle nut specifications before installation. This axle is listed for non-ABS applications unless otherwise noted, and the included axle nut should be matched to the vehicle's service requirements. Confirm compressed and extended length against the original part before assembly.
Quality Assurance
TrakMotive lists this axle shaft with a limited lifetime warranty. The manufacturer also states ISO 9001:2008 and TS 16949:2009 certification, reflecting controlled production and quality management standards.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2023 | Lexus | RZ450e | — | Rear | OE AAR design; AAR CV Axle Shaft |
| 2023 | Subaru | Solterra | — | Rear | OE AAR design; AAR CV Axle Shaft |
| 2023 | Toyota | bZ4X | AWD | Rear | OE AAR design; AAR CV Axle Shaft |
