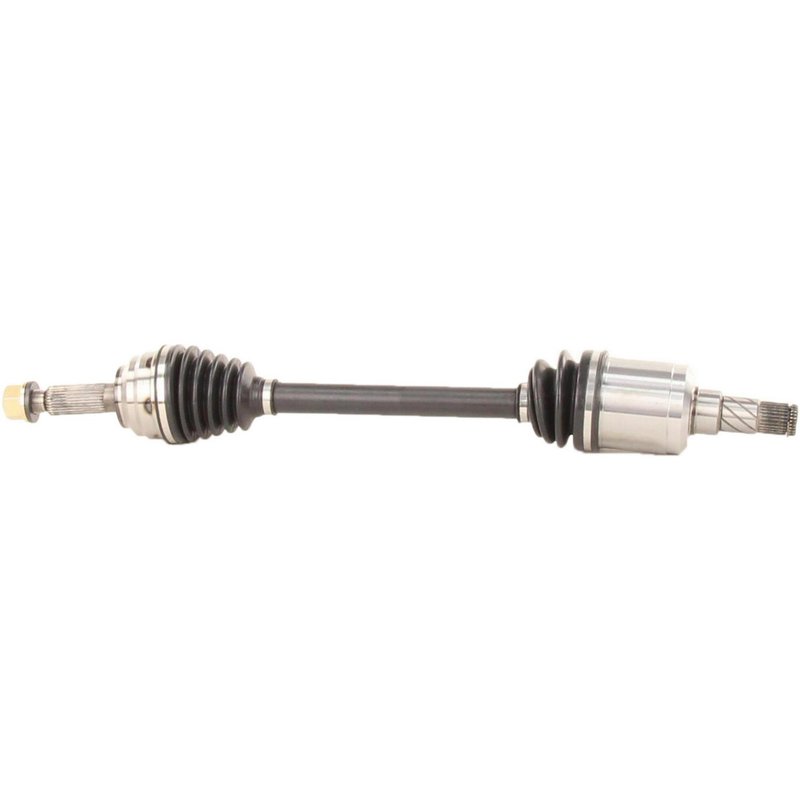

TrakMotive TS-8001 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft TS-8001 for Tesla Model S

The TrakMotive CV Axle Shaft TS-8001 is designed specifically for Tesla Model S vehicles, providing reliable driveline performance. This new CV axle shaft ensures proper power transfer and smooth operation for your electric vehicle's drivetrain.

• Compatible with Tesla Model S
• New CV Axle Shaft from TrakMotive's CV Axle Shaft product line
• Includes axle nut with cotter pin locking mechanism
• Neoprene boot material for durability and protection
• Hex axle nut head type with 1 1/4 inch (31.8 mm) hex size
• Overall compressed length of 30.43 inches (773 mm)
• Inboard joint type: Male with 29 splines
• Outboard joint type: Conventional with 30 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise fit and reliable driveline components for various vehicle applications. The TS-8001 model is engineered to meet the specific requirements of the Tesla Model S, featuring a neoprene boot for enhanced protection and a cotter pin locking axle nut to maintain secure installation. This product line emphasizes quality materials and accurate specifications to ensure compatibility and performance.

Technical Specifications and Features

The TS-8001 CV axle shaft includes a hex head axle nut measuring 1 1/4 inches (31.8 mm) across flats, with a height of 1 inch (23.6 mm) and length of 1 1/3 inches (34.4 mm). The axle nut thread size is M24 x 1.5, secured with a cotter pin locking type to prevent loosening during operation. The neoprene boot material offers resistance to wear and environmental factors, protecting the joint from contaminants. The inboard joint is a male type with 29 splines, while the outboard joint is conventional with 30 splines, ensuring proper connection and torque transfer. The overall compressed length of the axle shaft is 30.43 inches (773 mm), matching Tesla Model S specifications.

Common Applications and Problem Resolution

• Replacement of worn or damaged CV axle shafts on Tesla Model S
• Elimination of clicking or popping noises during turns
• Resolution of vibration issues related to driveline components
• Fixing grease leaks caused by torn or damaged boots
• Restoring proper torque transfer and drivetrain stability

Installation Notes and Tips

When installing the TrakMotive TS-8001 CV Axle Shaft on a Tesla Model S, ensure the axle nut is torqued to manufacturer specifications and secured with the included cotter pin to prevent loosening. Inspect the neoprene boot for any damage before installation and verify spline alignment on both inboard and outboard joints. Proper lubrication of the joints is recommended to maintain smooth operation and extend service life.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component from TrakMotive, designed to meet OEM standards for fit and function. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure durability and reliability in driveline applications.
