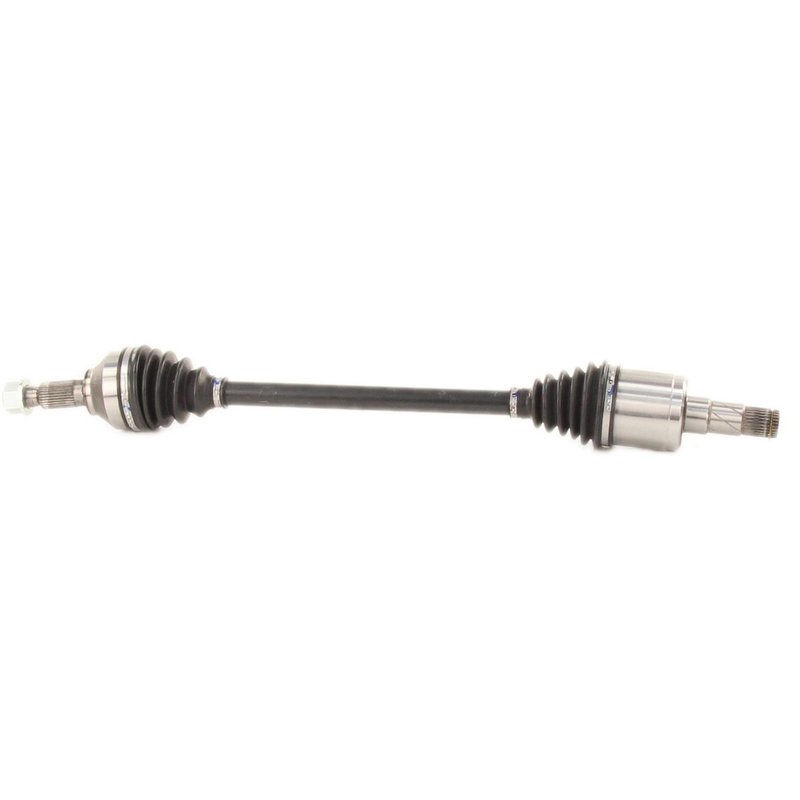

TrakMotive TS-8007 CV Axle Shaft - Front Left or Front Right
| Brand | TrakMotive TS-8007 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.93 |
| Axle Nut Height (mm) | 23.6 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.45 |
| Axle Nut Length (mm) | 36.72 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 29 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 31.65 |
| Overall Compressed Length (mm) | 804 |
| Product line | AAR CV Axle Shaft |
| Fits | Tesla · 12 vehicles |
New axle shaft. Fresh replacement part with a neoprene boot for dependable joint protection.
Spline connections. Male inboard and conventional outboard joints for secure driveline engagement.
OE-style fit. Includes axle nut and ABS tone ring is not included.
Cross-references TrakMotive TS-8007 and 104411900D for the same application. See all 2.
TrakMotive TS-8007 AAR CV Axle Shaft
The TrakMotive TS-8007 is a new AAR CV axle shaft for front-drive Tesla 3 applications. It is built with a neoprene boot, spline-style shaft connections, and an included axle nut for a direct replacement approach on the specified front positions.
Key Features
- Brand: TrakMotive AAR CV Axle Shaft
- Part number: TS-8007
- New axle shaft construction
- Neoprene boot material
- Inboard joint type: male
- Inboard shaft connection: spline
- Outboard joint type: conventional
- Outboard shaft connection: spline
- Axle nut included with cotter pin locking type
- Overall compressed length: 31.65 in. (804 mm)
Detailed Description
TrakMotive TS-8007 is an AAR CV axle shaft engineered for Tesla 3 front applications, including 2017-2020 Tesla 3 front left and front right updated-design vehicles, 2021 Tesla 3 front left and front right, and 2022-2023 Tesla 3 front OE AAR design applications. The axle uses a 29-spline inboard connection and 30-spline outboard connection, with a 1.25 in. hex axle nut and M24 x 1.5 thread size. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
The TrakMotive AAR CV Axle Shaft line focuses on direct-fit driveline replacement parts for specific vehicle applications. For Tesla 3 front axle service, TS-8007 provides the correct shaft length, spline count, and joint configuration needed for the listed fitments.
What It Helps Address
- Clicking or popping from a worn front CV joint
- Vibration during acceleration from a damaged axle shaft
- Boot wear that has led to grease loss and joint contamination
- Noise from excessive play in the front driveline
- Replacement needs after axle shaft damage or spline wear
Installation Notes and Tips
Verify front left or front right fitment against the vehicle’s build details before installation. Confirm the axle nut thread size, hex size, and overall compressed length match the original part. ABS tone ring is not included, and ABS axles fit non-ABS applications unless otherwise noted by the vehicle listing.
- Fits 2017-2020 Tesla 3, front left, updated design; AAR CV Axle Shaft
- Fits 2017-2020 Tesla 3, front right, updated design; AAR CV Axle Shaft
- Fits 2021 Tesla 3, front left; AAR CV Axle Shaft
- Fits 2021 Tesla 3, front right; AAR CV Axle Shaft
- Fits 2022-2023 Tesla 3, front; OE AAR design; AAR CV Axle Shaft
Quality Assurance
TrakMotive lists this axle shaft as a new part and backs it with a limited lifetime warranty. The manufacturer also states ISO 9001:1007 and TS 16949:2009 certification for its quality management system.
| Year | Make | Model | Fuel Type | Position | Notes |
|---|---|---|---|---|---|
| 2023 | Tesla | 3 | BATTERY EV (EV/BEV) | Front | OE AAR design; AAR CV Axle Shaft |
| 2022 | Tesla | 3 | BATTERY EV (EV/BEV) | Front | OE AAR design; AAR CV Axle Shaft |
| 2021 | Tesla | 3 | — | Front Right | AAR CV Axle Shaft |
| 2021 | Tesla | 3 | — | Front Left | AAR CV Axle Shaft |
| 2020 | Tesla | 3 | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2020 | Tesla | 3 | — | Front Left | Updated Design; AAR CV Axle Shaft |
| 2019 | Tesla | 3 | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2019 | Tesla | 3 | — | Front Left | Updated Design; AAR CV Axle Shaft |
| 2018 | Tesla | 3 | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2018 | Tesla | 3 | — | Front Left | Updated Design; AAR CV Axle Shaft |
| 2017 | Tesla | 3 | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2017 | Tesla | 3 | — | Front Left | Updated Design; AAR CV Axle Shaft |
