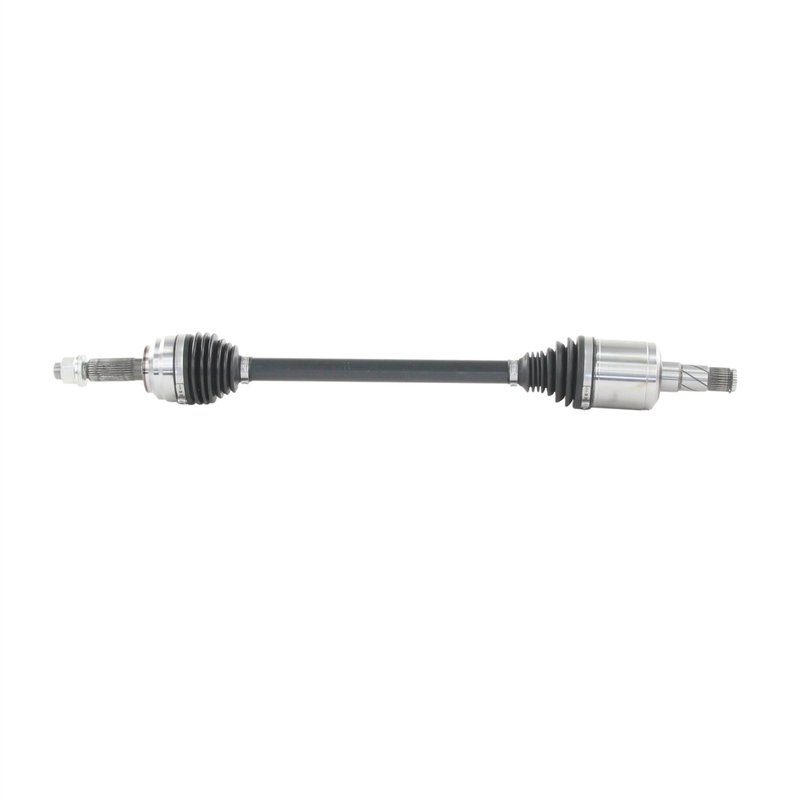

TrakMotive TS-86002 CV Axle Shaft - Front Left
| Brand | TrakMotive TS-86002 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 24 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 29 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 33 |
| Overall Compressed Length (mm) | 838 |
| Overall Extended Length (in) | 35.56 |
| Overall Extended Length (mm) | 903 |
| Product line | AAR CV Axle Shaft |
| Fits | Tesla · 5 vehicles |
Premium grade. Built as a CV axle shaft for dependable driveline replacement.
ABS tone ring omitted. Fits non-ABS applications unless otherwise noted.
ISO certified manufacturing. Made by a company certified to ISO 9001:2008 and TS 16949:2009.
Cross-references TrakMotive TS-86002 for the same application. See all 1.
Front Left CV Axle Shaft for Tesla X
The TrakMotive TS-86002 is a premium front left CV axle shaft for the 2019-2023 Tesla X. It is built for the 2nd Generation AAR CV axle shaft application and is a direct driveline replacement for the specified fitment.
- Fits 2019-2023 Tesla X, front left
- Premium-grade CV axle shaft for driveline service
- 29 inboard splines and 30 outboard splines
- Male inboard joint with conventional outboard joint type
- Overall compressed length: 838 mm (33 in)
- Overall extended length: 903 mm (35.56 in)
- Axle nut thread size: M24x1.5
- Axle nut hex/socket size: 32 mm
- ABS tone ring not included; ABS ring tooth count: 0
TrakMotive TS-86002 is engineered for the front left position on Tesla X models from 2019 through 2023. This AAR CV axle shaft application uses a 29-spline inboard connection and a 30-spline outboard connection, with dimensions that match the listed compressed and extended lengths for proper driveline geometry. If you are searching for a Tesla X front left CV axle shaft, TS-86002 is the exact part number to reference.
This part cross-references TrakMotive TS-86002 for the same application.
Common Replacement Symptoms
- Clicking or popping during turns from a worn CV joint
- Vibration under acceleration from axle wear or imbalance
- Grease leakage around the axle shaft area
- Clunking or driveline noise during load changes
- Failed axle splines or damaged joint engagement
Installation Notes
Verify front left fitment before installation and confirm axle nut thread size, hex size, and spline counts against the removed part. The manufacturer notes that ABS axles fit non-ABS applications unless otherwise noted, and this axle does not include an ABS tone ring. Follow vehicle service procedures for torque specifications and final inspection after installation.
Quality Assurance
TrakMotive lists this AAR CV axle shaft under a limited lifetime warranty and states that its manufacturing is supported by ISO 9001:2008 and TS 16949:2009 certification.
| Year | Make | Model | Fuel Type | Position | Notes |
|---|---|---|---|---|---|
| 2023 | Tesla | X | BATTERY EV (EV/BEV) | Front Left | 2nd Generation; AAR CV Axle Shaft |
| 2022 | Tesla | X | BATTERY EV (EV/BEV) | Front Left | 2nd Generation; AAR CV Axle Shaft |
| 2021 | Tesla | X | BATTERY EV (EV/BEV) | Front Left | 2nd Generation; AAR CV Axle Shaft |
| 2020 | Tesla | X | BATTERY EV (EV/BEV) | Front Left | 2nd Generation; AAR CV Axle Shaft |
| 2019 | Tesla | X | BATTERY EV (EV/BEV) | Front Left | 2nd Generation; AAR CV Axle Shaft |
